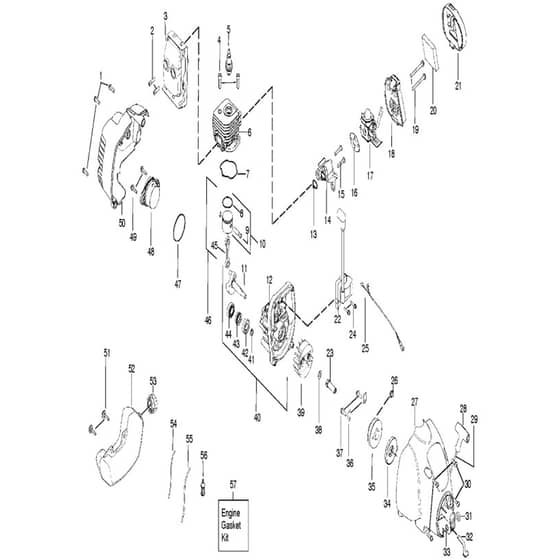

McCulloch TRIMMAC - 967256201 - 2014-01 - Engine Parts Diagram

Name: McCulloch TRIMMAC - 967256201 - 2014-01 - Engine Parts Diagram
SKU: trimmac_967256201_2014_01_engine-group
Price: 1.53 GBP
Availability: InStock

Part No. trimmac_967256201_2014_01_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch TRIMMAC - 967256201 - 2014-01 - Engine Parts Diagram

Description

McCulloch TRIMMAC - 967256201 - 2014-01 - Engine Parts Diagram

	Part No.	Details
1	HV530 01 58-86 Available to backorder	Screw	£2.05 £1.71
0	HV530 05 85-69 Available to backorder	Lever Not Shown	£6.29 £5.24
1	HV530 05 87-09 Available to backorder	Bulb Not Shown	£12.20 £10.17
2	HV530 05 89-82 Available to backorder	Bolt	£2.56 £2.13
4	HV530 01 59-53 Available to backorder	Screw	£2.56 £2.13
5	9411 In stock	Spark Plug Rcj-6Y	£3.24 £2.70
6	HV530 01 25-41 Available to backorder	Cylinder	£52.56 £43.80
8	HV545 15 40-01 Available to backorder	Piston Ring	£7.12 £5.93
9	HV530 01 51-62 Available to backorder	Circlip	£2.30 £1.92
10	HV530 07 18-33 Available to backorder	Kit Piston (8+9)	£30.43 £25.36
12	HV530 01 25-82 Available to backorder	Crankcase (42+43+44)	£64.08 £53.40
13	HV530 07 17-50 Available to backorder	Gasket Kit	£21.78 £18.15
14	HV530 05 75-47 Available to backorder	Adapter	£15.38 £12.82
18	HV580 73 10-02 Available to backorder	Filter Housing	£12.18 £10.15
19	HV530 01 64-29 Available to backorder	Screw	£3.07 £2.56
20	HV530 05 77-81 Available to backorder	Air Filter	£7.93 £6.61
21	HV530 05 75-84 Available to backorder	Cover	£19.21 £16.01
22	HV545 21 58-01 Available to backorder	Ignition Module	£51.25 £42.71
23	HV530 03 86-04 Available to backorder	Drive Coupling	£12.84 £10.70
27	HV580 73 02-01 Available to backorder	Housing	£29.03 £24.19
28	HV530 02 75-69 Available to backorder	Starter Handle	£5.84 £4.87
29	HV530 07 17-67 Available to backorder	Kit	£4.82 £4.02
30	HV530 01 63-86 Available to backorder	Screw	£1.84 £1.53
34	HV545 00 80-10 Available to backorder	Return Spring	£17.48 £14.57
35	HV530 07 17-86 Available to backorder	Kit	£25.30 £21.08
36	HV530 02 75-23 Available to backorder	Retainer	£4.80 £4.00
37	HV530 01 57-75 Available to backorder	Screw	£2.30 £1.92
39	HV545 22 17-01 Available to backorder	Flywheel Assy	£61.44 £51.20
40	HV530 07 17-68 Available to backorder	Assembly (11+12+41)	£61.20 £51.00
43	HV530 01 92-64 Available to backorder	Seal	£6.12 £5.10
44	HV530 03 21-25 Available to backorder	Bearing	£11.16 £9.30
45	HV530 04 98-17 Available to backorder	Connecting Rod	£22.69 £18.91
48	HV530 05 79-54 Available to backorder	Plug (47)	£6.36 £5.30
51	HV530 01 64-45 Available to backorder	Screw Fuel Tank Retainer	£2.66 £2.22
52	HV574 71 96-01 Available to backorder	Assembly	£45.52 £37.93
53	HV530 01 43-47 In stock	Tank	£8.65 £7.21
54	HV530 06 92-47 In stock	Hose	£9.36 £7.80
55	HV530 06 92-16 In stock	Fuel Hose	£11.23 £9.36
56	HV530 09 56-46 In stock	Filter	£7.01 £5.84
