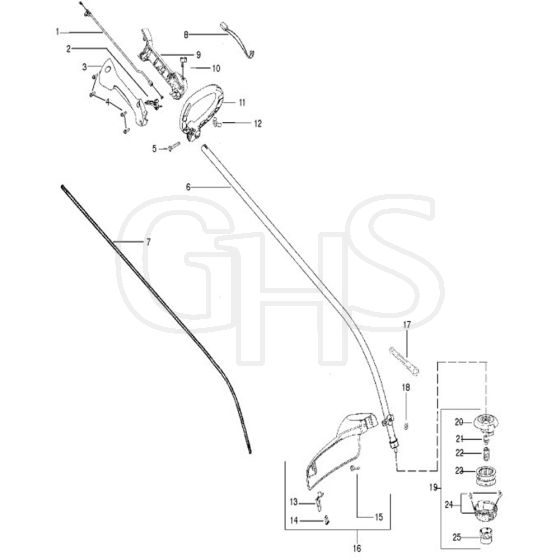

McCulloch TRIM MAC SL - TRIM MAC SL+ - 2010-07 - Shaft & Handle (4) Parts Diagram

Name: McCulloch TRIM MAC SL - TRIM MAC SL+ - 2010-07 - Shaft & Handle (4) Parts Diagram
SKU: trim_mac_sl_trim_mac_sl_2010_07_shaft_handle_4_-group
Price: 1.56 GBP
Availability: InStock

Part No. trim_mac_sl_trim_mac_sl_2010_07_shaft_handle_4_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch TRIM MAC SL - TRIM MAC SL+ - 2010-07 - Shaft & Handle (4) Parts Diagram

Description

McCulloch TRIM MAC SL - TRIM MAC SL+ - 2010-07 - Shaft & Handle (4) Parts Diagram

	Part No.	Details
1	HV530 05 79-91 Available to backorder	Assembly	£10.90 £9.08
3	HV530 05 75-82 Available to backorder	Throttle Hsg. (Right)	£14.10 £11.75
4	HV530 01 58-80 Available to backorder	Screw	£2.05 £1.71
5	HV530 01 58-21 Available to backorder	Screw	£3.71 £3.09
7	HV530 09 62-75 Available to backorder	Drive Shaft	£21.26 £17.72
8	HV530 05 41-83 Available to backorder	Assy Throttle Wire	£7.79 £6.49
9	HV530 05 99-52 Available to backorder	Handle	£17.94 £14.95
10	HV530 06 95-72 Available to backorder	Switch	£16.31 £13.59
11	HV530 07 17-47 Available to backorder	Handle Assy	£19.48 £16.23
12	HV530 09 13-73 Available to backorder	Wing Nut	£3.73 £3.11
13	HV530 05 22-86 Available to backorder	Line	£5.76 £4.80
15	HV530 01 58-20 Available to backorder	Screw	£3.59 £2.99
16	HV545 00 60-23 Available to backorder	Protection	£22.08 £18.40
17	HV530 05 64-01 Available to backorder	Wrench	£1.87 £1.56
18	HV530 01 51-97 Available to backorder	Nut	£2.00 £1.67
20	HV537 41 93-03 Available to backorder	Housing	£21.78 £18.15
22	HV537 33 88-01 Available to backorder	Spring	£4.57 £3.81
23	HV577 61 67-01 In stock	Spool	Was £19.98 £16.65 Special Price £14.39 £11.99
24	HV523 07 26-01 Available to backorder	Eyelet	£9.11 £7.59
25	HV537 41 96-01 Available to backorder	Knob	£8.34 £6.95
