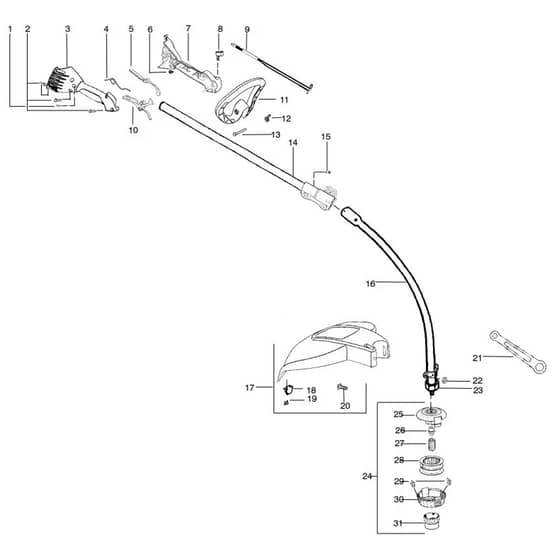

McCulloch TM 281 Plus - 2009-04 - Shaft & Handle (4) Parts Diagram

Name: McCulloch TM 281 Plus - 2009-04 - Shaft & Handle (4) Parts Diagram
SKU: tm_281_plus_2009_04_shaft_handle_4_-group
Price: 1.52 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch TM 281 Plus - 2009-04 - Shaft & Handle (4) Parts Diagram

Description

McCulloch TM 281 Plus - 2009-04 - Shaft & Handle (4) Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV530 01 58-86 Available to backorder	Screw	£2.06 £1.72
4	HV530 01 64-73 Available to backorder	Spring	£3.36 £2.80
5	HV545 01 76-01 Available to backorder	Lockout--Throttle	£7.12 £5.93
8	HV530 06 95-72 Available to backorder	Switch	£16.52 £13.77
9	HV530 05 88-43 Available to backorder	Assembly	£12.44 £10.37
10	HV545 01 77-01 Available to backorder	Assembly	£7.12 £5.93
12	HV530 09 13-73 Available to backorder	Wing Nut	£3.76 £3.13
14	HV575 26 08-01 Available to backorder	Kit	£121.84 £101.53
15	HV530 01 63-44 Available to backorder	Screw	£1.82 £1.52
16	HV576 02 83-02 Available to backorder	Kit	£60.40 £50.33
17	HV545 00 60-21 Available to backorder	Kit	£40.12 £33.43
18	HV530 05 22-86 Available to backorder	Line	£5.87 £4.89
19	HV530 01 58-14 Available to backorder	Screw	£2.06 £1.72
20	HV530 01 58-20 Available to backorder	Screw	£3.62 £3.02
21	HV530 05 64-01 Available to backorder	Wrench	£1.88 £1.57
22	HV530 01 51-97 Available to backorder	Nut	£2.46 £2.05
25	HV537 41 93-03 Available to backorder	Housing	£22.00 £18.33
27	HV537 33 88-01 Available to backorder	Spring	£4.54 £3.78
28	HV577 61 67-01 In stock	Spool	£19.98 £16.65
29	HV523 07 26-01 Available to backorder	Grommet	£11.00 £9.17
31	HV537 41 96-01 Available to backorder	Knob	£8.40 £7.00
