McCulloch T22 LS - 9666319-01 - 2012-01 - Starter Parts Diagram

Description

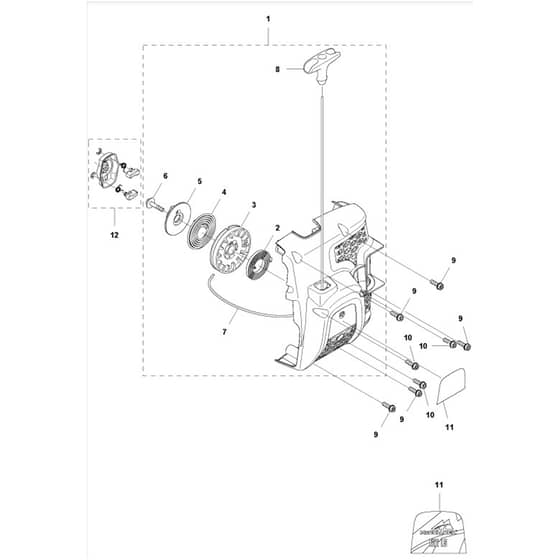

McCulloch T22 LS - 9666319-01 - 2012-01 - Starter Parts Diagram

	Part No.	Details
1	HV578 22 45-01 Available to backorder	Starter Assy	£59.70 £49.75
2	HV525 83 83-01 Available to backorder	Spring (1)	£3.78 £3.15
3	HV525 59 38-01 Available to backorder	Starter Pulley (1)	£12.32 £10.27
4	HV525 59 40-01 In stock	Spring (1)	£3.67 £3.06
5	HV525 59 39-01 Available to backorder	Driver (1)	£4.76 £3.97
6	HV577 22 61-03 Available to backorder	Screw Itxsct (1)	£2.30 £1.92
9	HV573 92 58-01 Available to backorder	Screw Itxscft	£1.61 £1.34
10	HV525 75 51-01 Available to backorder	Screw Itxscfm	£1.97 £1.64
12	HV503 87 33-05 In stock	Starter Pawl	£17.69 £14.74
