McCulloch SuperLite 4528 - 966693301 - Ignition System Parts Diagram

Description

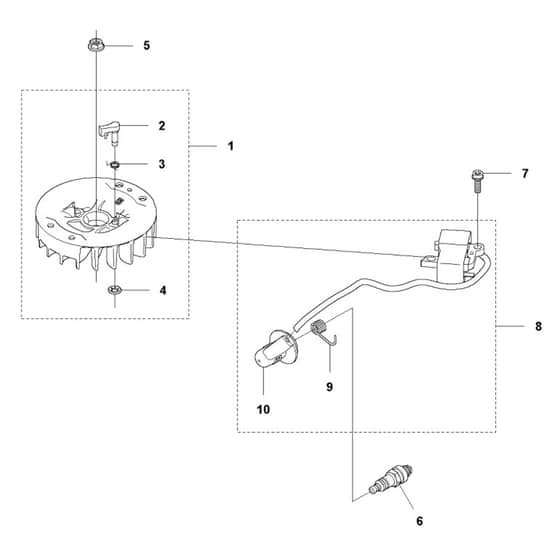

McCulloch SuperLite 4528 - 966693301 - Ignition System Parts Diagram

	Part No.	Details
1	HV525 73 95-01 Available to backorder	Flywheel Assy	£59.04 £49.20
2	HV525 63 71-01 Available to backorder	Starter Pawl (1)	£2.77 £2.31
3	HV573 95 15-01 In stock	Spring (1)	£2.65 £2.21
4	HV735 58 30-00 Available to backorder	Washer (1)	£2.30 £1.92
5	HV731 71 16-51 Available to backorder	Hexagon Nut Flange	£2.94 £2.45
6	HV590 71 02-01 In stock	Spark Plug	£5.64 £4.70
7	HV525 75 51-01 Available to backorder	Screw Itxscfm	£1.97 £1.64
8	HV585 07 40-02 Available to backorder	Ignition Module	£113.04 £94.20
9	HV501 48 54-02 Available to backorder	Contact Spring (8)	£8.54 £7.12
10	HV577 57 25-01 In stock	Spark Plug Cap (8)	£18.50 £15.42
