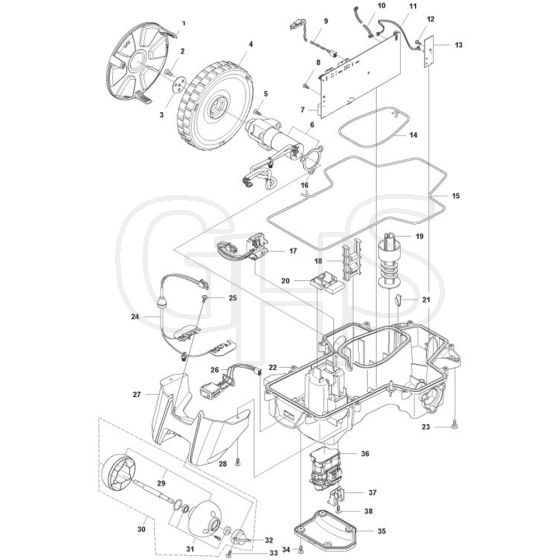

McCulloch ROB R - Chassis Lower Parts Diagram

Name: McCulloch ROB R - Chassis Lower Parts Diagram
SKU: rob_r_chassis_lower-group
Price: 0.73 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch ROB R - Chassis Lower Parts Diagram

Description

McCulloch ROB R - Chassis Lower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV576 21 39-02 Available to backorder	Screw Itxpanm Screw	£2.06 £1.72
3	HV577 09 32-01 Available to backorder	Washer + Drive Wheel	£6.46 £5.38
4	HV574 46 51-04 Available to backorder	Wheel + Drive	£36.04 £30.03
6	HV577 83 99-05 Available to backorder	Wheel Motor Assy Wheel Motor Kit Incl. Sealing	£182.16 £151.80
7	HV592 85 17-01 Available to backorder	Printed Circuit Assy Main Circuit Board (Mcb)	£223.20 £186.00
9	HV576 22 02-01 Available to backorder	Wiring Assy Loom+ Buzzer Extension	£11.93 £9.94
10	HV588 83 27-01 Available to backorder	Wiring Assy Loom+ Display	£25.88 £21.57
11	HV588 90 12-01 Available to backorder	Wiring Assy Loom+ Loop And Lift Sensor	£16.82 £14.02
12	HV535 13 03-10 Available to backorder	Screw Itxpant Screw (10 mm)	£1.28 £1.07
13	HV592 85 19-01 Available to backorder	Printed Circuit Assy Pcb Sensor Board	£56.96 £47.47
14	HV574 87 47-04 Available to backorder	Sealing Strip (1 Pcs+ Diam. 4 mm)	£2.20 £1.83
15	HV574 87 47-03 Available to backorder	Sealing Strip + Chassis (1 Pcs+ Diam. 4 mm)	£4.54 £3.78
16	HV574 37 37-01 Available to backorder	Gasket Sealing/+ Motor Flange	£4.66 £3.88
17	HV574 47 98-01 Available to backorder	Wiring Assy Loom+ Li-Ion Battery	£21.36 £17.80
19	HV574 48 46-01 Available to backorder	Screw Height Adjustment	£7.51 £6.26
21	HV577 10 32-01 Available to backorder	Locking Spring	£3.48 £2.90
22	HV577 84 62-03 Available to backorder	Chassis Lower Kit+ Incl. Sealing	£66.64 £55.53
23	HV590 74 02-01 Available to backorder	Screw	£0.88 £0.73
24	HV534 17 76-01 Available to backorder	Cable Assy Loom+ Charge Plate	£36.52 £30.43
25	HV575 54 33-14 In stock	Screw + Grey (14 mm)	£1.54 £1.28
26	HV579 70 87-01 Available to backorder	Wiring Assy Swith On/Off With Seal	£39.98 £33.32
27	HV574 46 72-02 Available to backorder	Housing + Rear Wheel	£35.58 £29.65
29	HV583 85 39-02 Available to backorder	Rear Wheel Kit	£22.00 £18.33
30	HV578 27 51-03 Available to backorder	Rear Wheel Kit Complete	£47.60 £39.67
31	HV578 27 52-01 Available to backorder	Bearing Kit Bearing (x2)+ Sealing (x2)+ O-Ring (x1)	£16.58 £13.82
34	HV574 45 01-01 Available to backorder	Screw Itxpant Screw	£1.82 £1.52
35	HV574 46 73-01 Available to backorder	Cover + Battery	£16.67 £13.89
36	HV589 58 61-01 Available to backorder	Battery + Lithium 18 V	£122.06 £101.72
37	HV582 38 61-01 Available to backorder	Bracket	£11.00 £9.17
