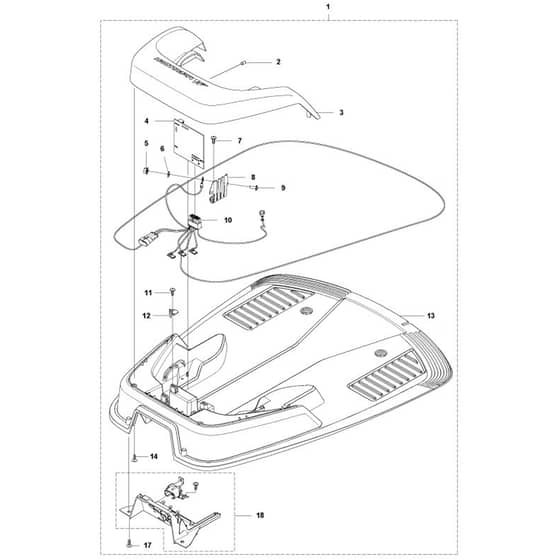

McCulloch ROB R - Charging Station Parts Diagram

Part No. rob_r_charging_station-group

Description

	Part No.	Details

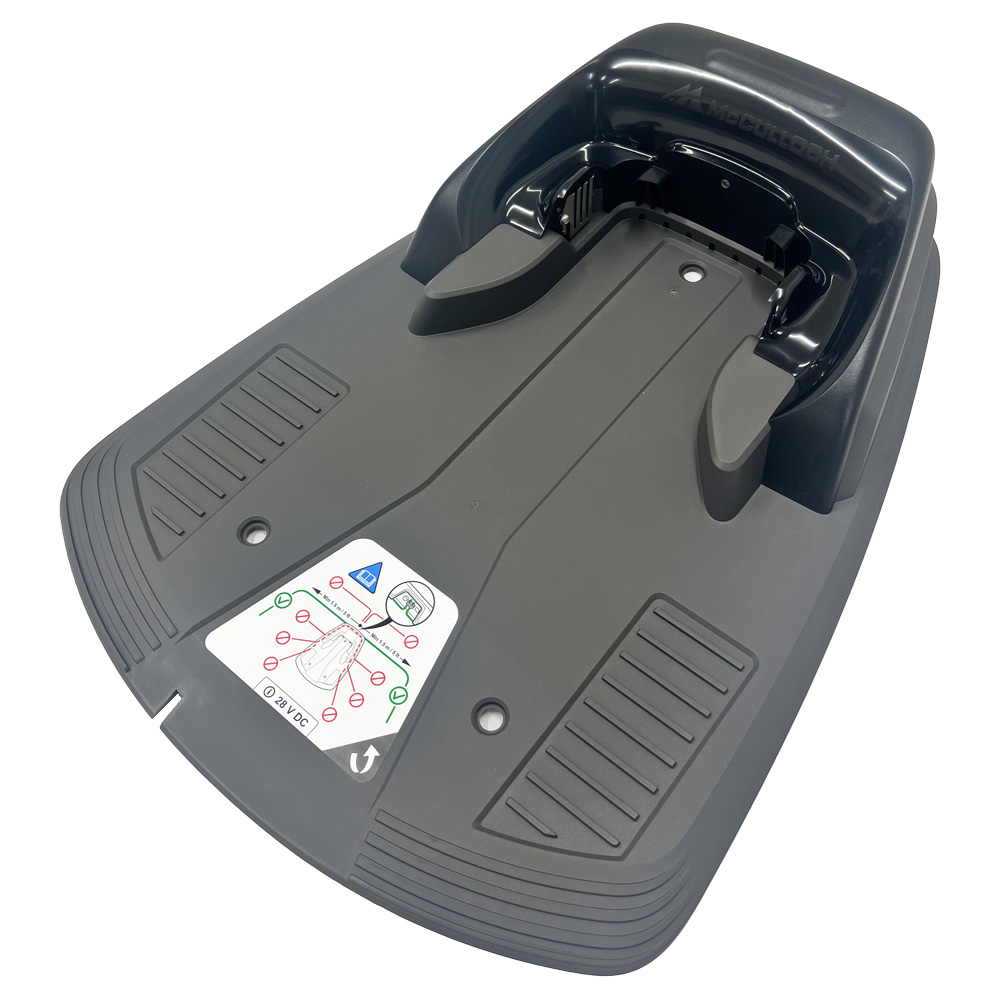

1	HV577 97 23-17 Available to backorder	Charging Station + Mcculloch	£291.00 £242.50
2	HV590 21 72-01 Available to backorder	Lens Diode	£6.02 £5.02
4	HV592 90 94-01 In stock	Printed Circuit Assy Circuit Board+ Charging Station	£111.48 £92.90
5	HV588 22 21-01 Available to backorder	Hexagon Nut Flange Nut Flange	£1.56 £1.30
6	HV535 08 74-01 Available to backorder	Washer	£2.30 £1.92
8	HV587 12 51-01 Available to backorder	Contact S+ Charging Station	£10.34 £8.62
9	HV588 22 22-01 Available to backorder	Screw Itxpanm Screw	£1.79 £1.49
10	HV582 38 10-01 Available to backorder	Cable Assy Loom+ Charging Station	£38.81 £32.34
11	HV575 54 33-14 In stock	Screw + Grey (14 mm)	£1.93 £1.61
12	HV535 12 79-01 Available to backorder	Bracket	£6.01 £5.01
13	HV581 55 19-03 Available to backorder	Charging Station Base Plate	£99.96 £83.30
18	HV582 35 64-01 Available to backorder	Panel Assy Guide Cover+ Charging Station	£57.23 £47.69
