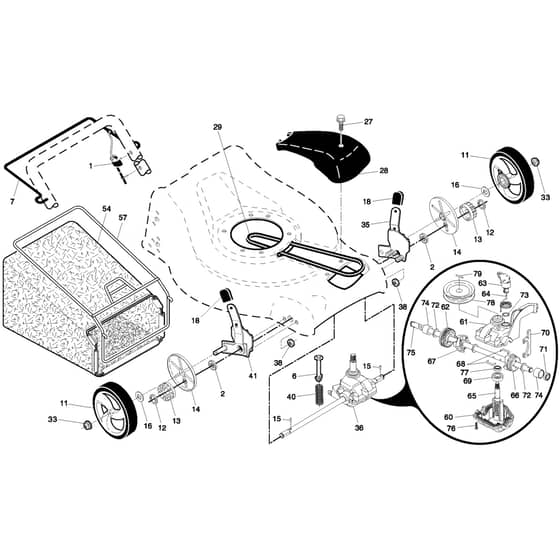

McCulloch PRE5553 - 96141009503 - 2008-09 - Drive Parts Diagram

Name: McCulloch PRE5553 - 96141009503 - 2008-09 - Drive Parts Diagram
SKU: pre5553_96141009503_2008_09_drive-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch PRE5553 - 96141009503 - 2008-09 - Drive Parts Diagram

Description

McCulloch PRE5553 - 96141009503 - 2008-09 - Drive Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV532 19 46-53 Available to backorder	Control	£28.54 £23.78
2	HV587 07 02-02 Available to backorder	Bearing	£18.92 £15.77
6	HV532 15 04-95 Available to backorder	Pin Retaining Screw	£4.08 £3.40
7	HV532 19 84-53 Available to backorder	Bar	£24.58 £20.48
11	HV583 71 95-01 Available to backorder	Wheel	£25.68 £21.40
12	HV812 00 00-58 Available to backorder	E-Clip	£0.77 £0.64
13	HV532 40 38-49 Available to backorder	Pinion	£10.06 £8.38
14	HV581 84 04-01 Available to backorder	Dust Cover	£9.72 £8.10
15	HV532 40 48-45 Available to backorder	Pawl Drive	£6.30 £5.25
16	HV532 06 77-25 Available to backorder	Washer	£9.06 £7.55
18	HV532 08 78-77 Available to backorder	Knob	£5.04 £4.20
27	HV532 17 52-62 Available to backorder	Screw	£2.34 £1.95
29	HV532 17 54-36 Available to backorder	V-Belt	£22.42 £18.68
33	HV532 40 91-48 Available to backorder	Nut	£3.48 £2.90
35	HV532 43 84-85 Available to backorder	Wheel Adj Kit Lh	£33.00 £27.50
38	HV586 66 89-01 Available to backorder	Nut	£2.98 £2.48
40	HV532 13 70-90 Available to backorder	Spring	£4.02 £3.35
54	HV532 41 06-67 Available to backorder	Grassbag	£64.56 £53.80
57	HV532 41 19-50 Available to backorder	Frame	£78.22 £65.18
60	HV532 18 34-97 Available to backorder	Case	£19.26 £16.05
61	HV532 18 34-98 Available to backorder	Housing	£35.96 £29.97
63	HV532 18 35-00 Available to backorder	Lever	£7.12 £5.93
64	HV532 18 35-01 Available to backorder	Spring	£4.78 £3.98
65	HV532 18 35-02 Available to backorder	Shaft	£49.78 £41.48
66	HV532 18 35-03 Available to backorder	Dog Movable	£10.48 £8.73
67	HV532 18 35-04 Available to backorder	Dog Fixed	£7.86 £6.55
68	HV532 18 35-05 Available to backorder	Wire Formed	£11.00 £9.17
71	HV532 18 35-08 Available to backorder	Seal Output Shaft	£7.86 £6.55
73	HV532 18 35-10 Available to backorder	Seal Case	£7.86 £6.55
74	HV532 18 35-11 Available to backorder	Bushing	£9.06 £7.55
