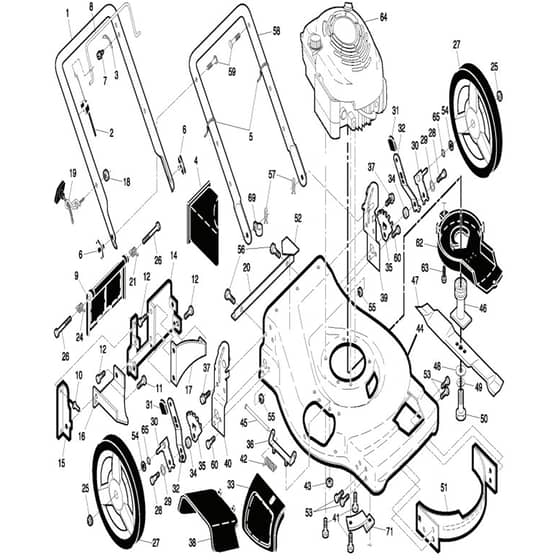

McCulloch PM6556 D - 96141011602 - 2007-04 - Frame Parts Diagram

Name: McCulloch PM6556 D - 96141011602 - 2007-04 - Frame Parts Diagram
SKU: pm6556_d_96141011602_2007_04_frame-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch PM6556 D - 96141011602 - 2007-04 - Frame Parts Diagram

Description

McCulloch PM6556 D - 96141011602 - 2007-04 - Frame Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 18 35-67 Available to backorder	Cable	£28.38 £23.65
3	HV532 85 07-33 Available to backorder	Plate	£6.08 £5.07
4	HV532 16 66-49 Available to backorder	Mulcher Plug	£35.54 £29.62
6	HV532 18 55-77 Available to backorder	Knob	£7.76 £6.47
7	HV532 75 06-34 Available to backorder	Screw	£1.56 £1.30
16	HV532 17 71-33 Available to backorder	Plate	£15.42 £12.85
18	HV532 05 06-75 Available to backorder	Nut	£2.34 £1.95
19	HV532 19 47-88 Available to backorder	Guide	£3.42 £2.85
25	HV532 40 91-49 Available to backorder	Nut	£4.68 £3.90
26	HV532 18 41-93 Available to backorder	Bolt	£7.76 £6.47
27	HV532 43 27-47 Available to backorder	Wheel	£33.24 £27.70
29	HV532 40 16-30 Available to backorder	Washer	£2.84 £2.37
31	HV532 70 10-37 Available to backorder	Knob	£5.82 £4.85
32	HV532 40 16-26 Available to backorder	Selector Spring	£9.72 £8.10
33	HV532 19 60-53 Available to backorder	Mulcher Door	£34.72 £28.93
34	HV532 40 16-29 Available to backorder	Spacer	£2.72 £2.27
36	HV532 17 57-35 Available to backorder	Hinge	£8.40 £7.00
37	HV532 42 88-67 Available to backorder	Screw	£4.02 £3.35
38	HV532 40 25-74 Available to backorder	Deflector	£14.22 £11.85
42	HV532 19 30-00 Available to backorder	Hinge	£7.12 £5.93
43	HV586 66 89-01 Available to backorder	Nut	£2.98 £2.48
45	HV532 17 56-50 Available to backorder	Rod	£5.52 £4.60
46	HV532 44 39-50 Available to backorder	Adapter	£55.60 £46.33
47	HV532 19 93-79 Available to backorder	Blade	£35.72 £29.77
48	HV532 85 10-74 Available to backorder	Washer	£4.80 £4.00
49	HV596 23 87-01 Available to backorder	Washer	£2.65 £2.21
50	HV532 85 10-84 Available to backorder	Screw	£6.97 £5.81
53	HV817 60 04-06 Available to backorder	Screw	£1.80 £1.50
54	HV532 08 83-48 Available to backorder	Washer	£2.34 £1.95
55	HV596 32 26-01 Available to backorder	Locknut 3/8-16 Rl508A/B	£3.79 £3.16
57	HV532 05 17-93 Available to backorder	Pin	£4.78 £3.98
59	HV532 19 15-74 Available to backorder	Screw	£5.82 £4.85
60	HV874 78 06-12 Available to backorder	Bolt	£6.34 £5.28
63	HV532 19 23-25 Available to backorder	Screw	£2.34 £1.95
65	HV532 19 74-80 Available to backorder	O-Ring	£3.84 £3.20
69	HV532 19 79-91 Available to backorder	Clip	£0.77 £0.64
71	HV532 19 09-39 Available to backorder	Bracket	£7.76 £6.47
