McCulloch MWT420 - 96171000304 - 2016-08 - Frame Parts Diagram

Name: McCulloch MWT420 - 96171000304 - 2016-08 - Frame Parts Diagram
SKU: mwt420_96171000304_2016_08_frame-group
Price: 1.92 GBP
Availability: InStock

Part No. mwt420_96171000304_2016_08_frame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

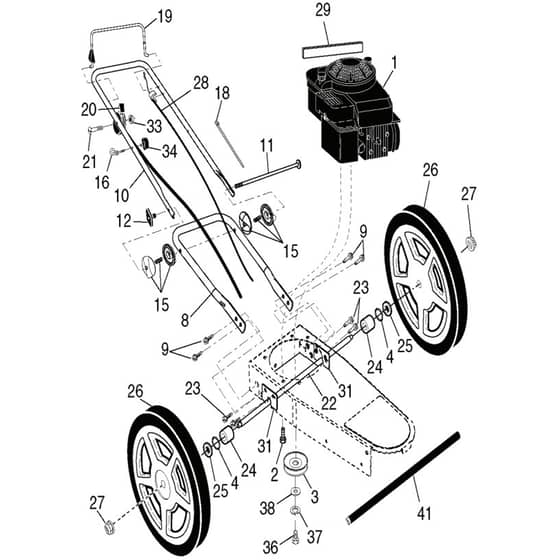

McCulloch MWT420 - 96171000304 - 2016-08 - Frame Parts Diagram

Description

McCulloch MWT420 - 96171000304 - 2016-08 - Frame Parts Diagram

	Part No.	Details
4	HV532 08 83-48 Available to backorder	Washer	£2.30 £1.92
12	HV532 18 55-77 Available to backorder	Knob	£7.70 £6.42
16	HV581 90 21-01 Available to backorder	Guide	£4.55 £3.79
19	HV587 56 41-13 Available to backorder	Bail Arm Assy	£20.50 £17.08
20	HV586 86 12-01 Available to backorder	Control	£15.38 £12.82
21	HV532 18 33-65 Available to backorder	Screw	£5.02 £4.18
22	HV532 44 78-29 Available to backorder	Axle	£43.49 £36.24
23	HV532 42 88-67 Available to backorder	Bolt	£3.97 £3.31
25	HV532 19 74-80 Available to backorder	O-Ring	£3.82 £3.18
26	HV581 01 03-05 Available to backorder	Wheel Assy	£33.68 £28.07
27	HV532 40 91-49 Available to backorder	Nut	£4.82 £4.02
28	HV584 95 41-01 Available to backorder	Cable	£40.16 £33.47
33	HV532 05 06-75 Available to backorder	Nut	£2.30 £1.92
34	HV581 91 26-01 In stock	Knob	Was £5.30 £4.42 Special Price £3.82 £3.18
36	HV532 85 10-84 Available to backorder	Screw	£7.03 £5.86
37	HV596 23 87-01 Available to backorder	Washer	£2.54 £2.12
38	HV532 85 10-74 Available to backorder	Washer	£4.97 £4.14
