McCulloch MWT420 - 96171000301 - 2013-01 - Frame Parts Diagram

Name: McCulloch MWT420 - 96171000301 - 2013-01 - Frame Parts Diagram
SKU: mwt420_96171000301_2013_01_frame-group
Price: 0.98 GBP
Availability: InStock

Part No. mwt420_96171000301_2013_01_frame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

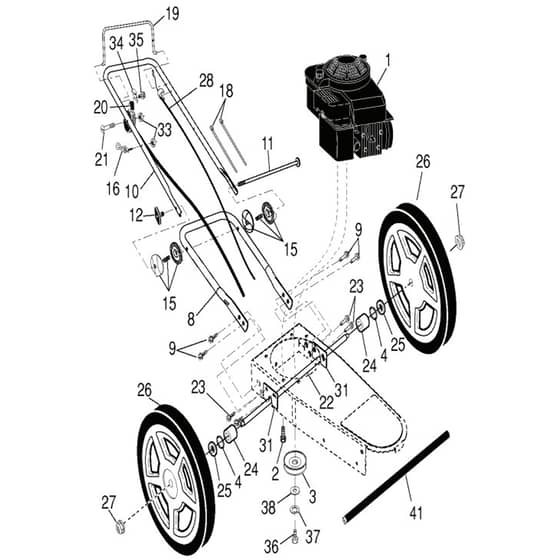

McCulloch MWT420 - 96171000301 - 2013-01 - Frame Parts Diagram

Description

McCulloch MWT420 - 96171000301 - 2013-01 - Frame Parts Diagram

	Part No.	Details
4	HV532 08 83-48 Available to backorder	Washer	£2.30 £1.92
12	HV532 18 55-77 Available to backorder	Knob	£7.70 £6.42
16	HV532 19 47-88 Available to backorder	Guide	£3.46 £2.88
20	HV586 86 12-01 Available to backorder	Control	£15.38 £12.82
21	HV532 15 87-55 Available to backorder	Screw	£4.50 £3.75
22	HV532 44 78-29 Available to backorder	Axle	£43.49 £36.24
23	HV532 42 88-67 Available to backorder	Bolt	£3.97 £3.31
25	HV532 19 74-80 Available to backorder	O-Ring	£3.82 £3.18
26	HV581 01 03-05 Available to backorder	Wheel Assy	£33.68 £28.07
27	HV532 40 91-49 Available to backorder	Nut	£4.82 £4.02
28	HV532 18 16-99 Available to backorder	Control Cable	£39.73 £33.11
33	HV532 05 06-75 Available to backorder	Nut	£2.30 £1.92
34	HV532 43 00-34 Available to backorder	Bracket	£6.04 £5.03
35	HV532 17 88-48 Available to backorder	Screw	£1.18 £0.98
36	HV532 85 10-84 Available to backorder	Screw	£7.03 £5.86
37	HV596 23 87-01 Available to backorder	Washer	£2.54 £2.12
38	HV532 85 10-74 Available to backorder	Washer	£4.97 £4.14
