McCulloch MT305 CPS 9671535-01 - 2013-02 - Main Assy (1) Parts Diagram

Name: McCulloch MT305 CPS 9671535-01 - 2013-02 - Main Assy (1) Parts Diagram
SKU: mt305_cps_9671535_01_2013_02_main_assy_1_-group
Price: 0.53 GBP
Availability: InStock

Part No. mt305_cps_9671535_01_2013_02_main_assy_1_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

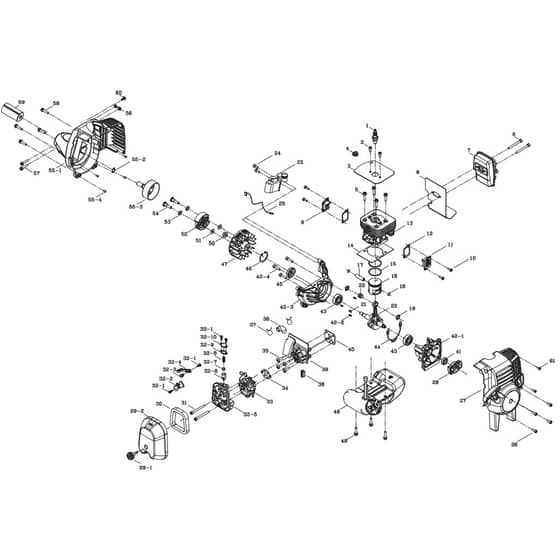

McCulloch MT305 CPS 9671535-01 - 2013-02 - Main Assy (1) Parts Diagram

Description

McCulloch MT305 CPS 9671535-01 - 2013-02 - Main Assy (1) Parts Diagram

	Part No.	Details
1	HV590 84 40-01 In stock	Spark Plug	£5.64 £4.70
4	HV575 30 68-01 Available to backorder	Grommet	£4.40 £3.67
5	HV575 30 69-01 Available to backorder	Screw	£2.42 £2.02
6	HV584 95 63-01 Available to backorder	Screw	£3.07 £2.56
8	HV575 30 72-01 Available to backorder	Sheet	£10.72 £8.93
10	HV574 22 13-01 Available to backorder	Screw	£1.56 £1.30
12	HV576 53 76-01 Available to backorder	Gasket	£0.82 £0.68
13	HV576 81 87-01 Available to backorder	Cylinder	£75.24 £62.70
14	HV575 30 78-01 Available to backorder	Gasket	£3.85 £3.21
15	HV504 12 05-01 Available to backorder	Piston Ring	£12.97 £10.81
16	HV575 30 81-01 Available to backorder	Circlip	£0.80 £0.67
17	HV576 53 80-01 Available to backorder	Piston Pin	£4.16 £3.47
18	HV576 53 81-01 Available to backorder	Piston	£47.38 £39.48
22	HV575 30 86-01 Available to backorder	Crankshaft Assy	£39.95 £33.29
23	HV578 30 35-01 Available to backorder	Ignition Coil	£48.80 £40.67
28	HV575 31 16-01 Available to backorder	Driver Assy	£11.96 £9.97
30	HV575 30 95-01 Available to backorder	Air Filter	£9.14 £7.62
32	HV575 30 97-01 Available to backorder	Filter Holder Assy	£19.66 £16.38
33	HV578 38 89-01 Available to backorder	Carburettor	£62.76 £52.30
34	HV575 31 09-01 Available to backorder	Gasket	£4.37 £3.64
35	HV575 31 10-01 Available to backorder	Screw	£2.66 £2.22
37	HV575 31 12-01 Available to backorder	Hose Clamp	£0.80 £0.67
38	HV575 31 13-01 Available to backorder	Grommet	£2.66 £2.22
39	HV575 31 14-01 Available to backorder	Insulator	£18.29 £15.24
40	HV575 31 15-01 Available to backorder	Gasket	£5.54 £4.62
42	HV575 31 17-01 Available to backorder	Crankcase Assy	£76.56 £63.80
44	HV575 31 19-01 Available to backorder	Gasket	£4.46 £3.72
47	HV575 31 22-01 Available to backorder	Flywheel Assy	£34.55 £28.79
48	HV575 31 23-01 Available to backorder	Fuel Tank Assy	£54.86 £45.72
50	HV574 22 34-01 Available to backorder	Nut	£2.33 £1.94
51	HV575 31 35-01 Available to backorder	Washer	£2.94 £2.45
52	HV575 31 36-01 Available to backorder	Clutch Assy	£40.68 £33.90
53	HV575 31 37-01 Available to backorder	Spring Washer	£3.08 £2.57
54	HV584 95 61-01 Available to backorder	Bolt	£3.07 £2.56
55	HV581 03 86-01 Available to backorder	Cylinder Cover Assy	£44.22 £36.85
58	HV578 30 39-03 Available to backorder	Screw	£1.88 £1.57
60	HV574 31 70-01 Available to backorder	Screw	£1.79 £1.49
291	HV575 30 93-01 In stock	Turning Knob	Was £6.97 £5.81 Special Price £3.73 £3.11
321	HV575 30 98-01 Available to backorder	Screw	£2.51 £2.09
322	HV575 30 99-01 Available to backorder	Choke Valve	£2.65 £2.21
323	HV575 31 00-01 Available to backorder	Arm	£2.94 £2.45
324	HV575 31 01-01 Available to backorder	Choke Control	£6.68 £5.57
325	HV575 31 02-01 Available to backorder	Filter Holder	£8.03 £6.69
328	HV575 31 05-01 Available to backorder	Spring	£2.44 £2.03
423	HV579 30 40-02 Available to backorder	Crankcase	£62.28 £51.90
552	HV575 31 41-01 Available to backorder	Snap Ring	£0.64 £0.53
553	HV575 31 43-01 Available to backorder	Clutch Drum	£38.71 £32.26
554	HV575 31 42-01 Available to backorder	Bushing	£2.86 £2.38
