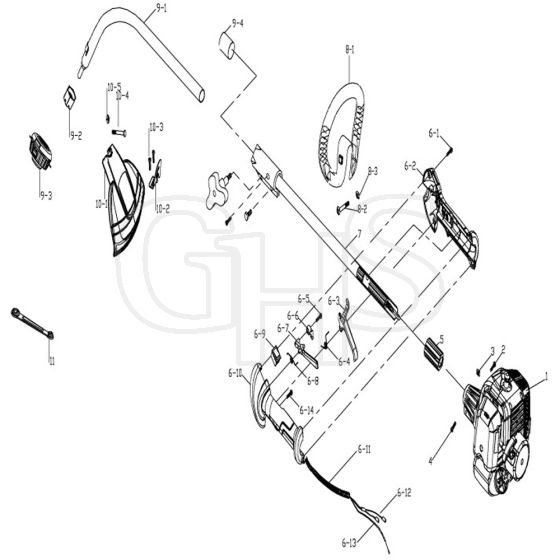

McCulloch MT260 CLS - 9671533-01 - 2013-02 - Product Complete (2) Parts Diagram

Name: McCulloch MT260 CLS - 9671533-01 - 2013-02 - Product Complete (2) Parts Diagram
SKU: mt260_cls_9671533_01_2013_02_product_complete_2_-group
Price: 0.75 GBP
Availability: InStock

Part No. mt260_cls_9671533_01_2013_02_product_complete_2_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MT260 CLS - 9671533-01 - 2013-02 - Product Complete (2) Parts Diagram

Description

McCulloch MT260 CLS - 9671533-01 - 2013-02 - Product Complete (2) Parts Diagram

	Part No.	Details
1	HV581 03 16-01 Available to backorder	Engine Assy	£197.28 £164.40
2	HV574 31 70-01 Available to backorder	Screw	£1.79 £1.49
7	HV581 03 82-01 Available to backorder	Housing Assy	£59.81 £49.84
8	HV576 00 85-01 Available to backorder	Handle Assy	£27.60 £23.00
9	HV576 23 05-02 Available to backorder	Shaft Assy	£77.16 £64.30
10	HV576 00 87-01 Available to backorder	Shield	£30.20 £25.17
11	HV530 05 64-01 Available to backorder	Wrench	£1.87 £1.56
62	HV575 30 43-01 Available to backorder	Handle Half	£31.97 £26.64
63	HV581 03 59-01 Available to backorder	Control Unit	£8.34 £6.95
64	HV575 30 45-01 Available to backorder	Spring Throttle Control	£0.90 £0.75
66	HV575 30 46-01 Available to backorder	Neck	£2.60 £2.17
67	HV581 03 65-01 Available to backorder	Control Unit	£7.06 £5.88
68	HV575 30 48-01 Available to backorder	Spring Throttle Control	£1.02 £0.85
91	HV575 61 55-04 Available to backorder	Curve Shaft Assembly	£46.52 £38.77
92	HV575 57 39-01 Available to backorder	Dust Cover	£8.03 £6.69
94	HV575 30 64-01 Available to backorder	Plug	£4.34 £3.62
101	HV530 09 61-06 Available to backorder	Shield Curved Shaft 1"	£29.47 £24.56
102	HV530 05 22-86 Available to backorder	Line	£5.76 £4.80
103	HV530 01 58-14 Available to backorder	Screw	£1.78 £1.48
104	HV530 01 58-20 Available to backorder	Screw	£3.59 £2.99
105	HV530 01 51-97 Available to backorder	Nut	£2.00 £1.67
611	HV575 30 50-01 Available to backorder	Hose	£5.35 £4.46
612	HV575 30 52-01 Available to backorder	Throttle Cable	£13.39 £11.16
613	HV575 30 51-01 Available to backorder	Wire Assy	£10.61 £8.84
