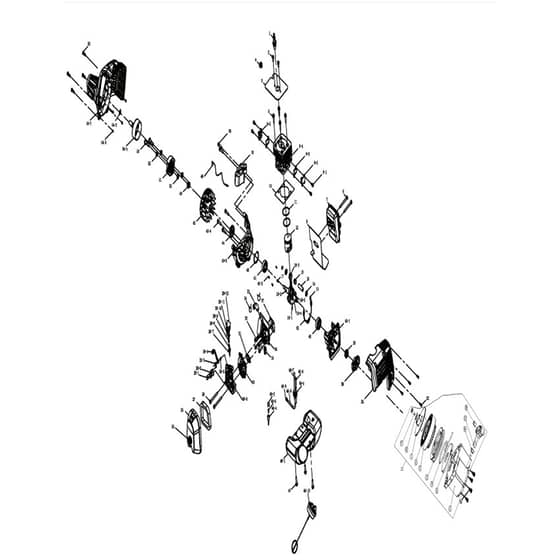

McCulloch MT260 CLS - 9671533-01 - 2013-02 - Product Complete (1) Parts Diagram

Description

McCulloch MT260 CLS - 9671533-01 - 2013-02 - Product Complete (1) Parts Diagram

	Part No.	Details
1	HV590 84 40-01 In stock	Spark Plug	£5.64 £4.70
4	HV575 30 68-01 Available to backorder	Grommet	£4.40 £3.67
5	HV575 30 69-01 Available to backorder	Screw	£2.42 £2.02
6	HV584 95 63-01 Available to backorder	Screw	£3.07 £2.56
8	HV575 30 72-01 Available to backorder	Sheet	£10.72 £8.93
9	HV578 41 19-01 Available to backorder	Cylinder Assy	£65.76 £54.80
10	HV575 30 78-01 Available to backorder	Gasket	£3.85 £3.21
11	HV575 30 79-01 Available to backorder	Piston Ring	£7.45 £6.21
12	HV575 30 80-01 Available to backorder	Piston	£45.40 £37.83
13	HV575 30 81-01 Available to backorder	Circlip	£0.80 £0.67
18	HV575 30 86-01 Available to backorder	Crankshaft Assy	£39.95 £33.29
19	HV575 30 87-01 Available to backorder	Ignition Coil	£65.04 £54.20
22	HV581 03 14-01 Available to backorder	Starter Assy	£59.70 £49.75
24	HV581 03 17-01 Available to backorder	Cylinder Cover Assy	£25.00 £20.83
25	HV575 30 93-01 In stock	Turning Knob	Was £6.97 £5.81 Special Price £3.73 £3.11
27	HV575 30 95-01 Available to backorder	Air Filter	£9.14 £7.62
30	HV578 38 89-01 Available to backorder	Carburettor	£62.76 £52.30
31	HV575 31 09-01 Available to backorder	Gasket	£4.37 £3.64
32	HV575 31 10-01 Available to backorder	Screw	£2.66 £2.22
34	HV575 31 12-01 Available to backorder	Hose Clamp	£0.80 £0.67
35	HV575 31 13-01 Available to backorder	Grommet	£2.66 £2.22
36	HV575 31 14-01 Available to backorder	Insulator	£18.29 £15.24
37	HV575 31 15-01 Available to backorder	Gasket	£5.54 £4.62
38	HV575 31 16-01 Available to backorder	Driver Assy	£11.96 £9.97
40	HV575 31 17-01 Available to backorder	Crankcase Assy	£76.56 £63.80
42	HV575 31 19-01 Available to backorder	Gasket	£4.46 £3.72
45	HV575 31 22-01 Available to backorder	Flywheel Assy	£34.55 £28.79
46	HV575 31 23-01 Available to backorder	Fuel Tank Assy	£54.86 £45.72
49	HV574 22 34-01 Available to backorder	Nut	£2.33 £1.94
50	HV575 31 35-01 Available to backorder	Washer	£2.94 £2.45
51	HV575 31 36-01 Available to backorder	Clutch Assy	£40.68 £33.90
52	HV575 31 37-01 Available to backorder	Spring Washer	£3.08 £2.57
54	HV581 03 20-01 Available to backorder	Cylinder Cover Assy	£35.56 £29.63
55	HV578 30 39-03 Available to backorder	Screw	£1.88 £1.57
91	HV574 22 13-01 Available to backorder	Screw	£1.56 £1.30
94	HV578 41 21-01 Available to backorder	Cylinder	£63.24 £52.70
183	HV578 41 23-01 Available to backorder	Rod	£17.23 £14.36
184	HV578 41 24-01 Available to backorder	Bearing	£11.16 £9.30
221	HV581 03 15-01 Available to backorder	Starter Housing	£23.08 £19.23
222	HV580 28 79-01 Available to backorder	Spring	£17.17 £14.31
223	HV578 46 34-01 Available to backorder	Starter Rope	£5.18 £4.32
223	HV575 31 00-01 Available to backorder	Arm	£2.94 £2.45
224	HV575 31 01-01 Available to backorder	Choke Control	£6.68 £5.57
224	HV580 28 80-01 Available to backorder	Pulley	£6.23 £5.19
225	HV575 31 02-01 Available to backorder	Filter Holder	£8.03 £6.69
225	HV580 28 81-01 Available to backorder	Retainer	£10.37 £8.64
226	HV580 28 82-01 Available to backorder	Spring	£11.14 £9.28
227	HV580 28 83-01 Available to backorder	Pulley	£5.32 £4.43
227	HV575 30 97-01 Available to backorder	Spring Retainer	£19.66 £16.38
228	HV580 28 84-01 Available to backorder	Washer	£2.56 £2.13
228	HV575 31 05-01 Available to backorder	Spring	£2.44 £2.03
229	HV578 30 39-06 Available to backorder	Screw	£1.79 £1.49
291	HV575 30 98-01 Available to backorder	Screw	£2.51 £2.09
292	HV575 30 99-01 Available to backorder	Choke Valve	£2.65 £2.21
403	HV579 30 40-02 Available to backorder	Crankcase	£62.28 £51.90
462	HV575 31 25-01 Available to backorder	Filter	£2.52 £2.10
463	HV575 48 45-01 Available to backorder	Holder	£7.18 £5.98
464	HV575 48 44-01 Available to backorder	Holder	£3.26 £2.72
466	HV575 31 29-02 Available to backorder	Ventilating Hose	£10.68 £8.90
467	HV575 31 30-01 In stock	Fuel Hose	£4.49 £3.74
468	HV575 31 31-01 In stock	Fuel Hose	£4.92 £4.10
469	HV574 22 70-01 In stock	Fuel Filter	£8.09 £6.74
542	HV575 31 41-01 Available to backorder	Snap Ring	£0.64 £0.53
543	HV575 31 42-01 Available to backorder	Bushing	£2.86 £2.38
544	HV575 31 43-01 Available to backorder	Clutch Drum	£38.71 £32.26
2210	HV574 60 56-01 Available to backorder	Eyelet	£4.36 £3.63
2211	HV580 28 85-01 Available to backorder	Starter Handle	£5.84 £4.87
2212	HV580 28 86-01 Available to backorder	Bushing	£7.70 £6.42
4610	HV575 31 32-01 In stock	Tank Cap Assy	£10.25 £8.54
