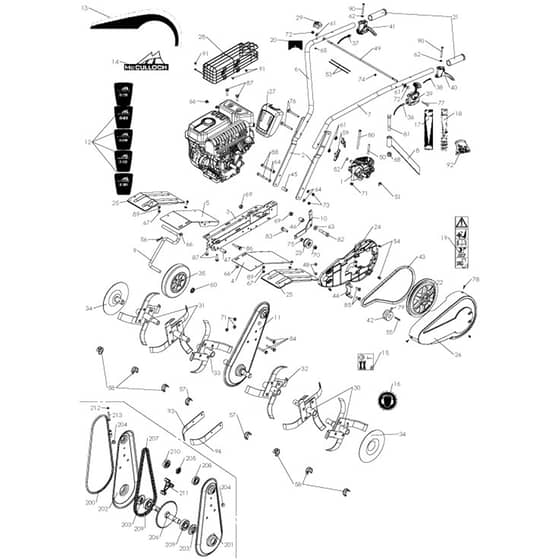

McCulloch MFT 85-700R - 2014-12 - Product Complete Parts Diagram

Name: McCulloch MFT 85-700R - 2014-12 - Product Complete Parts Diagram
SKU: mft_85_700r_2014_12_product_complete-group
Price: 1.32 GBP
Availability: InStock

Part No. mft_85_700r_2014_12_product_complete-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MFT 85-700R - 2014-12 - Product Complete Parts Diagram

Description

McCulloch MFT 85-700R - 2014-12 - Product Complete Parts Diagram

	Part No.	Details
1	HV588 42 12-01 Available to backorder	Gearbox	£297.36 £247.80
5	HV577 48 78-01 Available to backorder	Guard	£15.85 £13.21
9	HV577 44 80-01 Available to backorder	Wheel	£11.05 £9.21
10	HV519 65 34-07 Available to backorder	Lever Assy Including 10+ 46+ 69+ 63+ 82+ 70+ 23+ 75+ 83	£3.26 £2.72
11	HV575 35 87-01 Available to backorder	Transmission	£152.88 £127.40
18	HV531 00 82-51 Available to backorder	Decal Lc170/Gx	£1.79 £1.49
23	HV519 65 34-57 Available to backorder	Pulley	£17.17 £14.31
29	HV577 51 77-01 Available to backorder	Switch Lc170	£16.99 £14.16
29	HV531 00 85-58 Available to backorder	Stop Switch Gx	£43.38 £36.15
33	HV531 00 82-13 Available to backorder	Blade	£39.76 £33.13
34	HV519 65 33-62 Available to backorder	Cover	£11.58 £9.65
35	HV577 44 78-01 Available to backorder	Wheel	£9.20 £7.67
37	HV577 46 37-01 Available to backorder	Cable	£16.25 £13.54
38	HV588 42 13-01 Available to backorder	Cable	£32.04 £26.70
39	HV577 45 30-01 Available to backorder	Throttle Lever	£12.65 £10.54
41	HV577 46 36-01 Available to backorder	Lever	£10.14 £8.45
44	HV531 00 85-77 Available to backorder	Belt Guide	£7.62 £6.35
45	HV575 36 09-01 Available to backorder	Spacer	£5.98 £4.98
46	HV575 36 05-01 Available to backorder	Spacer	£1.73 £1.44
48	HV531 00 82-16 Available to backorder	Spacer	£1.73 £1.44
49	HV577 45 24-01 Available to backorder	Handlebar	£5.41 £4.51
50	HV519 65 30-67 Available to backorder	Shaft	£1.79 £1.49
51	HV580 31 42-01 Available to backorder	Retainer Ring	£1.79 £1.49
52	HV519 65 34-66 Available to backorder	Retainer Ring	£1.79 £1.49
54	HV519 65 34-25 Available to backorder	Clip	£1.79 £1.49
55	HV519 65 30-21 Available to backorder	Key	£1.79 £1.49
56	HV519 65 12-20 Available to backorder	Pin Retaining Screw	£1.84 £1.53
57	HV577 45 36-01 Available to backorder	Clip	£1.84 £1.53
58	HV577 45 35-01 Available to backorder	Clip	£1.58 £1.32
59	HV531 00 84-62 Available to backorder	Wing Nut	£1.58 £1.32
60	HV577 46 31-01 Available to backorder	Washer	£1.84 £1.53
61	HV544 31 49-01 Available to backorder	Washer	£1.69 £1.41
62	HV531 00 94-03 Available to backorder	Washer	£1.79 £1.49
63	HV519 65 34-53 Available to backorder	Washer	£1.79 £1.49
65	HV531 00 85-39 Available to backorder	Washer	£1.79 £1.49
67	HV519 65 34-32 Available to backorder	Nut	£1.79 £1.49
68	HV531 00 85-78 Available to backorder	Nut	£1.58 £1.32
70	HV519 65 34-58 Available to backorder	Nut	£1.79 £1.49
71	HV519 65 34-56 Available to backorder	Nut	£1.84 £1.53
72	HV577 48 91-01 Available to backorder	Cap Nut	£1.84 £1.53
74	HV732 26 16-01 Available to backorder	Nut	£1.79 £1.49
76	HV575 36 13-01 Available to backorder	Screw	£2.68 £2.23
78	HV519 65 34-26 Available to backorder	Screw	£1.79 £1.49
79	HV728 69 23-00 Available to backorder	Screw	£1.79 £1.49
81	HV531 00 82-20 Available to backorder	Bolt	£1.58 £1.32
82	HV575 36 18-01 Available to backorder	Screw	£1.73 £1.44
86	HV575 36 16-01 Available to backorder	Screw	£1.79 £1.49
89	HV519 65 34-35 Available to backorder	Screw	£1.79 £1.49
90	HV519 65 31-13 Available to backorder	Screw	£1.79 £1.49
93	HV519 65 34-47 In stock	Blade Gx	Was £8.76 £7.30 Special Price £6.04 £5.03
94	HV519 65 34-48 Available to backorder	Blade	£7.52 £6.27
201	HV519 65 30-42 Available to backorder	Housing	£24.38 £20.32
205	HV519 65 30-57 Available to backorder	Pinion	£4.33 £3.61
207	HV575 36 23-01 Available to backorder	Chain	£20.80 £17.33
208	HV505 54 40-01 Available to backorder	Ball	£4.16 £3.47
209	HV519 65 30-53 Available to backorder	Bearing	£7.96 £6.63
210	HV531 00 85-46 Available to backorder	Ring	£7.40 £6.17
213	HV501 96 38-01 Available to backorder	Screw	£1.79 £1.49
