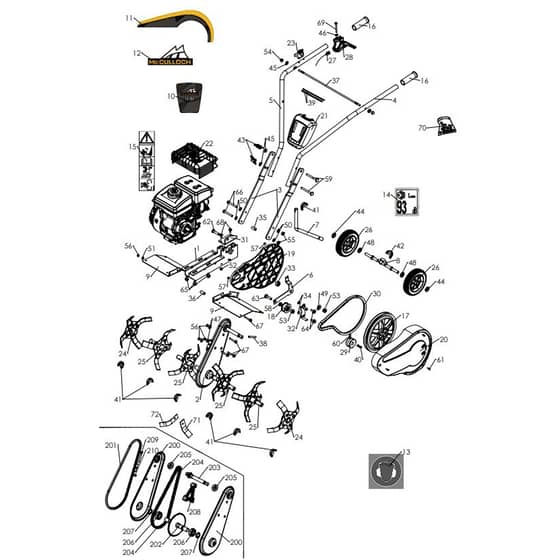

McCulloch MFT 44-154 - 2011-03 - Repair Parts Parts Diagram

Name: McCulloch MFT 44-154 - 2011-03 - Repair Parts Parts Diagram
SKU: mft_44_154_2011_03_repair_parts-group
Price: 1.32 GBP
Availability: InStock

Part No. mft_44_154_2011_03_repair_parts-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MFT 44-154 - 2011-03 - Repair Parts Parts Diagram

Description

McCulloch MFT 44-154 - 2011-03 - Repair Parts Parts Diagram

	Part No.	Details
1	HV577 51 62-01 Available to backorder	Frame	£46.12 £38.43
17	HV519 65 30-60 Available to backorder	Pulley	£14.46 £12.05
18	HV519 65 34-57 Available to backorder	Pulley	£17.17 £14.31
23	HV577 51 77-01 Available to backorder	Switch	£16.99 £14.16
28	HV577 46 36-01 Available to backorder	Lever	£10.14 £8.45
29	HV531 00 84-56 Available to backorder	Pulley	£14.46 £12.05
30	HV522 53 04-01 Available to backorder	Belt	£16.21 £13.51
38	HV519 65 30-67 Available to backorder	Shaft	£1.79 £1.49
43	HV531 00 84-62 Available to backorder	Wing Nut	£1.58 £1.32
45	HV544 31 49-01 Available to backorder	Washer	£1.69 £1.41
46	HV531 00 94-03 Available to backorder	Washer	£1.79 £1.49
47	HV531 00 83-90 Available to backorder	Washer	£1.79 £1.49
48	HV519 65 34-53 Available to backorder	Washer	£1.79 £1.49
49	HV531 00 84-66 Available to backorder	Washer	£1.79 £1.49
52	HV519 65 34-32 Available to backorder	Nut	£1.79 £1.49
53	HV519 65 34-58 Available to backorder	Nut	£1.79 £1.49
54	HV577 48 91-01 Available to backorder	Cap Nut	£1.84 £1.53
59	HV575 36 13-01 Available to backorder	Screw	£2.68 £2.23
60	HV728 69 23-00 Available to backorder	Screw	£1.79 £1.49
64	HV519 65 34-33 Available to backorder	Bolt	£1.79 £1.49
65	HV531 00 82-02 Available to backorder	Bolt	£1.79 £1.49
68	HV519 65 34-35 Available to backorder	Screw	£1.79 £1.49
69	HV519 65 31-13 Available to backorder	Screw	£1.79 £1.49
71	HV531 00 85-63 Available to backorder	Blade	£3.43 £2.86
72	HV531 00 84-59 Available to backorder	Blade	£2.54 £2.12
200	HV531 00 84-36 Available to backorder	Gear Housing	£21.70 £18.08
204	HV531 00 84-51 Available to backorder	Chain	£18.96 £15.80
209	HV501 96 38-01 Available to backorder	Screw	£1.79 £1.49
210	HV732 26 16-01 Available to backorder	Nut	£1.79 £1.49
