McCulloch MC30 - 96028000201 - 2011-11 - Chassis & Enclosures Parts Diagram

Description

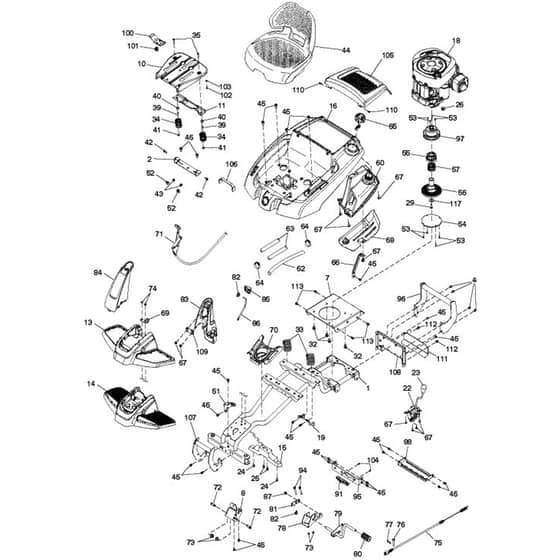

McCulloch MC30 - 96028000201 - 2011-11 - Chassis & Enclosures Parts Diagram

	Part No.	Details
1	HV583 50 84-01 Available to backorder	Chassis	£306.07 £255.06
10	HV532 44 18-05 Available to backorder	Seat	£97.44 £81.20
13	HV532 44 20-71 Available to backorder	Cover	£28.20 £23.50
14	HV532 44 20-75 Available to backorder	Support	£95.04 £79.20
15	HV532 44 20-69 Available to backorder	Support	£28.12 £23.43
23	HV532 14 98-46 Available to backorder	Boule De Levier 149846	£20.50 £17.08
24	HV532 41 63-58 Available to backorder	Screw	£2.05 £1.71
32	HV817 06 06-20 Available to backorder	Screw	£5.75 £4.79
33	HV587 61 33-01 Available to backorder	Spring	£20.50 £17.08
35	HV872 05 04-12 Available to backorder	Bolt	£3.59 £2.99
39	HV532 13 43-00 Available to backorder	Spacer	£4.50 £3.75
40	HV532 12 12-48 Available to backorder	Bushing	£6.01 £5.01
41	HV586 66 89-01 Available to backorder	Locknut	£2.94 £2.45
42	HV532 17 18-52 Available to backorder	Bolt	£5.16 £4.30
43	HV596 04 05-01 Available to backorder	Lock Nut	£2.03 £1.69

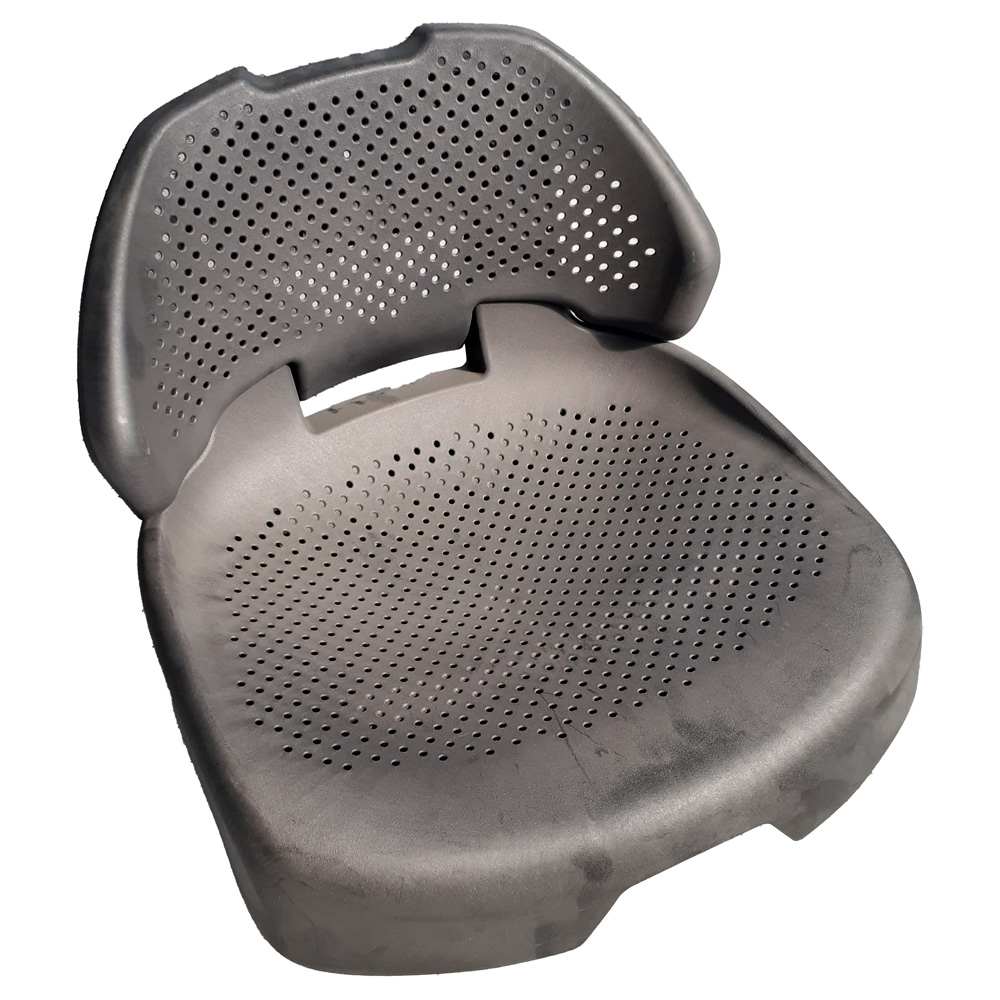

44	HV532 43 66-12 Available to backorder	Seat	£137.88 £114.90
45	HV532 42 88-67 Available to backorder	Screw	£3.97 £3.31
52	HV532 14 50-06 Available to backorder	Clip	£0.90 £0.75
54	HV532 43 64-73 Available to backorder	Disc	£44.15 £36.79
60	HV532 43 78-56 Available to backorder	Fuel Tank Assy	£65.04 £54.20
63	HV532 44 85-62 Available to backorder	Purge Line Carb	£9.36 £7.80
64	HV532 12 34-87 Available to backorder	Hose Clamp	£0.77 £0.64
66	HV583 50 97-01 Available to backorder	Support	£12.82 £10.68
68	HV532 43 98-51 Available to backorder	Heat Shield	£40.16 £33.47
69	HV532 43 74-27 Available to backorder	Bracket	£6.46 £5.38
70	HV532 44 20-68 Available to backorder	Console	£9.37 £7.81
71	HV532 43 78-57 Available to backorder	Throttle	£13.18 £10.98
72	HV532 19 51-61 Available to backorder	Stud	£2.94 £2.45
73	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
75	HV532 43 69-59 Available to backorder	Auger	£37.15 £30.96
77	HV876 02 02-08 Available to backorder	Pin	£5.32 £4.43
78	HV532 43 70-56 Available to backorder	Bracket	£23.36 £19.47
79	HV532 43 70-57 Available to backorder	Brake	£21.64 £18.03
80	HV532 42 96-93 Available to backorder	Cover	£8.81 £7.34
81	HV583 51 80-01 Available to backorder	Link	£9.62 £8.02
82	HV532 16 94-84 Available to backorder	Pin	£4.12 £3.43
85	HV583 52 17-01 Available to backorder	Brake	£8.98 £7.48
87	HV532 16 54-92 Available to backorder	Bolt	£5.02 £4.18
96	HV532 44 20-73 Available to backorder	Bumper	£28.12 £23.43
100	HV532 19 76-61 Available to backorder	Handle	£10.73 £8.94
101	HV532 19 82-00 Available to backorder	Spring	£3.46 £2.88
102	HV874 78 06-12 Available to backorder	Bolt	£6.29 £5.24
104	HV818 10 10-08 Available to backorder	Screw	£1.61 £1.34
106	HV532 43 68-34 Available to backorder	Strap	£2.14 £1.78
107	HV532 44 20-74 Available to backorder	Bumper	£18.74 £15.62
108	HV583 51 71-01 Available to backorder	Cover	£83.04 £69.20
109	HV532 43 90-08 Available to backorder	Retainer	£1.94 £1.62
110	HV583 75 98-01 Available to backorder	Hinge Pin	£3.84 £3.20
111	HV532 43 81-71 Available to backorder	Shield	£10.46 £8.72
112	HV539 99 00-71 Available to backorder	Screw	£1.78 £1.48
117	HV532 19 91-62 Available to backorder	Washer	£9.62 £8.02
