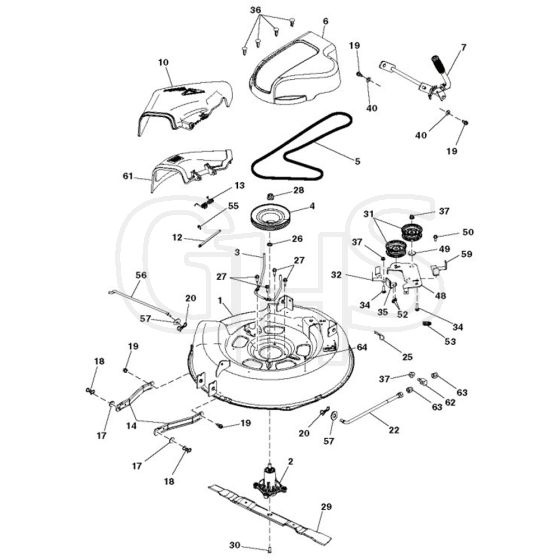

McCulloch MC30 - 96028000200 - 2011-04 - Mower Deck - Cutting Deck Parts Diagram

Name: McCulloch MC30 - 96028000200 - 2011-04 - Mower Deck - Cutting Deck Parts Diagram
SKU: mc30_96028000200_2011_04_mower_deck_cutting_deck-group
Price: 1.16 GBP
Availability: InStock

Part No. mc30_96028000200_2011_04_mower_deck_cutting_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MC30 - 96028000200 - 2011-04 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch MC30 - 96028000200 - 2011-04 - Mower Deck - Cutting Deck Parts Diagram

	Part No.	Details
2	HV532 19 28-70 Available to backorder	Spindle	£158.64 £132.20
4	HV532 43 68-55 Available to backorder	Pulley	£109.08 £90.90
6	HV532 43 68-63 Available to backorder	Cover	£47.52 £39.60
10	HV532 43 96-38 Available to backorder	Deflector	£46.84 £39.03
12	HV532 43 66-47 Available to backorder	Hinge Pin	£1.60 £1.33
13	HV532 43 74-62 Available to backorder	Spring	£3.80 £3.17
14	HV532 19 51-85 Available to backorder	Arm	£33.31 £27.76
17	HV819 19 19-12 Available to backorder	Washer	£3.85 £3.21
18	HV532 19 42-09 Available to backorder	Spring	£3.74 £3.12
19	HV532 19 65-39 Available to backorder	Bolt	£6.40 £5.33
20	HV532 19 42-08 Available to backorder	Pin	£1.39 £1.16
25	HV532 00 44-97 Available to backorder	Retainer Ring	£1.49 £1.24
26	HV532 18 76-90 Available to backorder	Washer	£3.66 £3.05
27	HV584 95 39-01 Available to backorder	Screw	£5.88 £4.90
28	HV596 13 48-01 Available to backorder	Nut	£1.51 £1.26
29	HV532 41 92-73 Available to backorder	Ride On Blade	£44.99 £37.49
30	HV532 19 30-03 Available to backorder	Screw	£13.87 £11.56
31	HV532 17 79-68 Available to backorder	Pulley	£61.00 £50.83
34	HV596 13 61-01 Available to backorder	Bolt	£3.97 £3.31
35	HV532 40 01-30 Available to backorder	Arm	£21.53 £17.94
36	HV532 13 77-29 In stock	Screw	£2.22 £1.85
37	HV532 40 91-49 Available to backorder	Nut	£4.82 £4.02
40	HV734 11 78-01 Available to backorder	Washer	£3.59 £2.99
49	HV532 19 90-92 Available to backorder	Spacer	£5.75 £4.79
50	HV817 00 06-16 Available to backorder	Screw	£6.02 £5.02
52	HV817 60 04-06 Available to backorder	Screw	£1.78 £1.48
53	HV532 40 18-72 Available to backorder	Spring	£7.18 £5.98
55	HV532 43 79-88 Available to backorder	Ring	£5.32 £4.43
57	HV734 11 72-01 Available to backorder	Washer	£1.98 £1.65
62	HV532 17 62-05 Available to backorder	Trunion	£8.98 £7.48
64	HV817 67 06-08 Available to backorder	Screw	£5.24 £4.37
