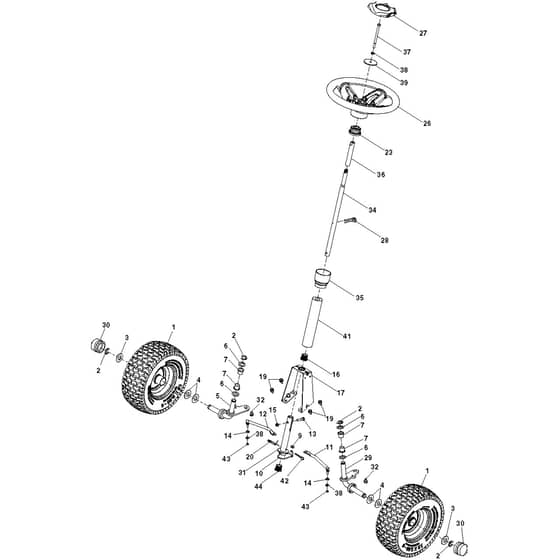

McCulloch MC30 - 96022001300 - 2011-03 - Steering Parts Diagram

Name: McCulloch MC30 - 96022001300 - 2011-03 - Steering Parts Diagram
SKU: mc30_96022001300_2011_03_steering-group
Price: 0.64 GBP
Availability: InStock

Part No. mc30_96022001300_2011_03_steering-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MC30 - 96022001300 - 2011-03 - Steering Parts Diagram

Description

McCulloch MC30 - 96022001300 - 2011-03 - Steering Parts Diagram

	Part No.	Details
1	HV532 44 20-64 Available to backorder	Wheel	£103.08 £85.90
2	HV812 00 00-01 Available to backorder	Retainer Ring	£0.77 £0.64
3	HV532 18 89-67 In stock	Washer	£4.33 £3.61
4	HV532 12 17-49 In stock	Washer	£2.82 £2.35
5	HV532 43 61-81 Available to backorder	Spindle	£32.11 £26.76
6	HV532 00 62-66 Available to backorder	Washer	£2.83 £2.36
7	HV532 00 33-66 Available to backorder	Bearing Col. Strg.	£5.88 £4.90
14	HV734 11 63-01 In stock	Washer	£2.63 £2.19
15	HV596 04 05-01 Available to backorder	Lock Nut	£2.03 £1.69
16	HV532 43 62-82 Available to backorder	Bushing	£20.94 £17.45
17	HV532 43 61-78 Available to backorder	Support	£8.69 £7.24
19	HV532 42 88-67 Available to backorder	Screw	£3.97 £3.31
23	HV587 73 89-05 Available to backorder	Adapter Wheel	£19.86 £16.55
26	HV532 42 45-51 Available to backorder	Steering Wheel	£49.96 £41.63
28	HV532 19 98-49 Available to backorder	Spring Retainer	£3.46 £2.88
29	HV532 43 61-80 Available to backorder	Spindle	£32.11 £26.76
30	HV532 19 32-68 Available to backorder	Hub Cap	£5.78 £4.82
32	HV817 58 05-20 Available to backorder	Bolt	£5.24 £4.37
35	HV532 44 20-66 Available to backorder	Boot	£5.88 £4.90
36	HV532 19 60-75 Available to backorder	Shaft	£26.39 £21.99
38	HV810 04 05-00 Available to backorder	Washer	£1.78 £1.48
39	HV819 11 38-12 Available to backorder	Washer	£17.32 £14.43
41	HV532 43 65-90 Available to backorder	Shaft	£7.37 £6.14
43	HV873 54 05-00 Available to backorder	Nut	£2.30 £1.92
