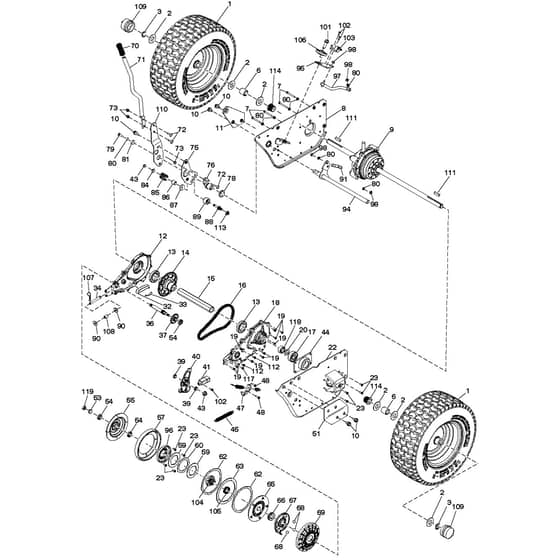

McCulloch MC30 - 96022001300 - 2011-03 - Drive Parts Diagram

Name: McCulloch MC30 - 96022001300 - 2011-03 - Drive Parts Diagram
SKU: mc30_96022001300_2011_03_drive-group
Price: 0.64 GBP
Availability: InStock

Part No. mc30_96022001300_2011_03_drive-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MC30 - 96022001300 - 2011-03 - Drive Parts Diagram

Description

McCulloch MC30 - 96022001300 - 2011-03 - Drive Parts Diagram

	Part No.	Details
1	HV532 44 20-79 Available to backorder	Wheel	£135.60 £113.00
2	HV532 12 17-48 Available to backorder	Washer	£6.00 £5.00
3	HV812 00 00-01 Available to backorder	Retainer Ring	£0.77 £0.64
10	HV532 42 88-67 Available to backorder	Screw	£3.97 £3.31
11	HV532 43 67-41 Available to backorder	Bracket	£7.37 £6.14
12	HV532 44 74-24 Available to backorder	Case	£64.80 £54.00
20	HV532 00 62-66 Available to backorder	Washer	£2.83 £2.36
41	HV539 10 10-80 Available to backorder	Switch	£18.24 £15.20
43	HV596 04 05-01 Available to backorder	Lock Nut	£2.03 £1.69
51	HV532 43 67-39 Available to backorder	Bracket	£7.37 £6.14
53	HV532 40 91-49 Available to backorder	Nut	£4.82 £4.02
57	HV532 43 65-59 Available to backorder	Wheel	£20.06 £16.72
68	HV532 44 58-17 Available to backorder	Bearing	£4.61 £3.84
70	HV532 41 15-55 Available to backorder	Grip	£10.43 £8.69
71	HV532 43 68-65 Available to backorder	Tube	£13.39 £11.16
72	HV872 11 04-06 Available to backorder	Bolt	£1.58 £1.32
73	HV873 68 04-00 Available to backorder	Nut	£2.94 £2.45
76	HV532 44 43-04 Available to backorder	Lever	£8.98 £7.48
80	HV596 02 98-01 Available to backorder	Washer	£2.44 £2.03
81	HV734 11 54-41 Available to backorder	Washer	£2.56 £2.13
90	HV734 11 65-41 Available to backorder	Washer	£3.59 £2.99
101	HV817 06 06-24 Available to backorder	Screw	£7.06 £5.88
103	HV532 10 44-45 Available to backorder	Switch	£18.24 £15.20
106	HV532 19 43-21 In stock	Spacer	£14.36 £11.97
107	HV532 00 44-97 Available to backorder	Retainer Ring	£1.49 £1.24
109	HV532 19 32-68 Available to backorder	Hub Cap	£5.78 £4.82
110	HV532 42 84-61 Available to backorder	Bracket	£15.40 £12.83
111	HV532 12 35-83 In stock	Key	£7.18 £5.98
113	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
114	HV532 43 62-82 Available to backorder	Bushing	£20.94 £17.45
119	HV873 22 06-00 Available to backorder	Nut	£3.59 £2.99
