McCulloch MC195H42LT - 96042011400 - 2009-11 - Chassis & Enclosures Parts Diagram

Description

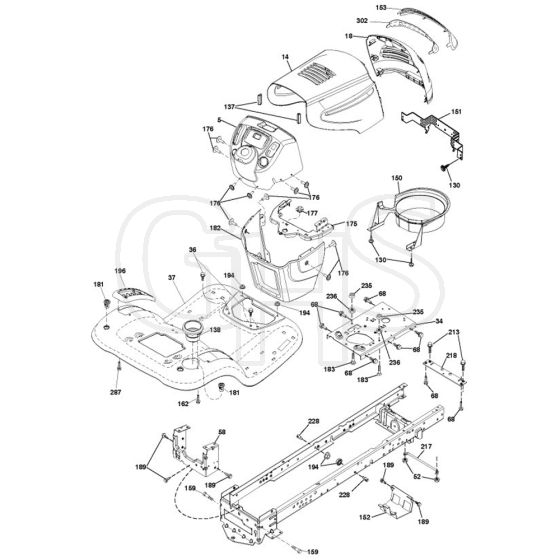

McCulloch MC195H42LT - 96042011400 - 2009-11 - Chassis & Enclosures Parts Diagram

	Part No.	Details
68	HV817 49 05-08 Available to backorder	Screw	£3.59 £2.99
130	HV532 41 63-58 Available to backorder	Screw	£2.05 £1.71
137	HV532 18 49-21 Available to backorder	Bumper	£7.14 £5.95
151	HV532 40 78-07 Available to backorder	Bracket	£51.25 £42.71
152	HV532 19 95-35 Available to backorder	Shield	£48.07 £40.06
153	HV532 18 98-37 Available to backorder	Lens Grille	£33.97 £28.31
159	HV817 00 06-12 Available to backorder	Screw	£5.78 £4.82
162	HV532 14 24-32 Available to backorder	Screw	£2.30 £1.92
176	HV532 40 07-76 Available to backorder	Screw	£2.05 £1.71
177	HV532 19 52-28 Available to backorder	Bushing	£10.88 £9.07
180	HV532 41 50-63 Available to backorder	Frame	£366.60 £305.50
189	HV532 42 88-67 Available to backorder	Screw	£3.97 £3.31
194	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
196	HV532 41 45-79 Available to backorder	Console	£33.97 £28.31
228	HV532 19 51-61 Available to backorder	Stud	£2.94 £2.45
235	HV532 40 61-29 Available to backorder	Spacer	£9.25 £7.71
236	HV873 93 05-00 Available to backorder	Nut	£2.30 £1.92
287	HV817 60 04-06 Available to backorder	Screw	£1.78 £1.48
302	HV532 18 38-23 Available to backorder	Insert Lens Reflect	£11.66 £9.72
