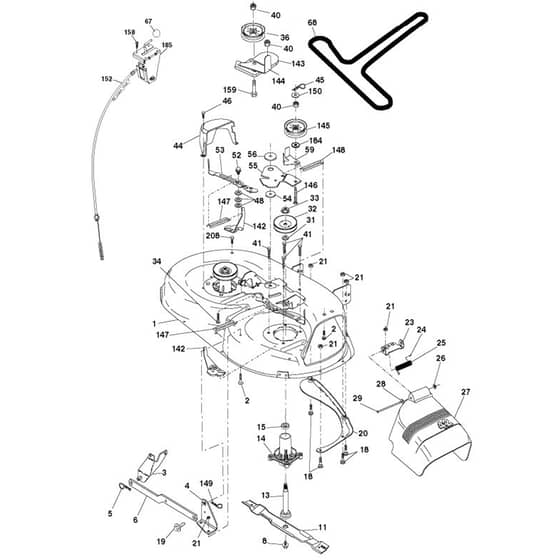

McCulloch MC19542LT-96012011402 - 2011-08 - Mower Deck - Cutting Deck Parts Diagram

Name: McCulloch MC19542LT-96012011402 - 2011-08 - Mower Deck - Cutting Deck Parts Diagram
SKU: mc19542lt_96012011402_2011_08_mower_deck_cutting_deck-group
Price: 1.24 GBP
Availability: InStock

Part No. mc19542lt_96012011402_2011_08_mower_deck_cutting_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MC19542LT-96012011402 - 2011-08 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch MC19542LT-96012011402 - 2011-08 - Mower Deck - Cutting Deck Parts Diagram

	Part No.	Details
-1	HV532 19 28-70 Available to backorder	Spindle Includes Housing+ Shaft Assembly+ And Bearing Only.	£158.64 £132.20
2	HV595 90 16-01 Available to backorder	Bolt	£4.22 £3.52
3	HV532 13 80-17 Available to backorder	Bracke	£19.88 £16.57
5	HV596 91 96-01 Available to backorder	Retainer Ring	£3.95 £3.29
6	HV532 17 80-24 Available to backorder	Lever	£23.08 £19.23
8	HV532 19 30-03 Available to backorder	Screw The Following Blades Are Available	£13.87 £11.56
11	HV532 13 89-71 Available to backorder	Blade For Bagging And Discharging	£29.10 £24.25
14	HV587 81 97-01 Available to backorder	Bearing Housing	£158.64 £132.20
15	HV532 11 04-85 In stock	Bearing	£9.24 £7.70
18	HV596 13 64-01 Available to backorder	Bolt	£4.16 £3.47
20	HV531 16 70-01 Available to backorder	Rail	£28.06 £23.38
23	HV532 17 75-63 In stock	Bracket	£12.19 £10.16
24	HV532 10 53-04 Available to backorder	Hub Cap	£3.52 £2.93
25	HV532 12 37-13 In stock	Spring	Was £11.34 £9.45 Special Price £8.16 £6.80
26	HV532 11 04-52 Available to backorder	Nut	£2.09 £1.74
29	HV595 29 70-01 In stock	Shaft	£10.15 £8.46
31	HV532 18 76-90 Available to backorder	Washer	£3.66 £3.05
32	HV532 17 34-36 Available to backorder	Pulley	£41.35 £34.46
33	HV596 13 48-01 Available to backorder	Nut	£1.51 £1.26
34	HV596 13 61-01 Available to backorder	Bolt	£3.97 £3.31
36	HV597 02 50-01 In stock	Pulley	£53.39 £44.49
40	HV532 40 91-49 Available to backorder	Nut	£4.82 £4.02
41	HV584 95 39-01 Available to backorder	Bolt	£5.88 £4.90
44	HV532 14 00-88 Available to backorder	Guard Lh	£37.81 £31.51
45	HV532 00 44-97 Available to backorder	Retainer Ring	£1.49 £1.24
46	HV532 13 77-29 In stock	Screw	£2.22 £1.85
52	HV532 13 98-88 Available to backorder	Bolt	£5.23 £4.36
54	HV532 17 85-15 In stock	Washer	Was £8.88 £7.40 Special Price £5.82 £4.85
55	HV531 16 66-01-1 Available to backorder	Lever	£18.60 £15.50
56	HV532 16 57-23 In stock	Spacer	Was £12.28 £10.23 Special Price £8.48 £7.07
67	HV532 10 69-32 Available to backorder	Knob	£9.08 £7.57
68	HV532 14 49-59 Available to backorder	Belt	£65.64 £54.70
142	HV532 19 57-84 Available to backorder	Support	£9.08 £7.57
145	HV532 17 34-37 Available to backorder	Pulley	£56.11 £46.76
146	HV532 17 19-77 Available to backorder	Shaft	£16.38 £13.65
147	HV532 17 97-48 Available to backorder	Spring	£6.26 £5.22
148	HV532 16 90-22 Available to backorder	Spring	£5.09 £4.24
149	HV532 16 58-98 Available to backorder	Spring	£3.84 £3.20
150	HV734 11 54-41 Available to backorder	Washer	£2.56 £2.13
158	HV539 99 00-71 Available to backorder	Screw	£1.78 £1.48
159	HV596 98 75-01 Available to backorder	Bolt	£7.06 £5.88
185	HV532 18 82-34 Available to backorder	Cable	£60.90 £50.75
208	HV817 67 06-08 Available to backorder	Screw	£5.24 £4.37
