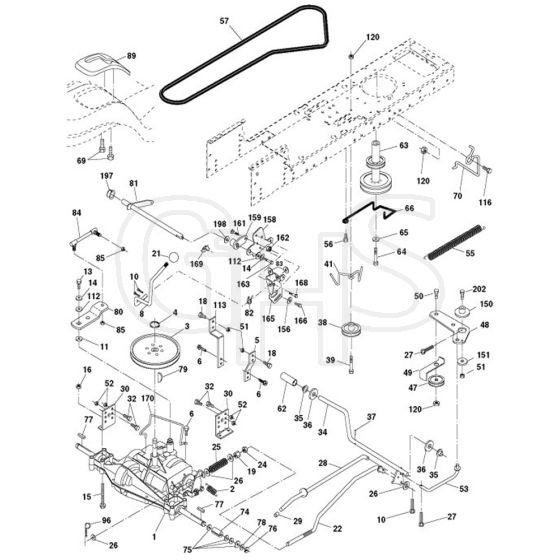

McCulloch MC18542LT - 96012010400 - 2010-06 - Drive Parts Diagram

Name: McCulloch MC18542LT - 96012010400 - 2010-06 - Drive Parts Diagram
SKU: mc18542lt_96012010400_2010_06_drive-group
Price: 0.53 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MC18542LT - 96012010400 - 2010-06 - Drive Parts Diagram

Description

McCulloch MC18542LT - 96012010400 - 2010-06 - Drive Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 14 66-82 Available to backorder	Spring	£4.14 £3.45
3	HV532 12 36-66 Available to backorder	Pulley	£92.84 £77.37
4	HV812 00 00-28 Available to backorder	Clip	£0.64 £0.53
5	HV532 12 15-20 Available to backorder	Bracket	£14.88 £12.40
10	HV876 02 04-16 Available to backorder	Split Pin	£1.86 £1.55
14	HV596 02 98-01 Available to backorder	Washer	£2.44 £2.03
15	HV874 49 05-44 Available to backorder	Screw	£7.12 £5.93
16	HV596 04 05-01 Available to backorder	Lock Nut	£2.06 £1.72
18	HV874 78 06-16 Available to backorder	Bolt	£6.34 £5.28
21	HV532 10 69-33 Available to backorder	Knob	£10.36 £8.63
22	HV532 13 08-04 Available to backorder	Rod	£30.40 £25.33
24	HV873 22 06-00 Available to backorder	Nut	£3.62 £3.02
25	HV532 15 13-32 Available to backorder	Spring	£7.12 £5.93
28	HV532 17 57-65 Available to backorder	Shaft	£13.12 £10.93
29	HV532 07 16-73 Available to backorder	Cover	£3.66 £3.05
34	HV532 17 55-78 Available to backorder	Shaft	£51.08 £42.57
35	HV532 12 01-83 Available to backorder	Bearing	£6.23 £5.19
36	HV819 21 16-16 Available to backorder	Washer	£2.84 £2.37
38	HV532 17 91-14 Available to backorder	Pulley	£44.62 £37.18
39	HV872 11 06-22 Available to backorder	Bolt	£8.40 £7.00
47	HV532 13 92-45 Available to backorder	Pulley	£38.09 £31.74
48	HV532 15 44-07 Available to backorder	Guide	£8.52 £7.10
49	HV532 12 32-05 Available to backorder	Belt Guide	£7.12 £5.93
50	HV596 13 61-01 Available to backorder	Bolt	£6.54 £5.45
51	HV596 32 26-01 Available to backorder	Nut	£3.79 £3.16
55	HV532 10 57-09 Available to backorder	Spring	£16.49 £13.74
56	HV817 06 06-20 Available to backorder	Screw	£7.12 £5.93
57	HV532 13 82-55 Available to backorder	Belt	£67.26 £56.05
63	HV532 17 54-10 Available to backorder	Pulley	£114.48 £95.40
64	HV532 17 39-37 Available to backorder	Bolt	£9.76 £8.13
65	HV810 04 07-00 Available to backorder	Washer	£3.18 £2.65
66	HV531 15 10-01 Available to backorder	Tensioner	£12.23 £10.19
69	HV532 14 24-32 Available to backorder	Screw	£2.34 £1.95
70	HV532 13 46-83 Available to backorder	Belt Guide Rh	£12.94 £10.78
74	HV532 13 70-57 Available to backorder	Spacer	£9.52 £7.93
75	HV532 12 17-49 In stock	Washer	£3.28 £2.73
76	HV812 00 00-01 Available to backorder	Retainer Ring	£0.77 £0.64
77	HV532 12 35-83 Available to backorder	Key	£7.03 £5.86
78	HV532 12 17-48 Available to backorder	Washer	£5.80 £4.83
79	HV532 12 50-96 Available to backorder	Woodruff Key	£8.40 £7.00
81	HV532 16 55-94 Available to backorder	Shaft	£51.08 £42.57
82	HV532 16 57-11 Available to backorder	Spring	£4.78 £3.98
96	HV532 00 44-97 Available to backorder	Retainer Ring	£1.76 £1.47
112	HV734 11 54-41 Available to backorder	Washer	£2.58 £2.15
113	HV532 12 72-85 Available to backorder	Bracket	£15.54 £12.95
120	HV532 40 91-49 Available to backorder	Nut	£4.68 £3.90
156	HV532 16 60-02 Available to backorder	Washer	£4.92 £4.10
158	HV532 16 55-89 Available to backorder	Bracket	£8.58 £7.15
159	HV532 44 43-04 Available to backorder	Lever	£9.06 £7.55
161	HV872 11 04-07 Available to backorder	Bolt	£2.84 £2.37
162	HV873 68 04-00 Available to backorder	Nut	£2.98 £2.48
166	HV817 49 05-10 Available to backorder	Screw	£4.02 £3.35
168	HV532 16 54-92 Available to backorder	Bolt	£5.04 £4.20
170	HV532 18 74-14 Available to backorder	Keeper	£16.04 £13.37
197	HV532 16 96-13 Available to backorder	Sleeve	£5.68 £4.73
198	HV532 16 95-93 Available to backorder	Washer	£2.34 £1.95
202	HV872 11 06-14 Available to backorder	Bolt	£7.12 £5.93
