McCulloch MC13538LT - 96012010300 - 2010-06 - Mower Deck - Cutting Deck Parts Diagram

McCulloch MC13538LT - 96012010300 - 2010-06 - Mower Deck - Cutting Deck Parts Diagram
McCulloch MC13538LT - 96012010300 - 2010-06 - Mower Deck - Cutting Deck Parts Diagram

Description

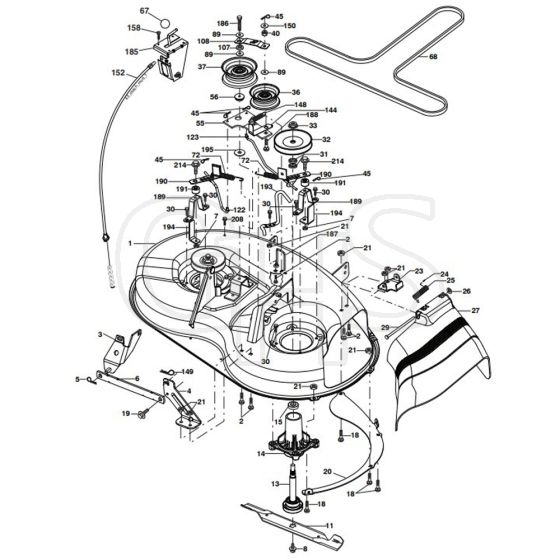

McCulloch MC13538LT - 96012010300 - 2010-06 - Mower Deck - Cutting Deck Parts Diagram

Ref. Img. Part No. Details
  -1 Spindle Mandrel Assembly (Includes Housing+ Shaft Assembly+ And Bearing - Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included)
Spindle Mandrel Assembly (Includes Housing+ Shaft Assembly+ And Bearing - Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included)
HV532 19 28-70 Out of stock
Spindle Mandrel Assembly (Includes Housing+ Shaft Assembly+ And Bearing - Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included)
£124.66 £103.88

  0 Frein De Lame Cpt. Brake Assembly (Includes Stand+ Arm And Guard Components)
Frein De Lame Cpt. Brake Assembly (Includes Stand+ Arm And Guard Components)
HV532 19 25-58 Out of stock
Frein De Lame Cpt. Brake Assembly (Includes Stand+ Arm And Guard Components)
£19.57 £16.31

  1 Deck Shell
Deck Shell
HV532 19 25-56 Out of stock
Deck Shell
£261.30 £217.75

  2 Bolt
Bolt
HV872 14 05-06 Out of stock
Bolt
£4.20 £3.50

  3 Bracke
Bracke
HV532 13 80-17 Out of stock
Bracke
£16.12 £13.43

  5 Retainer Ring
Retainer Ring
HV596 91 96-01 Out of stock
Retainer Ring
£3.91 £3.26

  6 Lever
Lever
HV532 17 80-24 Out of stock
Lever
£19.08 £15.90

  7 Lock Nut
Lock Nut
HV596 04 05-01 Out of stock
Lock Nut
£2.02 £1.68

  8 Screw
Screw
HV532 19 30-03 In stock
Screw
£15.37 £12.81

  11 Ride On Blade
Ride On Blade
HV581 11 63-02 In stock
Ride On Blade
£24.16 £20.13

  13 Shaft Assy
Shaft Assy
HV532 19 28-72 Out of stock
Shaft Assy
£153.76 £128.13

  14 Bearing Housing
Bearing Housing
HV587 81 97-01 Out of stock
Bearing Housing
£153.76 £128.13

  15 Bearing
Bearing
HV532 11 04-85 Out of stock
Bearing
£7.69 £6.41

  18 Bolt
Bolt
HV596 13 64-01 Out of stock
Bolt
£3.16 £2.63

  19 Spec. Bolt
Spec. Bolt
HV532 13 28-27 Out of stock
Spec. Bolt
£5.46 £4.55

  20 Baffle
Baffle
HV531 17 04-01 Out of stock
Baffle
£27.28 £22.73

  23 Hinge
Hinge
HV532 19 25-57 Out of stock
Hinge
£10.96 £9.13

  24 Hub Cap
Hub Cap
HV532 10 53-04 Out of stock
Hub Cap
£2.87 £2.39

  25 Torsion Spring
Torsion Spring
HV532 19 70-26 Out of stock
Torsion Spring
£10.68 £8.90

  26 Nut
Nut
HV532 11 04-52 Out of stock
Nut
£1.64 £1.37

  29 Shaft
Shaft
HV595 29 70-01 Out of stock
Shaft
£13.98 £11.65

  30 Screw
Screw
HV584 95 39-01 Out of stock
Screw
£4.74 £3.95

  31 Washer
Washer
HV532 18 76-90 In stock
Washer
£2.96 £2.47

  32 Pulley
Pulley
HV532 17 34-35 Out of stock
Pulley
£28.51 £23.76

  33 Nut
Nut
HV596 13 48-01 Out of stock
Nut
£1.19 £0.99

  36 Pulley
Pulley
HV597 02 50-01 Out of stock
Pulley
£47.03 £39.19

  37 Pulley
Pulley
HV532 19 31-98 Out of stock
Pulley
£50.26 £41.88

  40 Nut
Nut
HV596 32 26-01 Out of stock
Nut
£3.14 £2.62

  45 Retainer Ring
Retainer Ring
HV532 00 44-97 Out of stock
Retainer Ring
£1.51 £1.26

  55 Lever
Lever
HV532 13 38-40 Out of stock
Lever
£21.78 £18.15

  56 Spacer
Spacer
HV532 16 57-23 Out of stock
Spacer
£9.58 £7.98

  67 Knob
Knob
HV532 10 69-32 Out of stock
Knob
£8.47 £7.06

  68 Belt
Belt
HV532 19 32-14 In stock
Belt
£59.04 £49.20

  72 Ressort Retour Frein De Lame
Ressort Retour Frein De Lame
HV532 19 32-16 Out of stock
Ressort Retour Frein De Lame
£6.46 £5.38

  107 Spacer
Spacer
HV532 13 35-02 Out of stock
Spacer
£5.77 £4.81

  108 Lever
Lever
HV532 13 35-03 Out of stock
Lever
£12.30 £10.25

  122 Rod Lh
Rod Lh
HV532 41 01-89 Out of stock
Rod Lh
£11.11 £9.26

  123 Rod Rh
Rod Rh
HV532 41 01-90 Out of stock
Rod Rh
£12.86 £10.72

  144 Belt Guide
Belt Guide
HV532 19 34-14 Out of stock
Belt Guide
£5.66 £4.72

  148 Spring
Spring
HV532 16 90-22 Out of stock
Spring
£4.15 £3.46

  149 Spring
Spring
HV532 16 58-98 Out of stock
Spring
£3.14 £2.62

  150 Washer
Washer
HV734 11 54-41 Out of stock
Washer
£2.46 £2.05

  152 Cable
Cable
HV532 19 32-35 Out of stock
Cable
£66.37 £55.31

  158 Screw
Screw
HV539 99 00-71 Out of stock
Screw
£1.75 £1.46

  185 Cable
Cable
HV532 18 82-34 Out of stock
Cable
£49.96 £41.63

  186 Screw
Screw
HV596 56 40-05 Out of stock
Screw
£6.28 £5.23

  187 Belt Guide
Belt Guide
HV532 19 34-12 Out of stock
Belt Guide
£6.35 £5.29

  191 Spacer
Spacer
HV532 19 25-61 Out of stock
Spacer
£8.87 £7.39

  193 Belt Guide
Belt Guide
HV532 19 34-13 Out of stock
Belt Guide
£11.59 £9.66

  208 Screw
Screw
HV817 67 06-08 Out of stock
Screw
£4.30 £3.58
