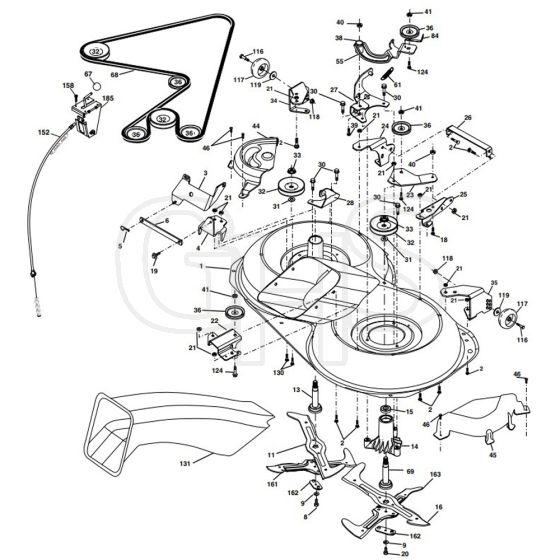

McCulloch MC1292RB - 96061001800 - 2008-11 - Mower Deck - Cutting Deck Parts Diagram

Name: McCulloch MC1292RB - 96061001800 - 2008-11 - Mower Deck - Cutting Deck Parts Diagram
SKU: mc1292rb_96061001800_2008_11_mower_deck_cutting_deck-group
Price: 1.5 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MC1292RB - 96061001800 - 2008-11 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch MC1292RB - 96061001800 - 2008-11 - Mower Deck - Cutting Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV583 11 82-01 Available to backorder	Bearing Housing (--)	£132.76 £110.63
0	HV583 11 83-01 Available to backorder	Bearing Housing (--)	£143.34 £119.45
2	HV595 90 16-01 Available to backorder	Bolt	£4.30 £3.58
5	HV596 91 96-01 Available to backorder	Retainer Ring	£4.02 £3.35
6	HV532 16 55-57 Available to backorder	Rod	£22.84 £19.03
11	HV532 18 63-85 In stock	Blade	£30.12 £25.10
14	HV532 12 87-74 Available to backorder	Bearing Housing	£66.38 £55.32
15	HV532 11 04-85 In stock	Bearing	£8.52 £7.10
16	HV532 18 63-86 In stock	Blade	£30.12 £25.10
19	HV532 13 28-27 Available to backorder	Spec. Bolt	£7.12 £5.93
20	HV583 11 70-01 Available to backorder	Bolt	£6.64 £5.53
23	HV532 16 54-46 Available to backorder	Plate	£28.88 £24.07
25	HV532 16 52-44 Available to backorder	Bracket	£59.52 £49.60
26	HV532 16 52-37 Available to backorder	Rod	£27.96 £23.30
27	HV532 16 55-68 In stock	Bracket	Was £35.28 £29.40 Special Price £24.13 £20.11
28	HV532 16 55-67 Available to backorder	Bracket	£33.64 £28.03
30	HV584 95 39-01 Available to backorder	Screw	£5.44 £4.53
31	HV532 18 76-90 Available to backorder	Washer	£3.54 £2.95
32	HV532 17 34-34 Available to backorder	Pulley	£33.12 £27.60
36	HV593 78 78-01 In stock	Pulley	£56.14 £46.78
38	HV532 16 57-23 In stock	Spacer	£12.28 £10.23
41	HV532 40 91-49 Available to backorder	Nut	£4.68 £3.90
46	HV532 13 77-29 Available to backorder	Screw	£2.52 £2.10
61	HV532 16 59-45 Available to backorder	Spring	£17.46 £14.55
67	HV532 10 69-32 Available to backorder	Knob	£10.36 £8.63
68	HV532 40 20-08 Available to backorder	Belt	£94.44 £78.70
69	HV532 16 54-82 Available to backorder	Shaft	£65.26 £54.38
117	HV532 13 39-57 Available to backorder	Wheel	£26.12 £21.77
118	HV596 32 26-01 Available to backorder	Nut	£3.79 £3.16
119	HV734 11 72-01 Available to backorder	Washer	£2.02 £1.68
124	HV596 13 61-01 Available to backorder	Bolt	£6.54 £5.45
130	HV872 11 05-06 Available to backorder	Bolt	£4.02 £3.35
131	HV532 16 56-61 Available to backorder	Pipe	£116.44 £97.03
158	HV539 99 00-71 Available to backorder	Screw	£1.80 £1.50
161	HV532 18 63-87 Available to backorder	Blade	£25.92 £21.60
163	HV532 18 63-88 Available to backorder	Blade	£28.52 £23.77
185	HV532 18 82-34 Available to backorder	Cable	£61.46 £51.22
