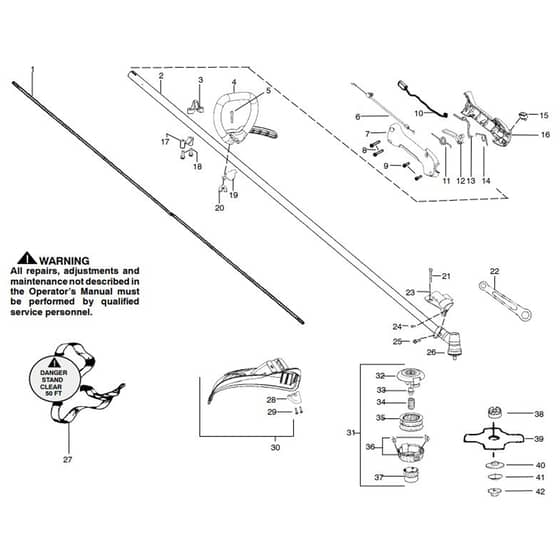

McCulloch MAC 250 L GT - 2010-03 - Shaft & Handle (1) Parts Diagram

Description

McCulloch MAC 250 L GT - 2010-03 - Shaft & Handle (1) Parts Diagram

	Part No.	Details
1	HV530 09 62-03 Available to backorder	Flex Shaft W/Stop	£46.07 £38.39
2	HV545 00 80-18 Available to backorder	Tube Driveshaft	£103.44 £86.20
3	HV530 05 79-86 Available to backorder	Clamp	£5.90 £4.92
5	HV530 01 58-20 Available to backorder	Screw	£3.59 £2.99
6	HV545 04 43-01 Available to backorder	Assembly	£4.55 £3.79
7	HV545 01 29-02 Available to backorder	Hsg Throttle Right Black	£12.32 £10.27
8	HV530 01 64-06 Available to backorder	Screw	£2.30 £1.92
10	HV545 05 88-01 Available to backorder	Assy Switch Wire	£27.91 £23.26
11	HV545 06 72-01 Available to backorder	Spring	£3.46 £2.88
12	HV545 01 30-01 Available to backorder	Throttle Trigger Red	£8.69 £7.24
13	HV545 01 31-01 Available to backorder	Throttle Lockout Red	£6.23 £5.19
15	HV530 06 95-72 Available to backorder	Switch	£16.31 £13.59
16	HV545 01 32-01 Available to backorder	Hsg Throttle Lh Black Euro	£20.11 £16.76
17	HV530 05 79-87 Available to backorder	Clamp	£3.78 £3.15
18	HV530 01 59-40 Available to backorder	Screw	£2.84 £2.37
19	HV530 05 91-85 Available to backorder	Clamp	£1.28 £1.07
20	HV530 09 13-73 Available to backorder	Wing Nut	£3.73 £3.11
21	HV530 01 57-71 Available to backorder	Screw	£2.83 £2.36
22	HV530 05 64-01 Available to backorder	Wrench	£1.87 £1.56
23	HV575 96 34-01 Available to backorder	Bracket	£8.45 £7.04
24	HV530 01 57-75 Available to backorder	Screw	£2.30 £1.92
25	HV530 01 60-14 Available to backorder	Screw	£2.30 £1.92
26	HV574 80 97-01 Available to backorder	Gearbox	£76.68 £63.90
28	HV530 05 22-86 Available to backorder	Line	£5.76 £4.80
29	HV530 01 58-14 Available to backorder	Screw	£1.78 £1.48
31	HV596 58 58-05 Available to backorder	Trimmer Head	£35.00 £29.17
34	HV537 33 88-01 Available to backorder	Spring	£4.57 £3.81
35	HV530 09 63-28 Available to backorder	Assy Spool (Incl. Line)	£13.63 £11.36
36	HV523 07 26-01 Available to backorder	Eyelet	£9.11 £7.59
37	HV537 41 96-01 Available to backorder	Knob	£8.34 £6.95
38	HV530 09 58-15 Available to backorder	Cup	£14.62 £12.18
40	HV530 09 58-16 Available to backorder	Washer	£12.18 £10.15
41	HV530 01 62-40 Available to backorder	Washer	£4.36 £3.63
42	HV530 01 57-93 Available to backorder	Nut	£5.36 £4.47
