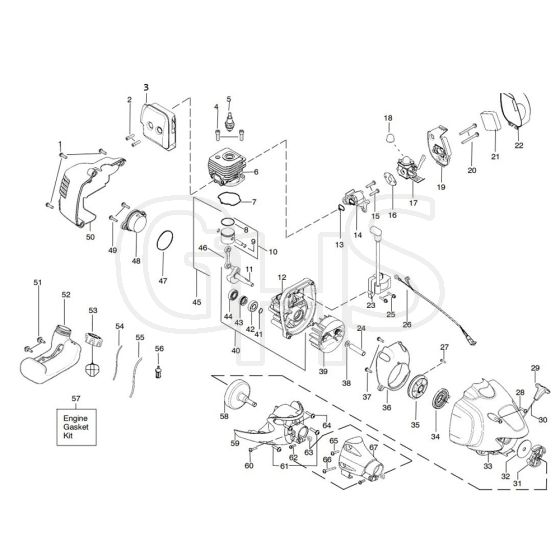

McCulloch MAC 250 L GT - 2010-03 - Engine (2) Parts Diagram

Name: McCulloch MAC 250 L GT - 2010-03 - Engine (2) Parts Diagram
SKU: mac_250_l_gt_2010_03_engine_2_-group
Price: 1.45 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MAC 250 L GT - 2010-03 - Engine (2) Parts Diagram

Description

McCulloch MAC 250 L GT - 2010-03 - Engine (2) Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV530 05 87-09 Out of stock	Bulb	£11.63 £9.69
1	HV530 01 58-80 Out of stock	Screw	£1.99 £1.66
2	HV530 05 89-82 Out of stock	Bolt	£2.48 £2.07
4	HV530 01 59-53 Out of stock	Screw	£2.48 £2.07
5	9411 In stock	Spark Plug	£3.36 £2.80
6	HV530 01 25-41 Out of stock	Cylinder	£51.44 £42.87
8	HV545 15 40-01 Out of stock	Piston Ring	£6.94 £5.78
9	HV530 01 51-62 Out of stock	Circlip	£2.23 £1.86
10	HV530 07 18-33 Out of stock	Kit	£29.52 £24.60
12	HV530 01 25-82 Out of stock	Crankcase	£64.39 £53.66
13	HV530 07 17-50 Out of stock	Gasket Kit	£21.12 £17.60
14	HV530 05 75-47 Out of stock	Adapter	£14.62 £12.18
17	HV530 07 18-22 Out of stock	Carburettor	£59.81 £49.84
20	HV530 01 64-29 Out of stock	Screw	£2.98 £2.48
21	HV530 03 65-75 Out of stock	Air Filter	£7.21 £6.01
23	HV530 03 55-05 Out of stock	Ignition Module	£49.72 £41.43
24	HV530 05 97-58 Out of stock	Spacer	£6.70 £5.58
26	HV545 05 48-01 Out of stock	Wire Assy	£25.57 £21.31
28	HV530 01 63-86 Out of stock	Screw	£1.74 £1.45
31	HV530 05 51-22 Out of stock	Clutch Assy	£55.46 £46.22
32	HV530 09 41-89 Out of stock	Washer	£9.95 £8.29
34	HV545 00 80-11 Out of stock	Spring	£18.25 £15.21
35	HV545 08 18-52 Out of stock	Kit	£19.16 £15.97
36	HV530 05 75-48 Out of stock	Baffle	£7.24 £6.03
38	HV530 01 64-63 Out of stock	Washer	£2.48 £2.07
39	HV530 03 92-43 Out of stock	Flywheel Assy	£60.12 £50.10
43	HV530 01 92-64 Out of stock	Seal	£5.94 £4.95
44	HV530 03 21-25 Out of stock	Bearing	£10.82 £9.02
46	HV530 04 98-17 Out of stock	Connecting Rod	£22.01 £18.34
48	HV530 05 79-54 Out of stock	Plug	£6.17 £5.14
51	HV530 01 64-45 Out of stock	Screw Fuel Tank Retainer	£2.48 £2.07
52	HV545 10 37-02 Out of stock	Fuel Tank Assy	£50.10 £41.75
53	HV578 93 16-05 Out of stock	Assy Fuel Cap W/Retainer	£9.95 £8.29
54	HV530 06 92-47 Out of stock	Hose	£7.31 £6.09
55	HV530 06 92-16 Out of stock	Fuel Hose	£10.97 £9.14
56	HV530 09 56-46 In stock	Filter	£6.94 £5.78
58	HV530 15 02-47 Out of stock	Clutch Drum	£50.42 £42.02
59	HV545 07 73-01 Out of stock	Clutch Cover Assy	£43.16 £35.97
64	HV530 01 58-14 Out of stock	Screw	£1.74 £1.45
