McCulloch MAC 250 B GT - 2010-03 - Shaft & Handle (1) Parts Diagram

Name: McCulloch MAC 250 B GT - 2010-03 - Shaft & Handle (1) Parts Diagram
SKU: mac_250_b_gt_2010_03_shaft_handle_1_-group
Price: 0.75 GBP
Availability: InStock

Part No. mac_250_b_gt_2010_03_shaft_handle_1_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch MAC 250 B GT - 2010-03 - Shaft & Handle (1) Parts Diagram

Description

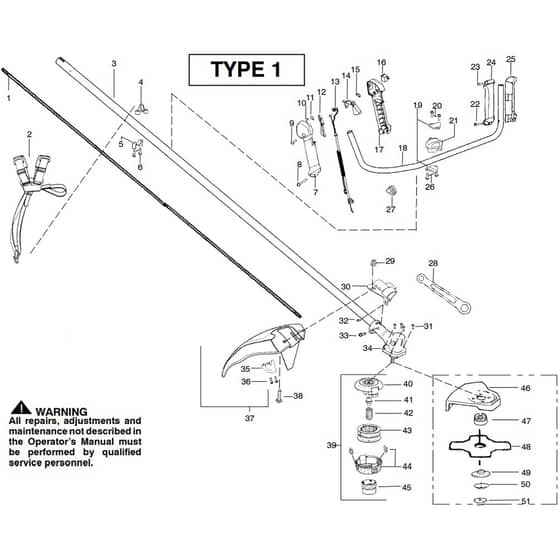

McCulloch MAC 250 B GT - 2010-03 - Shaft & Handle (1) Parts Diagram

	Part No.	Details
1	HV530 09 62-03 Available to backorder	Flex Shaft W/Stop	£46.07 £38.39
4	HV530 05 79-86 Available to backorder	Clamp	£5.90 £4.92
5	HV545 05 66-01 Available to backorder	Clamp	£7.06 £5.88
10	HV545 16 52-01 Available to backorder	Spring	£3.32 £2.77
12	HV545 15 94-01 Available to backorder	Throttle Lockout	£7.06 £5.88
14	HV545 15 95-01 Available to backorder	Trigger	£6.23 £5.19
16	HV530 06 95-72 Available to backorder	Switch	£16.31 £13.59
19	HV530 05 85-63 Available to backorder	Bracket	£1.28 £1.07
20	HV530 01 58-86 Available to backorder	Screw	£2.05 £1.71
22	HV530 01 64-06 Available to backorder	Screw	£2.30 £1.92
23	HV530 01 59-34 Available to backorder	Screw	£2.05 £1.71
26	HV530 01 59-40 Available to backorder	Screw	£2.84 £2.37
27	HV502 21 12-01 Available to backorder	Staple	£0.90 £0.75
28	HV530 05 64-01 Available to backorder	Wrench	£1.87 £1.56
29	HV530 01 51-97 Available to backorder	Nut	£2.00 £1.67
30	HV545 15 07-01 Available to backorder	Bracket	£8.34 £6.95
31	HV530 01 63-12 Available to backorder	Screw	£2.05 £1.71
32	HV530 01 57-75 Available to backorder	Screw	£2.30 £1.92
33	HV530 01 60-14 Available to backorder	Screw	£2.30 £1.92
34	HV530 09 61-00 Available to backorder	Gearbox	£74.64 £62.20
36	HV530 01 58-14 Available to backorder	Screw	£1.78 £1.48
38	HV530 01 58-20 Available to backorder	Screw	£3.59 £2.99
39	HV596 58 58-05 Available to backorder	Trimmer Head	£35.00 £29.17
42	HV537 33 88-01 Available to backorder	Spring	£4.57 £3.81
43	HV530 09 63-28 Available to backorder	Assy Spool (Incl. Line)	£13.63 £11.36
44	HV523 07 26-01 Available to backorder	Eyelet	£9.11 £7.59
45	HV537 41 96-01 Available to backorder	Knob	£8.34 £6.95
47	HV530 09 58-15 Available to backorder	Cup	£14.62 £12.18
49	HV530 09 58-16 Available to backorder	Washer	£12.18 £10.15
50	HV530 01 62-40 Available to backorder	Washer	£4.36 £3.63
51	HV530 01 57-93 Available to backorder	Nut	£5.36 £4.47
