McCulloch M9566X - 96021002303 - 2013-05 - Mower Deck - Cutting Deck Parts Diagram

Name: McCulloch M9566X - 96021002303 - 2013-05 - Mower Deck - Cutting Deck Parts Diagram
SKU: m9566x_96021002303_2013_05_mower_deck_cutting_deck-group
Price: 1.16 GBP
Availability: InStock

Part No. m9566x_96021002303_2013_05_mower_deck_cutting_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M9566X - 96021002303 - 2013-05 - Mower Deck - Cutting Deck Parts Diagram

Description

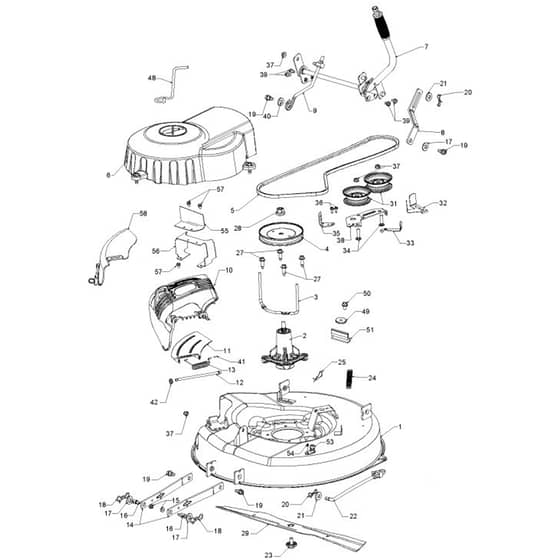

McCulloch M9566X - 96021002303 - 2013-05 - Mower Deck - Cutting Deck Parts Diagram

	Part No.	Details
2	HV587 81 97-01 Available to backorder	Mandrel	£158.64 £132.20
3	HV589 67 61-03 Available to backorder	Keeper	£13.03 £10.86
4	HV532 43 25-94 Available to backorder	Pulley	£24.66 £20.55
5	HV532 42 85-78 Available to backorder	Belt	£54.35 £45.29
7	HV532 43 86-91 Available to backorder	Lifting Lever Assy	£74.52 £62.10
12	HV595 29 70-01 In stock	Shaft	£10.15 £8.46
13	HV532 19 70-26 Available to backorder	Torsion Spring	£11.74 £9.78
15	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
16	HV532 19 51-61 Available to backorder	Stud	£2.94 £2.45
17	HV819 19 19-12 Available to backorder	Washer	£3.85 £3.21
18	HV532 19 42-09 Available to backorder	Spring	£3.74 £3.12
19	HV532 19 65-39 Available to backorder	Bolt	£6.40 £5.33
20	HV532 19 42-08 Available to backorder	Pin	£1.39 £1.16
21	HV819 17 19-12 Available to backorder	Washer	£4.63 £3.86
23	HV584 30 93-01 Available to backorder	Screw	£13.87 £11.56
24	HV532 42 95-31 Available to backorder	Spring	£14.71 £12.26
25	HV532 00 44-97 Available to backorder	Retainer Ring	£1.49 £1.24
27	HV584 95 39-01 Available to backorder	Screw	£5.88 £4.90
28	HV596 13 48-01 Available to backorder	Nut	£1.51 £1.26
29	HV532 43 90-52 Available to backorder	Blade	£54.68 £45.57
31	HV532 17 79-68 Available to backorder	Pulley	£61.00 £50.83
33	HV532 19 34-14 Available to backorder	Belt Guide	£7.06 £5.88
34	HV596 13 61-01 Available to backorder	Bolt	£3.97 £3.31
35	HV532 40 01-30 Available to backorder	Arm	£21.53 £17.94
36	HV532 13 77-29 In stock	Screw	£2.22 £1.85
37	HV532 40 91-49 Available to backorder	Nut	£4.82 £4.02
39	HV817 49 05-08 Available to backorder	Screw	£3.59 £2.99
40	HV734 11 78-01 Available to backorder	Washer	£3.59 £2.99
41	HV532 10 53-04 Available to backorder	Hub Cap	£3.52 £2.93
42	HV532 11 04-52 Available to backorder	Nut	£2.09 £1.74
48	HV532 43 86-10 Available to backorder	Keeper	£6.56 £5.47
49	HV532 19 90-92 Available to backorder	Spacer	£5.75 £4.79
50	HV817 00 06-16 Available to backorder	Screw	£6.02 £5.02
51	HV532 40 47-42 Available to backorder	Damping Piece	£12.18 £10.15
53	HV532 41 55-98 In stock	Hose Coupling	£5.20 £4.33
54	HV532 15 29-27 In stock	Screw	Was £2.58 £2.15 Special Price £1.78 £1.48
57	HV817 60 04-06 Available to backorder	Screw	£1.78 £1.48
