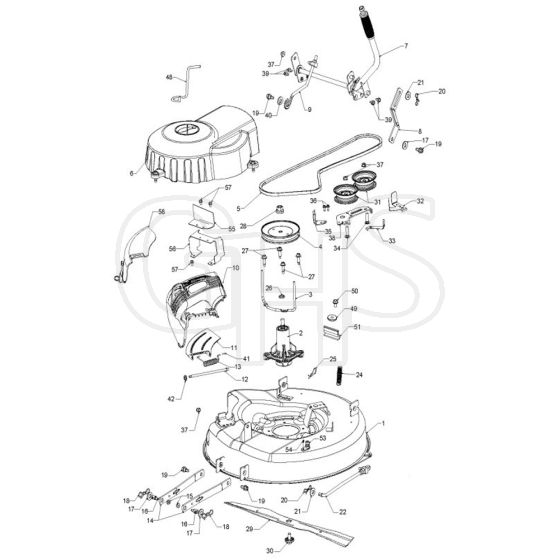

McCulloch M95-66X - 96021002300 - 2011-12 - Mower Deck - Cutting Deck Parts Diagram

Name: McCulloch M95-66X - 96021002300 - 2011-12 - Mower Deck - Cutting Deck Parts Diagram
SKU: m95_66x_96021002300_2011_12_mower_deck_cutting_deck-group
Price: 1.37 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M95-66X - 96021002300 - 2011-12 - Mower Deck - Cutting Deck Parts Diagram

Description

McCulloch M95-66X - 96021002300 - 2011-12 - Mower Deck - Cutting Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 19 28-70 Available to backorder	Spindle	£158.62 £132.18
3	HV589 67 61-03 Available to backorder	Keeper	£12.60 £10.50
4	HV532 43 25-94 Available to backorder	Pulley	£24.88 £20.73
5	HV532 42 85-78 Available to backorder	Belt	£52.54 £43.78
12	HV595 29 70-01 Available to backorder	Shaft	£9.46 £7.88
13	HV532 19 70-26 In stock	Torsion Spring	£11.52 £9.60
15	HV873 90 05-00 Available to backorder	Nut	£2.72 £2.27
16	HV532 19 51-61 Available to backorder	Stud	£2.98 £2.48
17	HV819 19 19-12 Available to backorder	Washer	£4.66 £3.88
18	HV532 19 42-09 In stock	Spring	£4.44 £3.70
19	HV532 19 65-39 Available to backorder	Bolt	£6.18 £5.15
20	HV532 19 42-08 Available to backorder	Pin	£1.64 £1.37
21	HV819 17 19-12 Available to backorder	Washer	£4.66 £3.88
24	HV532 42 95-31 Available to backorder	Spring	£14.22 £11.85
25	HV532 00 44-97 Available to backorder	Retainer Ring	£1.76 £1.47
26	HV532 18 76-90 Available to backorder	Washer	£3.54 £2.95
27	HV584 95 39-01 Available to backorder	Screw	£5.44 £4.53
29	HV532 43 90-52 Available to backorder	Blade	£52.86 £44.05
30	HV532 19 30-03 In stock	Screw	£15.85 £13.21
31	HV532 17 79-68 Available to backorder	Pulley	£58.94 £49.12
33	HV532 19 34-14 Available to backorder	Belt Guide	£7.12 £5.93
34	HV596 13 61-01 Available to backorder	Bolt	£6.54 £5.45
35	HV532 40 01-30 Available to backorder	Arm	£20.82 £17.35
36	HV532 13 77-29 Available to backorder	Screw	£2.52 £2.10
37	HV532 40 91-49 Available to backorder	Nut	£4.68 £3.90
39	HV817 49 05-08 Available to backorder	Screw	£3.62 £3.02
40	HV734 11 78-01 Available to backorder	Washer	£3.62 £3.02
41	HV532 10 53-04 Available to backorder	Hub Cap	£3.48 £2.90
42	HV532 11 04-52 Available to backorder	Nut	£2.02 £1.68
48	HV532 43 86-10 Available to backorder	Keeper	£6.34 £5.28
49	HV532 19 90-92 Available to backorder	Spacer	£6.94 £5.78
50	HV817 00 06-16 Available to backorder	Screw	£6.34 £5.28
51	HV532 40 47-42 Available to backorder	Damping Piece	£12.28 £10.23
53	HV532 41 55-98 In stock	Hose Coupling	£6.08 £5.07
54	HV532 15 29-27 In stock	Screw	£2.58 £2.15
57	HV817 60 04-06 Available to backorder	Screw	£1.80 £1.50
