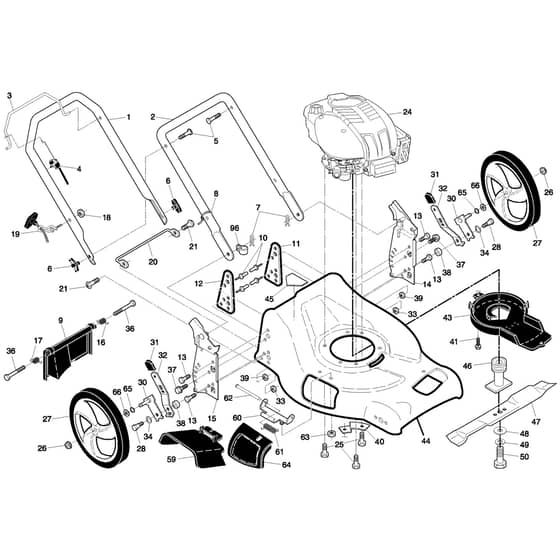

McCulloch M7053 D 07 - 96141015002 - 2008-02 - Frame Parts Diagram

Description

McCulloch M7053 D 07 - 96141015002 - 2008-02 - Frame Parts Diagram

	Part No.	Details
2	HV532 17 52-45 Available to backorder	Handle	£27.26 £22.72
3	HV583 67 82-01 Available to backorder	Control Bar	£31.42 £26.18
4	HV532 18 35-67 Available to backorder	Cable	£29.36 £24.47
5	HV532 19 15-74 Available to backorder	Screw	£5.78 £4.82
6	HV532 18 55-77 Available to backorder	Knob	£7.70 £6.42
7	HV532 05 17-93 Available to backorder	Pin	£4.74 £3.95
13	HV817 06 04-10 Available to backorder	Screw	£2.30 £1.92
14	HV532 43 45-13 Available to backorder	Handle Bracket	£55.75 £46.46
16	HV532 40 54-17 Available to backorder	Spring	£6.14 £5.12
17	HV532 40 54-18 Available to backorder	Spring	£6.14 £5.12
18	HV532 05 06-75 Available to backorder	Nut	£2.30 £1.92
19	HV532 19 47-88 Available to backorder	Guide	£3.46 £2.88
21	HV583 60 83-01 Available to backorder	Screw	£1.79 £1.49
26	HV532 40 91-49 Available to backorder	Nut	£4.82 £4.02
27	HV532 43 27-47 Available to backorder	Wheel	£33.54 £27.95
28	HV532 40 16-38 Available to backorder	Bolt	£7.70 £6.42
31	HV532 08 78-77 Available to backorder	Knob	£5.02 £4.18
32	HV532 40 16-26 Available to backorder	Selector Spring	£9.62 £8.02
33	HV596 04 05-01 Available to backorder	Lock Nut	£2.03 £1.69
34	HV532 40 16-30 Available to backorder	Washer	£2.83 £2.36
36	HV532 18 41-93 Available to backorder	Bolt	£7.70 £6.42
37	HV874 78 05-12 Available to backorder	Screw	£2.99 £2.49
38	HV532 40 16-29 Available to backorder	Spacer	£2.69 £2.24
39	HV532 15 53-77 Available to backorder	Nut	£2.44 £2.03
40	HV532 19 09-39 Available to backorder	Bracket	£7.70 £6.42
41	HV532 19 23-25 Available to backorder	Screw	£2.30 £1.92
43	HV583 29 72-01 Available to backorder	Belt Cover	£26.28 £21.90
46	HV583 49 99-01 Available to backorder	Adapter	£42.91 £35.76
47	HV532 19 93-77 In stock	Mower Blade	£29.36 £24.47
48	HV532 85 10-74 Available to backorder	Washer	£4.97 £4.14
49	HV596 23 87-01 Available to backorder	Washer	£2.54 £2.12
50	HV532 85 10-84 Available to backorder	Screw	£7.03 £5.86
59	HV532 17 50-71 Available to backorder	Clipping Deflector	£39.10 £32.58
60	HV532 17 57-35 Available to backorder	Hinge	£8.34 £6.95
61	HV532 19 30-00 Available to backorder	Hinge	£5.77 £4.81
62	HV532 17 56-50 Available to backorder	Rod	£5.46 £4.55
63	HV586 66 89-01 Available to backorder	Nut	£2.94 £2.45
64	HV532 17 50-66 Available to backorder	Plug	£11.89 £9.91
65	HV532 19 74-80 Available to backorder	O-Ring	£3.82 £3.18
66	HV532 08 83-48 Available to backorder	Washer	£2.30 £1.92
96	HV532 19 79-91 Available to backorder	Clip	£0.77 £0.64
