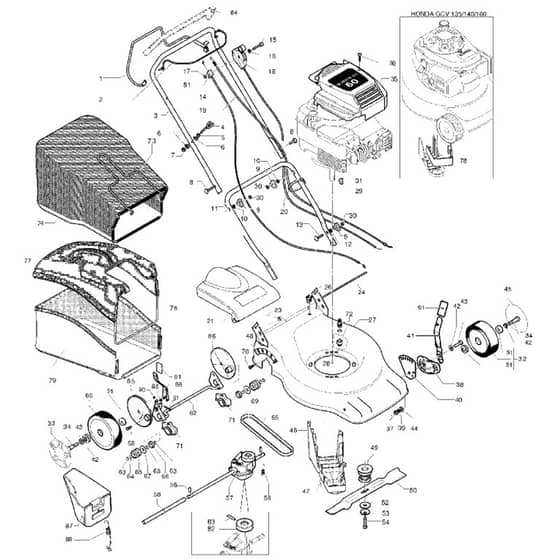

McCulloch M6051 SDW - 2009-01 - Product Complete Parts Diagram

Name: McCulloch M6051 SDW - 2009-01 - Product Complete Parts Diagram
SKU: m6051_sdw_2009_01_product_complete-group
Price: 0.55 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M6051 SDW - 2009-01 - Product Complete Parts Diagram

Description

McCulloch M6051 SDW - 2009-01 - Product Complete Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV531 20 52-08 Available to backorder	Loop	£24.58 £20.48
2	HV531 21 14-29 Available to backorder	Brake Handle	£29.12 £24.27
2	HV531 21 26-68 Available to backorder	Maniglia Freno 546-646-E460	£10.38 £8.65
3	HV531 20 52-04 Available to backorder	Handle	£46.58 £38.82
4	HV531 20 51-69 Available to backorder	Pin Retaining Screw	£2.72 £2.27
5	HV531 20 71-65 Available to backorder	Nut	£2.06 £1.72
6	HV514 02 66-00 Available to backorder	Washer	£2.28 £1.90
7	HV531 20 84-91 Available to backorder	Nut	£2.06 £1.72
8	HV531 20 70-89 Available to backorder	Screw	£7.12 £5.93
9	HV531 20 49-23 Available to backorder	Wing Nut	£4.14 £3.45
12	HV531 20 49-22 Available to backorder	Washer	£2.58 £2.15
13	HV531 20 49-21 Available to backorder	Screw	£5.04 £4.20
16	HV531 20 66-66 Available to backorder	Washer	£2.06 £1.72
17	HV531 20 52-13 Available to backorder	Nut	£1.82 £1.52
18	HV531 20 62-10 Available to backorder	Throttle Lever	£24.58 £20.48
19	HV531 21 18-47 Available to backorder	Clutch	£56.14 £46.78
20	HV531 20 55-81 Available to backorder	Clip	£0.66 £0.55
21	HV531 21 38-91 Available to backorder	Deflector	£53.28 £44.40
21	HV531 21 25-41 Available to backorder	Deflector	£45.94 £38.28
23	HV531 20 59-99 Available to backorder	Spring	£4.26 £3.55
25	HV531 20 57-32 Available to backorder	Spacer	£0.83 £0.69
26	HV531 20 55-57 Available to backorder	Grommet	£3.88 £3.23
29	HV531 20 79-81 Available to backorder	Washer	£2.34 £1.95
30	HV531 20 79-82 Available to backorder	Nut	£2.72 £2.27
31	HV531 20 49-07 In stock	Key	£1.55 £1.29
32	HV531 21 33-85 Available to backorder	Wheel	£24.94 £20.78
33	HV531 21 38-89 Available to backorder	Cover	£32.98 £27.48
34	HV531 20 50-42 Available to backorder	Screw	£8.88 £7.40
35	HV531 20 58-18 Available to backorder	Motor Cover	£11.14 £9.28
37	HV531 20 79-78 Available to backorder	Nut	£3.62 £3.02
38	HV544 45 23-01 Available to backorder	Bracket	£9.18 £7.65
39	HV531 20 89-74 Available to backorder	Washer	£2.34 £1.95
40	HV574 41 32-09 Available to backorder	Bracket	£4.98 £4.15
41	HV544 45 25-01 Available to backorder	Lever	£9.06 £7.55
42	HV531 20 60-20 Available to backorder	Washer	£2.08 £1.73
43	HV531 20 49-12 Available to backorder	Screw	£7.12 £5.93
44	HV531 20 79-89 Available to backorder	Washer	£5.06 £4.22
45	HV531 21 38-90 Available to backorder	Cover	£13.12 £10.93
46	HV544 46 23-02 Available to backorder	Belt Guard	£28.38 £23.65
47	HV531 20 78-56 Available to backorder	Screw	£1.56 £1.30
48	HV544 83 46-01 Available to backorder	Bracket	£12.36 £10.30
49	HV581 84 30-01 Available to backorder	Adapter	£20.09 £16.74
50	HV504 11 33-10 In stock	Blade	£33.66 £28.05
51	HV531 21 38-28 Available to backorder	Ball Bearing	£7.28 £6.07
52	HV525 42 31-01 Available to backorder	Washer	£3.48 £2.90
54	HV531 20 80-08 Available to backorder	Screw	£6.97 £5.81
55	HV504 03 53-01 Available to backorder	Belt	£25.98 £21.65
56	HV531 20 61-82 Available to backorder	Spring	£4.02 £3.35
59	HV531 20 51-08 Available to backorder	Key	£5.56 £4.63
60	HV531 21 33-84 Available to backorder	Wheel	£31.12 £25.93
61	HV574 61 05-01 Available to backorder	Knob	£7.12 £5.93
64	HV531 20 88-59 Available to backorder	Washer	£2.58 £2.15
65	HV531 20 50-45 Available to backorder	Pinion	£9.17 £7.64
66	HV531 20 87-78 Available to backorder	Bearing	£6.36 £5.30
67	HV525 42 29-01 Available to backorder	Washer	£2.34 £1.95
69	HV531 20 50-46 Available to backorder	Pinion	£7.73 £6.44
70	HV531 20 82-16 Available to backorder	Screw	£1.56 £1.30
71	HV531 20 59-44 Available to backorder	Support	£8.40 £7.00
72	HV531 20 58-48 Available to backorder	Connector	£9.72 £8.10
73	HV531 21 32-62 Available to backorder	Bag Frame	£55.32 £46.10
74	HV531 21 32-64 Available to backorder	Grass Catcher	£52.02 £43.35
76	HV531 21 35-88 Available to backorder	Bag	£31.04 £25.87
77	HV577 87 67-01 Available to backorder	Bag	£51.12 £42.60
78	HV504 05 66-01 Available to backorder	Protection	£7.86 £6.55
79	HV531 21 32-11 Available to backorder	Bag	£46.10 £38.42
81	HV531 20 80-43 In stock	Bracket	£1.26 £1.05
83	HV531 20 67-72 Available to backorder	Pin Retaining Screw	£4.54 £3.78
84	HV531 20 59-89 Available to backorder	Sheating	£7.72 £6.43
86	HV583 95 13-02 Available to backorder	Spring	£4.40 £3.67
88	HV581 17 86-01 Available to backorder	Lifting Lever Assy	£12.04 £10.03
89	HV531 21 11-91 Available to backorder	Spring	£5.82 £4.85
90	HV531 20 84-92 Available to backorder	Nut	£1.56 £1.30
91	HV538 23 58-07 Available to backorder	Screw	£2.84 £2.37
