McCulloch M56-675 SMDW - 96121002200 - 2011-11 - Drive Parts Diagram

Name: McCulloch M56-675 SMDW - 96121002200 - 2011-11 - Drive Parts Diagram
SKU: m56_675_smdw_96121002200_2011_11_drive-group
Price: 0.64 GBP
Availability: InStock

Part No. m56_675_smdw_96121002200_2011_11_drive-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M56-675 SMDW - 96121002200 - 2011-11 - Drive Parts Diagram

Description

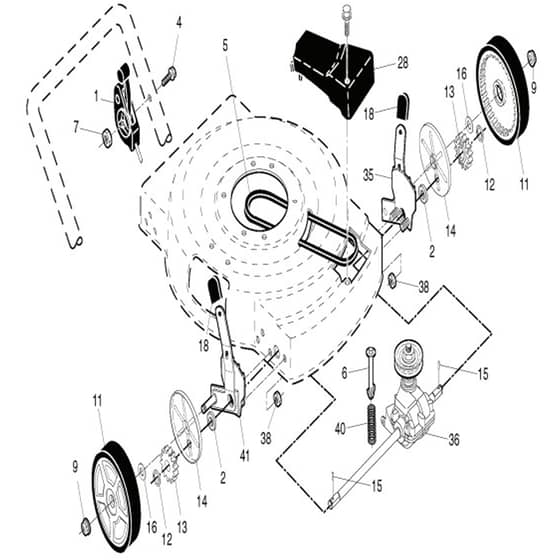

McCulloch M56-675 SMDW - 96121002200 - 2011-11 - Drive Parts Diagram

	Part No.	Details
1	HV532 18 45-88 Available to backorder	Control	£61.92 £51.60
2	HV587 07 02-02 Available to backorder	Bearing	£19.57 £16.31
4	HV532 15 87-55 Available to backorder	Screw	£4.50 £3.75
5	HV532 15 77-69 Available to backorder	Belt	£29.82 £24.85
6	HV532 15 04-95 Available to backorder	Pin Retaining Screw	£4.01 £3.34
7	HV532 19 17-30 Available to backorder	Nut	£2.30 £1.92
9	HV532 40 91-48 Available to backorder	Nut	£3.60 £3.00
11	HV583 71 94-01 Available to backorder	Wheel	£26.57 £22.14
12	HV812 00 00-58 Available to backorder	E-Clip	£0.77 £0.64
13	HV532 40 38-49 Available to backorder	Pinion	£9.98 £8.32
14	HV581 84 04-01 Available to backorder	Dust Cover	£9.62 £8.02
15	HV532 40 48-45 Available to backorder	Pawl Drive	£6.52 £5.43
16	HV532 06 77-25 Available to backorder	Washer	£8.98 £7.48
18	HV532 08 78-77 Available to backorder	Knob	£5.02 £4.18
35	HV532 43 84-85 Available to backorder	Adjuster Lh (2+18)	£32.70 £27.25
36	HV532 41 52-26 Available to backorder	Gearbox Assy	£148.68 £123.90
38	HV586 66 89-01 Available to backorder	Nut	£2.94 £2.45
40	HV532 13 70-90 Available to backorder	Spring	£3.97 £3.31
