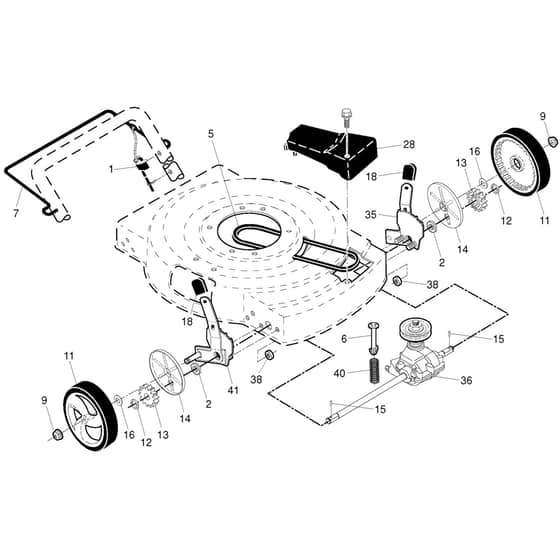

McCulloch M56-575 SMDW - 96121002100 - 2012-01 - Drive Parts Diagram

Name: McCulloch M56-575 SMDW - 96121002100 - 2012-01 - Drive Parts Diagram
SKU: m56_575_smdw_96121002100_2012_01_drive-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M56-575 SMDW - 96121002100 - 2012-01 - Drive Parts Diagram

Description

McCulloch M56-575 SMDW - 96121002100 - 2012-01 - Drive Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV532 19 46-53 Available to backorder	Control	£28.54 £23.78
2	HV587 07 02-02 Available to backorder	Bearing	£18.92 £15.77
5	HV532 15 77-69 Available to backorder	Belt	£30.12 £25.10
6	HV532 15 04-95 Available to backorder	Pin Retaining Screw	£4.08 £3.40
7	HV532 19 84-53 Available to backorder	Bar	£24.58 £20.48
9	HV532 40 91-48 Available to backorder	Nut	£3.48 £2.90
11	HV583 71 94-01 Available to backorder	Wheel	£25.68 £21.40
12	HV812 00 00-58 Available to backorder	E-Clip	£0.77 £0.64
13	HV532 40 38-49 Available to backorder	Pinion	£10.06 £8.38
14	HV581 84 04-01 Available to backorder	Dust Cover	£9.72 £8.10
15	HV532 40 48-45 Available to backorder	Pawl Drive	£6.30 £5.25
16	HV532 06 77-25 Available to backorder	Washer	£9.06 £7.55
18	HV532 08 78-77 Available to backorder	Knob	£5.04 £4.20
35	HV532 43 84-85 Available to backorder	Adjuster Lh Includes Knob And Bearing	£33.00 £27.50
36	HV532 41 52-26 Available to backorder	Gearbox Assy	£155.26 £129.38
38	HV586 66 89-01 Available to backorder	Nut	£2.98 £2.48
40	HV532 13 70-90 Available to backorder	Spring	£4.02 £3.35
