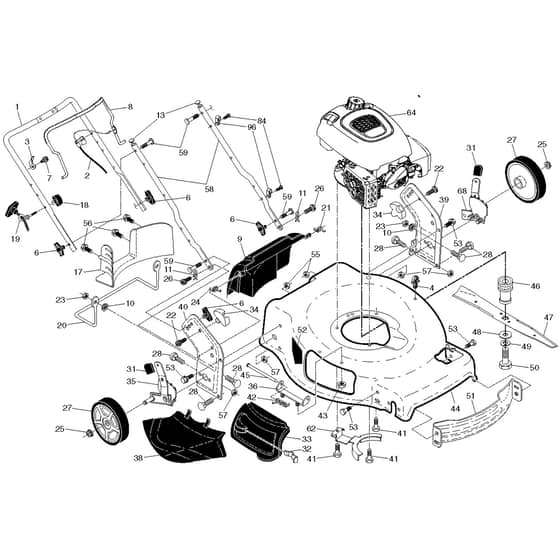

McCulloch M56-150F - 96764820100 - 2016-10 - Frame Parts Diagram

Name: McCulloch M56-150F - 96764820100 - 2016-10 - Frame Parts Diagram
SKU: m56_150f_96764820100_2016_10_frame-group
Price: 0.62 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M56-150F - 96764820100 - 2016-10 - Frame Parts Diagram

Description

McCulloch M56-150F - 96764820100 - 2016-10 - Frame Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 42 38-49 Out of stock	Bag Not Shown (Includes#6&59)	£1.43 £1.19
1	HV585 86 48-05 Out of stock	Handle	£48.48 £40.40
2	HV532 42 09-39 Out of stock	Cable	£19.28 £16.07
3	HV532 43 00-34 Out of stock	Bracket	£6.13 £5.11
4	HV532 14 50-06 Out of stock	Clip	£0.86 £0.72
6	HV532 18 55-77 Out of stock	Knob	£7.46 £6.22
7	HV532 17 88-48 Out of stock	Screw	£1.20 £1.00
11	HV532 42 55-75 Out of stock	Cotter	£0.74 £0.62
18	HV581 91 26-01 Out of stock	Knob	£5.23 £4.36
19	HV581 90 21-01 Out of stock	Guide	£4.40 £3.67
23	HV596 04 05-01 Out of stock	Nut	£2.06 £1.72
25	HV532 40 91-48 Out of stock	Nut	£3.35 £2.79
26	HV532 41 99-45 Out of stock	Screw	£5.83 £4.86
28	HV586 21 25-01 Out of stock	Bolt	£2.98 £2.48
31	HV532 70 10-37 Out of stock	Knob	£5.02 £4.18
32	HV532 44 11-92 Out of stock	Latch	£5.09 £4.24
33	HV594 94 20-02 Out of stock	Mulch Door	£20.22 £16.85
34	HV532 43 81-34 Out of stock	Bracket	£6.29 £5.24
36	HV532 17 57-35 Out of stock	Hinge	£8.09 £6.74
38	HV532 42 61-29 Out of stock	Deflector	£14.92 £12.43
39	HV585 90 07-02 Out of stock	Bracket	£19.88 £16.57
40	HV585 90 08-02 Out of stock	Bracket	£38.54 £32.12
42	HV532 19 30-00 Out of stock	Hinge	£6.85 £5.71
43	HV532 19 17-30 Out of stock	Nut	£2.23 £1.86
45	HV532 17 56-50 Out of stock	Rod	£5.29 £4.41
46	HV581 35 24-01 Out of stock	Adapter	£19.87 £16.56
47	HV586 17 98-01 Out of stock	Blade	£33.74 £28.12
48	HV532 85 10-74 Out of stock	Washer	£4.99 £4.16
49	HV596 23 87-01 Out of stock	Washer	£2.52 £2.10
50	HV532 85 10-84 Out of stock	Screw	£6.26 £5.22
51	HV532 43 05-99 Out of stock	Baffle	£48.95 £40.79
53	HV817 00 05-10 Out of stock	Bolt	£3.48 £2.90
56	HV817 41 13-12 Out of stock	Screw	£5.84 £4.87
57	HV532 15 53-77 Out of stock	Nut	£2.36 £1.97
58	HV585 90 82-02 Out of stock	Handle	£43.51 £36.26
59	HV532 19 15-74 Out of stock	Screw	£5.60 £4.67
62	HV532 42 57-11 Out of stock	Bracket	£8.20 £6.83
64	HV588 84 35-06 Out of stock	Engine Rato Rv150 10100-Z180310	£388.08 £323.40
84	HV532 42 81-24 Out of stock	Fastener	£7.55 £6.29
96	HV532 19 79-91 Out of stock	Clip	£0.74 £0.62
