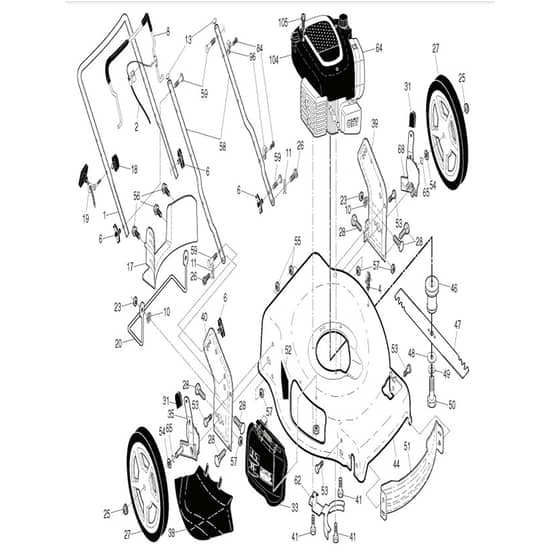

McCulloch M56-140WF - 96121002506 - 2018-08 - Frame Parts Diagram

Name: McCulloch M56-140WF - 96121002506 - 2018-08 - Frame Parts Diagram
SKU: m56_140wf_96121002506_2018_08_frame-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M56-140WF - 96121002506 - 2018-08 - Frame Parts Diagram

Description

McCulloch M56-140WF - 96121002506 - 2018-08 - Frame Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 42 38-49 Available to backorder	Bag Not Shown (Includes#6&59)	£1.46 £1.22
2	HV532 42 09-39 Available to backorder	Cable	£20.06 £16.72
4	HV532 14 50-06 Available to backorder	Clip	£0.92 £0.77
6	HV532 18 55-77 Available to backorder	Knob	£7.76 £6.47
8	HV587 68 93-03 Available to backorder	Bail Arm Assy	£13.58 £11.32
11	HV532 42 55-75 Available to backorder	Cotter	£0.77 £0.64
18	HV581 91 26-01 In stock	Knob	£5.44 £4.53
19	HV581 90 21-01 Available to backorder	Guide	£4.58 £3.82
23	HV596 04 05-01 Available to backorder	Nut	£2.06 £1.72
25	HV532 40 91-49 Available to backorder	Nut	£4.68 £3.90
26	HV532 41 99-45 Available to backorder	Screw	£6.08 £5.07
27	HV581 01 03-05 Available to backorder	Wheel Assy	£34.00 £28.33
28	HV586 21 25-01 Available to backorder	Bolt	£3.12 £2.60
31	HV532 08 78-77 Available to backorder	Knob	£5.04 £4.20
35	HV532 43 11-40 Available to backorder	Adjuster	£29.12 £24.27
38	HV532 42 61-29 Available to backorder	Deflector	£15.54 £12.95
39	HV585 90 07-02 Available to backorder	Bracket	£20.72 £17.27
40	HV585 90 08-02 Available to backorder	Bracket	£40.12 £33.43
44	HV581 06 21-01 Available to backorder	Housing Assy	£200.64 £167.20
46	HV581 35 24-01 Available to backorder	Adapter	£20.48 £17.07
47	HV580 24 40-02 Available to backorder	Blade	£36.28 £30.23
48	HV532 85 10-74 Available to backorder	Washer	£4.80 £4.00
49	HV596 23 87-01 Available to backorder	Washer	£2.65 £2.21
50	HV532 85 10-84 Available to backorder	Screw	£6.97 £5.81
51	HV532 43 05-99 Available to backorder	Baffle	£50.94 £42.45
53	HV817 00 05-10 Available to backorder	Bolt	£3.62 £3.02
54	HV532 08 83-48 Available to backorder	Washer	£2.34 £1.95
55	HV532 19 17-30 Available to backorder	Nut	£2.34 £1.95
56	HV817 41 13-12 Available to backorder	Screw	£5.84 £4.87
57	HV532 15 53-77 Available to backorder	Nut	£2.46 £2.05
59	HV532 19 15-74 Available to backorder	Screw	£5.82 £4.85
62	HV532 42 57-11 Available to backorder	Bracket	£8.52 £7.10
65	HV532 19 74-80 Available to backorder	O-Ring	£3.84 £3.20
68	HV532 43 11-41 Available to backorder	Adjuster	£29.12 £24.27
84	HV532 42 81-24 Available to backorder	Fastener	£7.86 £6.55
96	HV532 19 79-91 Available to backorder	Clip	£0.77 £0.64
104	HV580 44 56-01 Available to backorder	Shroud	£27.18 £22.65
105	HV532 18 16-98 Available to backorder	Screw	£1.82 £1.52
