McCulloch M55H53 RD - 96141010700 - 2008-09 - Frame Parts Diagram

Description

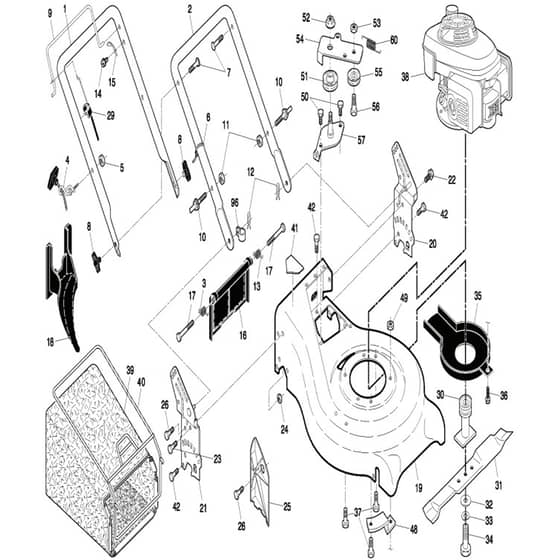

McCulloch M55H53 RD - 96141010700 - 2008-09 - Frame Parts Diagram

	Part No.	Details
2	HV532 19 60-05 Available to backorder	Handle	£32.54 £27.12
4	HV532 19 47-88 Available to backorder	Guide	£3.46 £2.88
5	HV532 05 06-75 Available to backorder	Nut	£2.30 £1.92
7	HV532 19 15-74 Available to backorder	Screw	£5.78 £4.82
8	HV532 08 76-92 Available to backorder	Knob	£10.26 £8.55
10	HV532 18 88-21 Available to backorder	Bolt	£5.24 £4.37
11	HV873 93 05-00 Available to backorder	Nut	£2.30 £1.92
12	HV532 05 17-93 Available to backorder	Pin	£4.74 £3.95
14	HV532 75 06-34 Available to backorder	Screw	£1.56 £1.30
15	HV532 85 07-33 Available to backorder	Plate	£6.01 £5.01
17	HV532 18 41-93 Available to backorder	Bolt	£7.70 £6.42
18	HV532 19 81-70 Available to backorder	Plug	£46.14 £38.45
22	HV532 42 88-67 Available to backorder	Screw	£3.97 £3.31
23	HV532 16 31-83 Available to backorder	Bolt	£3.59 £2.99
24	HV596 04 05-01 Available to backorder	Lock Nut	£2.03 £1.69
25	HV532 16 13-33 Available to backorder	Plate	£10.37 £8.64
26	HV532 16 34-09 Available to backorder	Screw	£1.56 £1.30
29	HV532 19 12-21 Available to backorder	Cable	£23.92 £19.93
30	HV532 42 11-76 Available to backorder	Adapter	£39.35 £32.79
31	HV532 19 93-77 In stock	Mower Blade	£29.36 £24.47
32	HV532 85 10-74 Available to backorder	Washer	£4.97 £4.14
33	HV596 23 87-01 Available to backorder	Washer	£2.54 £2.12
34	HV532 85 10-84 Available to backorder	Screw	£7.03 £5.86
36	HV532 19 23-25 Available to backorder	Screw	£2.30 £1.92
40	HV532 19 46-44 Available to backorder	Frame	£60.24 £50.20
48	HV532 19 09-39 Available to backorder	Bracket	£7.70 £6.42
52	HV532 40 91-49 Available to backorder	Nut	£4.82 £4.02
55	HV532 16 60-43 Available to backorder	Pulley	£13.55 £11.29
56	HV532 16 08-29 Available to backorder	Bolt	£7.06 £5.88
60	HV532 40 65-58 Available to backorder	Spring	£3.74 £3.12
96	HV532 19 79-91 Available to backorder	Clip	£0.77 £0.64
