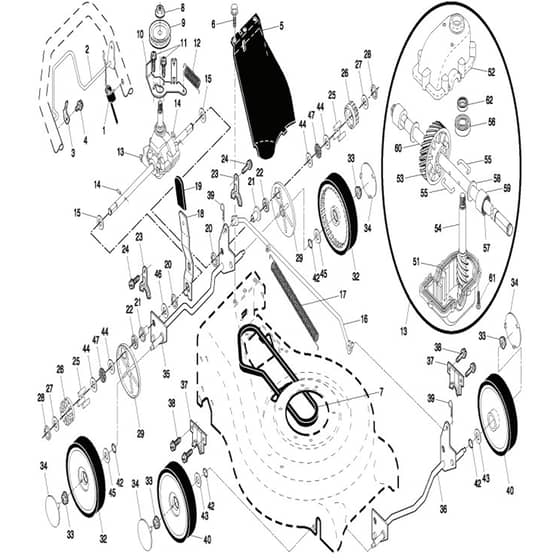

McCulloch M553 CM - 96141011100 - 2007-04 - Drive Parts Diagram

Name: McCulloch M553 CM - 96141011100 - 2007-04 - Drive Parts Diagram
SKU: m553_cm_96141011100_2007_04_drive-group
Price: 0.64 GBP
Availability: InStock

Part No. m553_cm_96141011100_2007_04_drive-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M553 CM - 96141011100 - 2007-04 - Drive Parts Diagram

Description

McCulloch M553 CM - 96141011100 - 2007-04 - Drive Parts Diagram

	Part No.	Details
1	HV532 40 59-95 Available to backorder	Wire	£42.94 £35.78
3	HV532 16 14-78 Available to backorder	Stop	£7.70 £6.42
4	HV532 75 06-34 Available to backorder	Screw	£1.56 £1.30
5	HV583 72 83-01 Available to backorder	Cover	£8.02 £6.68
7	HV532 16 08-16 Available to backorder	Belt	£24.58 £20.48
11	HV532 16 34-09 Available to backorder	Screw	£1.56 £1.30
13	HV532 18 82-95 Available to backorder	Gearbox	£138.84 £115.70
15	HV532 05 70-79 Available to backorder	Washer	£2.30 £1.92
17	HV532 40 96-16 Available to backorder	Spring	£15.38 £12.82
18	HV532 41 88-35 Available to backorder	Control	£16.04 £13.37
19	HV532 19 00-69 Available to backorder	Knob	£7.06 £5.88
20	HV812 00 00-22 Available to backorder	Retainer Ring	£0.90 £0.75
22	HV532 16 99-11 Available to backorder	Ball Bearing	£6.44 £5.37
23	HV532 16 11-18 Available to backorder	Bracket	£5.18 £4.32
25	HV532 17 00-11 Available to backorder	Pin Retaining Screw	£3.84 £3.20
26	HV532 16 64-50 Available to backorder	Pinion	£14.24 £11.87
27	HV532 05 21-60 Available to backorder	Washer	£2.56 £2.13
28	HV812 00 00-58 Available to backorder	E-Clip	£0.77 £0.64
29	HV581 84 04-01 Available to backorder	Dust Cover	£9.62 £8.02
32	HV532 19 31-39 Available to backorder	Wheel	£27.71 £23.09
33	HV532 40 91-49 Available to backorder	Nut	£4.82 £4.02
34	HV583 15 49-01 Available to backorder	Hub Cap	£8.34 £6.95
35	HV532 40 31-02 Available to backorder	Shaft	£76.56 £63.80
39	HV532 70 02-79 Available to backorder	Clip	£0.85 £0.71
40	HV532 43 52-76 Available to backorder	Wheel	£20.14 £16.78
42	HV532 19 74-80 Available to backorder	O-Ring	£3.82 £3.18
43	HV532 08 83-48 Available to backorder	Washer	£2.30 £1.92
44	HV532 06 23-35 Available to backorder	Washer	£2.83 £2.36
45	HV532 06 77-25 Available to backorder	Washer	£8.98 £7.48
46	HV819 57 22-16 Available to backorder	Washer	£3.59 £2.99
47	HV532 08 81-18 Available to backorder	Washer	£2.56 £2.13
53	HV532 18 75-32 Available to backorder	Pinion	£31.38 £26.15
55	HV532 18 35-05 Available to backorder	Wire Formed	£10.90 £9.08
57	HV532 18 35-08 Available to backorder	Seal Output Shaft	£7.79 £6.49
59	HV532 18 35-11 Available to backorder	Bushing	£8.98 £7.48
