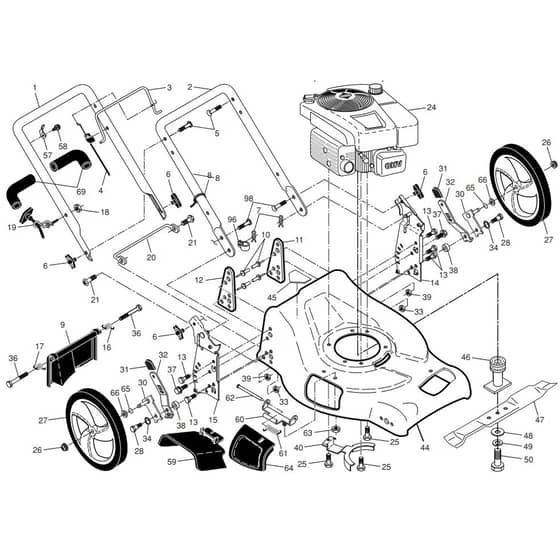

McCulloch M53-875 DWA - 96141025400 - 2011-11 - Frame Parts Diagram

Name: McCulloch M53-875 DWA - 96141025400 - 2011-11 - Frame Parts Diagram
SKU: m53_875_dwa_96141025400_2011_11_frame-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M53-875 DWA - 96141025400 - 2011-11 - Frame Parts Diagram

Description

McCulloch M53-875 DWA - 96141025400 - 2011-11 - Frame Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV583 13 45-01 Available to backorder	Handle Half	£48.20 £40.17
2	HV532 43 45-14 Available to backorder	Handle	£51.12 £42.60
4	HV532 41 53-50 In stock	Control Cable	£19.20 £16.00
5	HV532 19 15-74 Available to backorder	Screw	£5.82 £4.85
6	HV532 18 55-77 Available to backorder	Knob	£7.76 £6.47
7	HV532 05 17-93 Available to backorder	Pin	£4.78 £3.98
13	HV817 06 04-10 Available to backorder	Screw	£2.34 £1.95
14	HV532 43 45-13 Available to backorder	Bracket Lh	£56.28 £46.90
16	HV532 40 54-17 Available to backorder	Spring	£6.20 £5.17
17	HV532 40 54-18 Available to backorder	Spring	£6.20 £5.17
18	HV532 05 06-75 Available to backorder	Nut	£2.34 £1.95
19	HV532 19 47-88 Available to backorder	Guide	£3.42 £2.85
20	HV532 43 61-19 Available to backorder	Guard	£24.88 £20.73
21	HV583 60 83-01 Available to backorder	Screw	£1.82 £1.52
26	HV532 40 91-49 Available to backorder	Nut	£4.68 £3.90
27	HV532 43 27-49 Available to backorder	Wheel Assy	£33.24 £27.70
28	HV532 40 16-38 Available to backorder	Bolt	£7.76 £6.47
31	HV532 08 78-77 Available to backorder	Knob	£5.04 £4.20
32	HV532 40 16-26 Available to backorder	Selector Spring	£9.72 £8.10
33	HV596 04 05-01 Available to backorder	Lock Nut	£2.06 £1.72
34	HV532 40 16-30 Available to backorder	Washer	£2.84 £2.37
36	HV532 18 41-93 Available to backorder	Bolt	£7.76 £6.47
37	HV874 78 05-12 Available to backorder	Screw	£3.04 £2.53
38	HV532 40 16-29 Available to backorder	Spacer	£2.72 £2.27
39	HV532 15 53-77 Available to backorder	Nut	£2.46 £2.05
40	HV532 42 57-11 Available to backorder	Bracket	£8.52 £7.10
46	HV583 47 80-01 Available to backorder	Adapter	£46.82 £39.02
47	HV532 19 93-77 Available to backorder	Mower Blade	£34.40 £28.67
48	HV532 85 10-74 Available to backorder	Washer	£4.80 £4.00
49	HV596 23 87-01 Available to backorder	Washer	£2.65 £2.21
50	HV532 85 10-84 Available to backorder	Screw	£6.97 £5.81
57	HV532 43 00-34 Available to backorder	Bracket	£6.13 £5.11
58	HV532 17 88-48 Available to backorder	Screw	£1.20 £1.00
59	HV532 17 50-71 Available to backorder	Clipping Deflector	£39.46 £32.88
60	HV532 17 57-35 Available to backorder	Hinge	£8.40 £7.00
61	HV532 19 30-00 Available to backorder	Hinge	£7.12 £5.93
62	HV532 17 56-50 Available to backorder	Rod	£5.52 £4.60
63	HV586 66 89-01 Available to backorder	Nut	£2.98 £2.48
64	HV532 17 50-66 Available to backorder	Plug	£11.80 £9.83
65	HV532 19 74-80 Available to backorder	O-Ring	£3.84 £3.20
66	HV532 08 83-48 Available to backorder	Washer	£2.34 £1.95
96	HV532 19 79-91 Available to backorder	Clip	£0.77 £0.64
98	HV596 13 64-01 Available to backorder	Bolt	£3.26 £2.72
