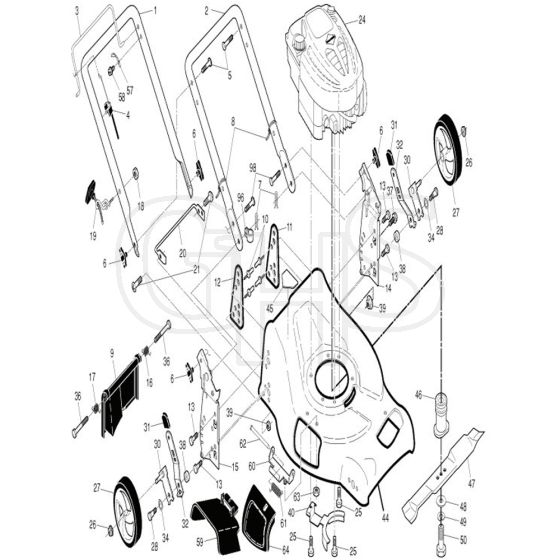

McCulloch M53-625 D - 96141025600 - 2012-01 - Frame Parts Diagram

Name: McCulloch M53-625 D - 96141025600 - 2012-01 - Frame Parts Diagram
SKU: m53_625_d_96141025600_2012_01_frame-group
Price: 0.62 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M53-625 D - 96141025600 - 2012-01 - Frame Parts Diagram

Description

McCulloch M53-625 D - 96141025600 - 2012-01 - Frame Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 43 45-14 Out of stock	Handle	£49.12 £40.93
3	HV532 19 84-64 Out of stock	Control	£17.34 £14.45
4	HV532 18 35-67 Out of stock	Cable	£27.97 £23.31
5	HV532 19 15-74 Out of stock	Screw	£5.60 £4.67
6	HV532 18 55-77 Out of stock	Knob	£7.46 £6.22
7	HV532 05 17-93 Out of stock	Pin	£4.60 £3.83
10	HV532 12 84-15 Out of stock	Rivet	£2.68 £2.23
13	HV817 06 04-10 Out of stock	Screw	£2.23 £1.86
16	HV532 40 54-17 Out of stock	Spring Lh	£6.01 £5.01
17	HV532 40 54-18 Out of stock	Spring Rh	£6.01 £5.01
18	HV532 05 06-75 Out of stock	Nut	£2.23 £1.86
19	HV532 19 47-88 Out of stock	Guide	£3.52 £2.93
20	HV532 43 61-19 Out of stock	Guard	£23.92 £19.93
21	HV583 60 83-01 Out of stock	Screw	£1.74 £1.45
26	HV532 40 91-48 Out of stock	Nut	£3.35 £2.79
27	HV532 40 61-55 Out of stock	Wheel	£24.91 £20.76
28	HV532 40 16-38 Out of stock	Bolt	£7.46 £6.22
31	HV532 08 78-77 Out of stock	Knob	£4.86 £4.05
34	HV532 40 16-30 Out of stock	Washer	£2.76 £2.30
36	HV532 18 41-93 Out of stock	Bolt	£7.46 £6.22
38	HV532 40 16-29 Out of stock	Spacer	£2.60 £2.17
39	HV532 15 53-77 Out of stock	Nut	£2.36 £1.97
46	HV583 49 99-01 Out of stock	Adapter	£41.77 £34.81
47	HV532 19 93-77 In stock	Mower Blade	£33.91 £28.26
48	HV532 85 10-74 Out of stock	Washer	£4.99 £4.16
49	HV596 23 87-01 Out of stock	Washer	£2.52 £2.10
50	HV532 85 10-84 Out of stock	Screw	£6.26 £5.22
57	HV532 85 07-33 Out of stock	Plate	£5.83 £4.86
58	HV532 75 06-34 Out of stock	Screw	£1.51 £1.26
59	HV532 17 50-71 Out of stock	Clipping Deflector	£37.92 £31.60
60	HV532 17 57-35 Out of stock	Hinge	£8.09 £6.74
61	HV532 19 30-00 Out of stock	Hinge	£6.85 £5.71
62	HV532 17 56-50 Out of stock	Rod	£5.29 £4.41
63	HV586 66 89-01 Out of stock	Nut	£2.87 £2.39
64	HV532 17 50-66 Out of stock	Plug	£11.32 £9.43
96	HV532 19 79-91 Out of stock	Clip	£0.74 £0.62
98	HV596 13 64-01 Out of stock	Bolt	£3.26 £2.72
