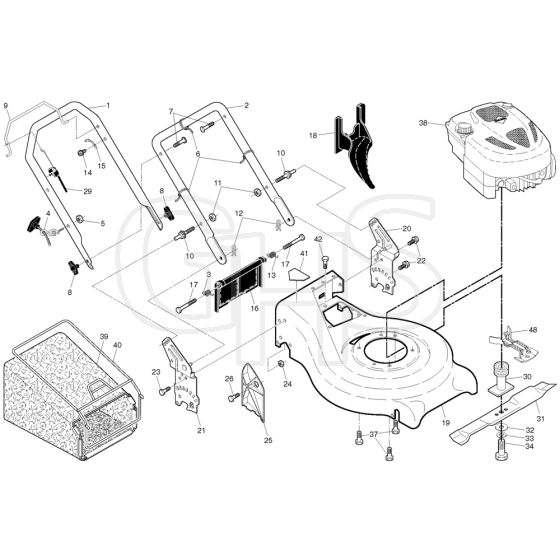

McCulloch M53-625 CMD - 96141011106 - 2010-01 - Frame Parts Diagram

Name: McCulloch M53-625 CMD - 96141011106 - 2010-01 - Frame Parts Diagram
SKU: m53_625_cmd_96141011106_2010_01_frame-group
Price: 1.3 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M53-625 CMD - 96141011106 - 2010-01 - Frame Parts Diagram

Description

McCulloch M53-625 CMD - 96141011106 - 2010-01 - Frame Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV532 16 68-62 Available to backorder	Handle	£36.02 £30.02
2	HV532 19 60-05 Available to backorder	Handle	£32.22 £26.85
3	HV532 40 54-16 Available to backorder	Spring	£6.34 £5.28
4	HV532 19 47-88 Available to backorder	Guide	£3.42 £2.85
5	HV532 05 06-75 Available to backorder	Nut	£2.34 £1.95
7	HV532 19 15-74 Available to backorder	Screw	£5.82 £4.85
8	HV532 18 55-77 Available to backorder	Knob	£7.76 £6.47
9	HV532 85 16-59 Available to backorder	Bail	£19.40 £16.17
10	HV532 18 88-21 Available to backorder	Bolt	£5.32 £4.43
11	HV532 75 11-53 Available to backorder	Nut	£2.72 £2.27
12	HV532 05 17-93 Available to backorder	Pin	£4.78 £3.98
13	HV532 40 54-15 Available to backorder	Spring	£6.34 £5.28
14	HV532 75 06-34 Available to backorder	Screw	£1.56 £1.30
15	HV532 85 07-33 Available to backorder	Plate	£6.08 £5.07
16	HV532 40 18-15 Available to backorder	Deflector	£22.82 £19.02
17	HV532 18 41-93 Available to backorder	Bolt	£7.76 £6.47
18	HV532 19 81-70 Available to backorder	Plug	£46.58 £38.82
20	HV532 19 39-17 Available to backorder	Bracket	£38.18 £31.82
21	HV532 19 40-31 Available to backorder	Bracket	£40.12 £33.43
22	HV532 42 88-67 Available to backorder	Bolt	£4.02 £3.35
23	HV532 16 31-83 Available to backorder	Bolt	£3.62 £3.02
24	HV596 04 05-01 Available to backorder	Lock Nut	£2.06 £1.72
25	HV532 16 13-33 Available to backorder	Plate	£10.26 £8.55
26	HV532 16 34-09 Available to backorder	Screw	£1.56 £1.30
29	HV532 19 12-21 Available to backorder	Cable	£29.76 £24.80
30	HV532 42 11-76 Available to backorder	Adapter	£38.04 £31.70
31	HV532 19 93-77 Available to backorder	Mower Blade	£34.40 £28.67
32	HV532 85 10-74 Available to backorder	Washer	£4.80 £4.00
33	HV596 23 87-01 Available to backorder	Washer	£2.65 £2.21
34	HV532 85 10-84 Available to backorder	Screw	£6.97 £5.81
39	HV532 41 06-68 Available to backorder	Grassbag	£87.12 £72.60
40	HV532 41 19-51 Available to backorder	Frame	£47.22 £39.35
42	HV817 06 04-10 Available to backorder	Screw	£2.34 £1.95
