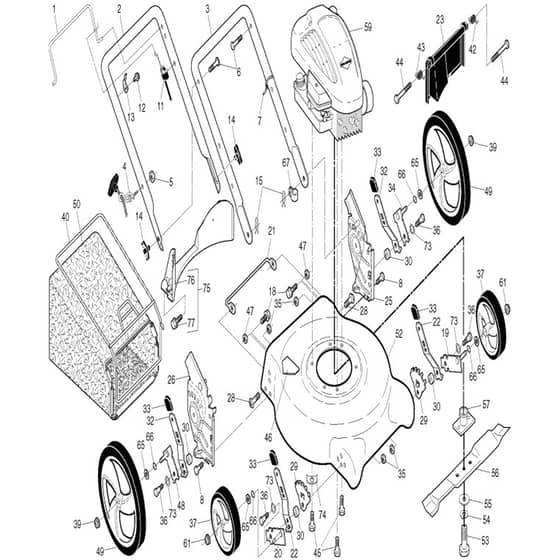

McCulloch M53-550 CMW - 96131001408 - 2009-11 - Product Complete Parts Diagram

Name: McCulloch M53-550 CMW - 96131001408 - 2009-11 - Product Complete Parts Diagram
SKU: m53_550_cmw_96131001408_2009_11_product_complete-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M53-550 CMW - 96131001408 - 2009-11 - Product Complete Parts Diagram

Description

McCulloch M53-550 CMW - 96131001408 - 2009-11 - Product Complete Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	HV532 17 42-91 Available to backorder	Handle	£51.12 £42.60
4	HV532 19 47-88 Available to backorder	Guide	£3.42 £2.85
5	HV532 05 06-75 Available to backorder	Nut	£2.34 £1.95
6	HV532 19 15-74 Available to backorder	Screw	£5.82 £4.85
8	HV874 78 05-12 Available to backorder	Screw	£3.04 £2.53
11	HV532 17 65-56 Available to backorder	Cable	£26.54 £22.12
12	HV532 75 06-34 Available to backorder	Screw	£1.56 £1.30
13	HV532 43 00-34 Available to backorder	Bracket	£6.13 £5.11
14	HV532 18 55-77 Available to backorder	Knob	£7.76 £6.47
15	HV532 05 17-93 Available to backorder	Pin	£4.78 £3.98
18	HV817 60 04-06 Available to backorder	Screw	£1.80 £1.50
19	HV532 40 11-74 Available to backorder	Axle	£9.82 £8.18
20	HV532 40 66-90 Available to backorder	Axle	£13.24 £11.03
28	HV817 06 04-10 Available to backorder	Screw	£2.34 £1.95
30	HV532 40 16-29 Available to backorder	Spacer	£2.72 £2.27
32	HV532 40 16-24 Available to backorder	Spring	£9.06 £7.55
33	HV532 08 78-77 Available to backorder	Knob	£5.04 £4.20
35	HV532 42 65-89 Available to backorder	Nut	£4.78 £3.98
36	HV532 40 16-38 Available to backorder	Bolt	£7.76 £6.47
37	HV583 72 03-01 Available to backorder	Wheel	£25.68 £21.40
39	HV532 40 91-49 Available to backorder	Nut	£4.68 £3.90
40	HV532 41 19-49 Available to backorder	Frame	£47.86 £39.88
44	HV532 18 41-93 Available to backorder	Bolt	£7.76 £6.47
49	HV532 43 27-49 Available to backorder	Wheel Assy	£33.24 £27.70
50	HV581 00 21-01 Available to backorder	Grassbag	£42.90 £35.75
53	HV532 85 10-84 Available to backorder	Screw	£6.97 £5.81
54	HV596 23 87-01 Available to backorder	Washer	£2.65 £2.21
55	HV532 85 10-74 Available to backorder	Washer	£4.80 £4.00
56	HV532 19 93-77 Available to backorder	Mower Blade	£34.40 £28.67
57	HV581 54 79-01 Available to backorder	Blade Adaptor Usa 7/8"	£20.48 £17.07
61	HV532 40 91-48 Available to backorder	Nut	£3.48 £2.90
65	HV532 08 83-48 Available to backorder	Washer	£2.34 £1.95
66	HV532 19 74-80 Available to backorder	O-Ring	£3.84 £3.20
67	HV532 19 79-91 Available to backorder	Clip	£0.77 £0.64
73	HV532 40 16-30 Available to backorder	Washer	£2.84 £2.37
77	HV817 41 13-12 Available to backorder	Screw	£5.84 £4.87
