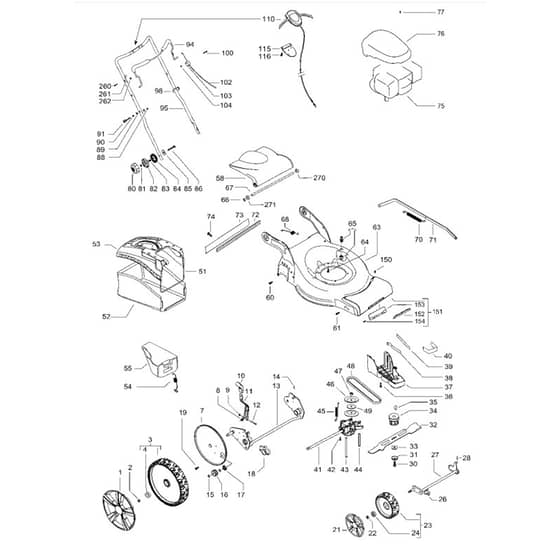

McCulloch M53-160 AWRPX - 96717230104 - 2014-04 - Product Complete Parts Diagram

Name: McCulloch M53-160 AWRPX - 96717230104 - 2014-04 - Product Complete Parts Diagram
SKU: m53_160_awrpx_96717230104_2014_04_product_complete-group
Price: 0.55 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M53-160 AWRPX - 96717230104 - 2014-04 - Product Complete Parts Diagram

Description

McCulloch M53-160 AWRPX - 96717230104 - 2014-04 - Product Complete Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV574 39 66-01 Available to backorder	Hub Cap	£17.46 £14.55
2	HV504 85 78-01 Available to backorder	Nut	£3.62 £3.02
3	HV574 45 12-02 Available to backorder	Wheel Assy	£31.74 £26.45
7	HV504 53 99-01 Available to backorder	Hub Cap	£13.58 £11.32
8	HV583 95 13-02 Available to backorder	Spring	£4.40 £3.67
9	HV531 20 84-92 Available to backorder	Nut	£1.56 £1.30
10	HV580 46 24-01 Available to backorder	Knob	£5.83 £4.86
11	HV581 17 86-01 Available to backorder	Lever Assy	£12.04 £10.03
12	HV538 23 58-07 Available to backorder	Screw	£2.84 £2.37
13	HV581 73 35-01 Available to backorder	Rear Axle	£113.00 £94.17
14	HV531 20 66-53 Available to backorder	Pin	£3.88 £3.23
16	HV544 34 23-01 Available to backorder	Pinion	£10.80 £9.00
17	HV531 20 87-78 Available to backorder	Bearing	£6.36 £5.30
18	HV531 20 59-44 Available to backorder	Support	£8.40 £7.00
19	HV531 20 78-56 Available to backorder	Screw	£1.56 £1.30
21	HV574 39 64-01 Available to backorder	Hub Cap	£10.36 £8.63
23	HV574 45 09-02 Available to backorder	Wheel Assy	£24.94 £20.78
26	HV577 38 42-01 Available to backorder	Support	£8.40 £7.00
27	HV573 97 60-01 Available to backorder	Front Axle	£80.60 £67.17
30	HV531 20 80-08 Available to backorder	Screw	£6.97 £5.81
32	HV580 25 84-02 Available to backorder	Mower Blade	£35.12 £29.27
33	HV525 42 31-01 Available to backorder	Washer	£3.48 £2.90
34	HV504 59 12-01 Available to backorder	Blade Support	£19.14 £15.95
35	HV504 59 14-01 Available to backorder	Key	£5.56 £4.63
37	HV505 40 82-02 Available to backorder	Belt Guard	£24.72 £20.60
39	HV544 46 25-01 Available to backorder	Wear Protection	£4.96 £4.13
40	HV504 05 66-01 Available to backorder	Protection	£7.86 £6.55
41	HV577 11 74-01 Available to backorder	Gearbox	£128.76 £107.30
42	HV510 03 75-01 Available to backorder	Screw	£1.56 £1.30
43	HV577 92 85-01 Available to backorder	Belt Guide	£6.56 £5.47
44	HV544 93 43-01 Available to backorder	Belt Guide	£8.40 £7.00
45	HV544 93 47-01 Available to backorder	Spring	£4.54 £3.78
46	HV544 44 44-01 Available to backorder	Pulley	£20.16 £16.80
48	HV531 21 31-31 Available to backorder	Belt	£23.71 £19.76
49	HV538 23 52-87 Available to backorder	Washer	£3.12 £2.60
51	HV531 21 35-88 Available to backorder	Bag	£31.04 £25.87
52	HV577 58 66-06 Available to backorder	Grassbag	£70.52 £58.77
53	HV577 87 67-99 Available to backorder	Bag	£30.14 £25.12
54	HV531 21 11-91 Available to backorder	Spring	£5.82 £4.85
55	HV531 21 06-16 Available to backorder	Plug	£55.18 £45.98
60	HV531 20 66-77 Available to backorder	Screw	£1.82 £1.52
61	HV525 43 31-01 Available to backorder	Screw	£1.16 £0.97
63	HV581 29 22-02 Available to backorder	Chassis	£189.96 £158.30
64	HV532 15 04-06 Available to backorder	Screw	£5.06 £4.22
65	HV531 20 58-48 Available to backorder	Connector	£9.72 £8.10
66	HV584 81 69-03 Available to backorder	Lockwasher	£0.77 £0.64
68	HV531 21 18-40 Available to backorder	Spring	£4.26 £3.55
70	HV583 96 87-01 Available to backorder	Spring	£4.54 £3.78
71	HV581 59 07-01 Available to backorder	Rod	£16.82 £14.02
76	HV580 29 01-01 Available to backorder	Shroud	£32.36 £26.97
77	HV580 76 87-01 Available to backorder	Screw Itxpant	£1.82 £1.52
80	HV580 42 43-01 Available to backorder	Knob	£11.64 £9.70
81	HV531 20 49-22 Available to backorder	Washer	£2.58 £2.15
84	HV531 21 14-73 In stock	Segment	£15.54 £12.95
85	HV531 21 15-81 In stock	Plate	£4.92 £4.10
86	HV581 25 95-01 In stock	Screw Rsqm	£1.42 £1.18
88	HV531 20 84-91 Available to backorder	Nut	£2.06 £1.72
89	HV514 02 66-00 Available to backorder	Washer	£2.28 £1.90
90	HV531 20 71-65 Available to backorder	Nut	£2.06 £1.72
91	HV531 20 51-69 Available to backorder	Pin Retaining Screw	£2.72 £2.27
94	HV587 68 93-03 Available to backorder	Bail	£13.58 £11.32
95	HV580 33 36-02 Available to backorder	Handle	£67.86 £56.55
98	HV531 20 55-81 Available to backorder	Clip	£0.66 £0.55
102	HV582 19 21-01 Available to backorder	Cable	£26.20 £21.83
103	HV531 20 80-43 In stock	Bracket	£1.26 £1.05
116	HV532 18 16-98 Available to backorder	Screw	£1.82 £1.52
152	HV574 37 52-01 Available to backorder	Cover	£6.46 £5.38
153	HV574 72 17-01 Available to backorder	Attachment Plate	£3.02 £2.52
154	HV575 95 57-01 Available to backorder	Screw Itxpant	£1.56 £1.30
261	HV532 43 00-34 Available to backorder	Bracket	£6.13 £5.11
