McCulloch M53-150WR Classic - 96708760101 - 2018-02 - Product Complete Parts Diagram

Description

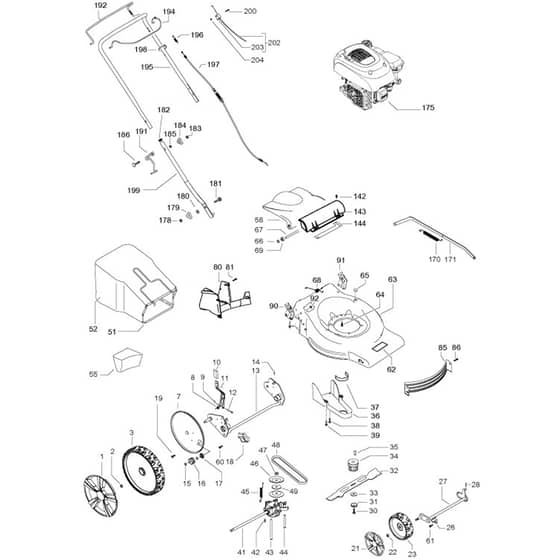

McCulloch M53-150WR Classic - 96708760101 - 2018-02 - Product Complete Parts Diagram

	Part No.	Details
1	HV574 39 66-01 Available to backorder	Hub Cap D.280	£17.32 £14.43
2	HV504 85 78-01 Available to backorder	Nut M8+ Self Locking+ Flanged	£3.37 £2.81
3	HV574 41 53-04 Available to backorder	Wheel D.280	£38.16 £31.80
7	HV504 53 99-01 Available to backorder	Hub Cap D.280	£13.46 £11.22
8	HV583 95 13-02 Available to backorder	Spring	£4.36 £3.63
9	HV531 20 74-08 Available to backorder	Pin Retaining Screw	£3.29 £2.74
10	HV574 61 05-01 Available to backorder	Knob	£7.37 £6.14
11	HV582 75 93-01 Available to backorder	Lever Assy	£12.82 £10.68
12	HV587 19 82-01 Available to backorder	Pin	£5.63 £4.69
13	HV581 73 35-01 Available to backorder	Rear Axle	£108.24 £90.20
14	HV531 20 66-53 In stock	Pin	£3.91 £3.26
16	HV582 70 17-01 Available to backorder	Pinion	£24.08 £20.07
17	HV531 20 87-78 Available to backorder	Bearing	£6.58 £5.48
18	HV531 20 59-44 Available to backorder	Support	£8.34 £6.95
19	HV531 20 78-56 Available to backorder	Screw 5x10	£1.56 £1.30
21	HV574 39 64-01 Available to backorder	Hub Cap D.190	£10.26 £8.55
23	HV574 41 50-04 Available to backorder	Wheel D.190	£22.57 £18.81
27	HV573 97 60-01 Available to backorder	Front Axle	£77.40 £64.50
30	HV531 20 80-08 Available to backorder	Screw 3/8"	£7.06 £5.88
32	HV581 18 86-10 Available to backorder	Mower Blade	£35.42 £29.52
33	HV525 42 31-01 Available to backorder	Washer	£3.56 £2.97
34	HV581 84 30-01 In stock	Blade Support	£17.14 £14.28
35	HV505 29 09-01 Available to backorder	Key	£2.65 £2.21
37	HV501 18 90-02 Available to backorder	Belt Guide	£23.08 £19.23
38	HV817 41 13-12 Available to backorder	Screw	£5.74 £4.78
41	HV577 11 74-01 Available to backorder	Gearbox	£123.60 £103.00
42	HV510 03 75-01 Available to backorder	Screw 4x16+ Self Threading	£1.56 £1.30
43	HV577 92 85-01 Available to backorder	Belt Guide	£6.79 £5.66
44	HV544 93 43-01 Available to backorder	Belt Guide	£8.34 £6.95
45	HV544 93 47-01 Available to backorder	Spring	£4.31 £3.59
46	HV544 44 44-01 Available to backorder	Pulley	£19.97 £16.64
48	HV531 21 31-31 Available to backorder	Belt Z31 10x775	£24.41 £20.34
49	HV538 23 52-87 Available to backorder	Washer	£3.07 £2.56
51	HV531 21 32-62 Available to backorder	Bag Frame	£55.88 £46.57
52	HV589 46 26-01 Available to backorder	Grassbag	£68.76 £57.30
55	HV579 67 94-01 Available to backorder	Plug	£41.65 £34.71
60	HV531 20 66-77 Available to backorder	Screw 4.8x19+ Self Threading	£1.79 £1.49
61	HV525 43 31-01 Available to backorder	Screw 4x16+ Self Threading	£1.15 £0.96
62	HV581 02 17-01 Available to backorder	Decal Mcculloch	£3.59 £2.99
63	HV589 46 23-02 Available to backorder	Chassis	£197.04 £164.20
66	HV584 81 69-03 Available to backorder	Lockwasher	£0.77 £0.64
67	HV531 21 14-41 Available to backorder	Tie Rod	£8.34 £6.95
68	HV531 20 59-99 Available to backorder	Spring	£4.22 £3.52
81	HV532 19 41-89 Available to backorder	Screw	£1.79 £1.49
85	HV502 09 33-01 Available to backorder	Baffle	£37.15 £30.96
86	HV817 00 05-10 Available to backorder	Bolt	£3.59 £2.99
90	HV582 75 11-02 Available to backorder	Handle Bracket Right	£28.20 £23.50
91	HV582 75 10-02 Available to backorder	Handle Bracket Left	£28.20 £23.50
92	HV582 75 89-01 Available to backorder	Hexagon Nut Flange M8	£2.69 £2.24
143	HV579 30 09-01 Available to backorder	Seal	£25.84 £21.53
170	HV583 96 87-01 Available to backorder	Spring	£4.50 £3.75
171	HV581 59 07-01 Available to backorder	Rod	£16.66 £13.88
175	HV579 82 90-01 Available to backorder	Engine Assy	£336.04 £280.03
178	HV531 20 79-82 Available to backorder	Nut M8	£2.28 £1.90
179	HV531 20 49-23 Available to backorder	Wing Nut	£4.12 £3.43
180	HV531 20 49-22 Available to backorder	Washer	£2.56 £2.13
181	HV531 20 49-21 Available to backorder	Screw M8x25	£5.02 £4.18
182	HV531 20 89-50 Available to backorder	Plug	£0.85 £0.71
186	HV531 20 70-89 Available to backorder	Screw M8x50	£7.06 £5.88
191	HV504 70 86-01 Available to backorder	Hook	£14.74 £12.28
192	HV504 70 84-01 Available to backorder	Handle	£30.76 £25.63
194	HV504 70 83-04 Available to backorder	Handle	£30.76 £25.63
195	HV504 70 80-01 Available to backorder	Handle Upper Half	£44.22 £36.85
197	HV544 90 80-02 Available to backorder	Cable	£28.72 £23.93
198	HV531 20 55-81 Available to backorder	Clip	£0.64 £0.53
199	HV531 20 60-71 Available to backorder	Handle Lower Half	£30.14 £25.12
202	HV582 19 21-02 Available to backorder	Cable Assy	£26.51 £22.09
203	HV531 20 80-43 In stock	Bracket (202)	£1.09 £0.91
