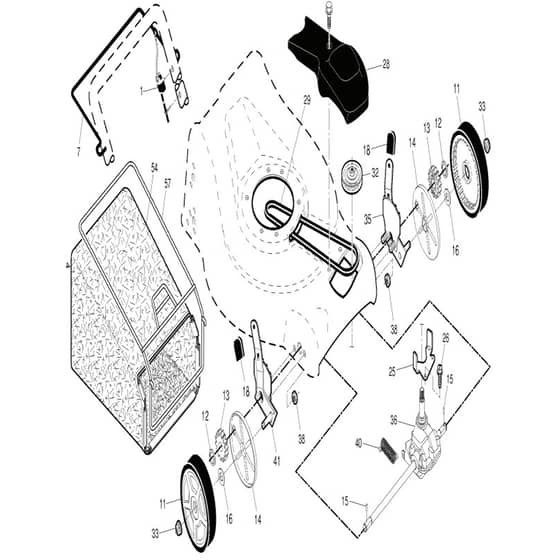

McCulloch M53-140WF - 96141028001 - 2013-05 - Drive Parts Diagram

Name: McCulloch M53-140WF - 96141028001 - 2013-05 - Drive Parts Diagram
SKU: m53_140wf_96141028001_2013_05_drive-group
Price: 0.64 GBP
Availability: InStock

Part No. m53_140wf_96141028001_2013_05_drive-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M53-140WF - 96141028001 - 2013-05 - Drive Parts Diagram

Description

McCulloch M53-140WF - 96141028001 - 2013-05 - Drive Parts Diagram

	Part No.	Details
7	HV580 65 93-02 Available to backorder	Bail	£21.56 £17.97
11	HV581 00 92-05 Available to backorder	Wheel Assy	£25.92 £21.60
12	HV812 00 00-58 Available to backorder	E-Clip	£0.77 £0.64
13	HV532 40 38-49 Available to backorder	Pinion	£9.98 £8.32
14	HV581 84 04-01 Available to backorder	Dust Cover	£9.62 £8.02
15	HV532 40 48-45 Available to backorder	Pawl Drive	£6.52 £5.43
16	HV532 06 77-25 Available to backorder	Washer	£8.98 £7.48
18	HV532 08 78-77 Available to backorder	Knob	£5.02 £4.18
25	HV532 43 17-11 Available to backorder	Bracket	£10.72 £8.93
26	HV532 16 34-09 Available to backorder	Screw	£1.56 £1.30
29	HV532 19 41-49 In stock	Belt	£20.23 £16.86
32	HV532 44 32-62 Available to backorder	Pulley	£18.82 £15.68
33	HV532 40 91-48 Available to backorder	Nut	£3.60 £3.00
35	HV532 43 84-85 Available to backorder	Adjuster	£32.70 £27.25
38	HV586 66 89-01 Available to backorder	Nut	£2.94 £2.45
40	HV532 40 65-58 Available to backorder	Spring	£3.74 £3.12
54	HV580 95 34-04 In stock	Grass Bag Assy	£57.83 £48.19
57	HV532 41 19-50 Available to backorder	Frame	£78.24 £65.20
