McCulloch M51-150 AWRP - 96708750100 - 2017-02 - Product Complete Parts Diagram

Name: McCulloch M51-150 AWRP - 96708750100 - 2017-02 - Product Complete Parts Diagram
SKU: m51_150_awrp_96708750100_2017_02_product_complete-group
Price: 0.53 GBP
Availability: InStock

Part No. m51_150_awrp_96708750100_2017_02_product_complete-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

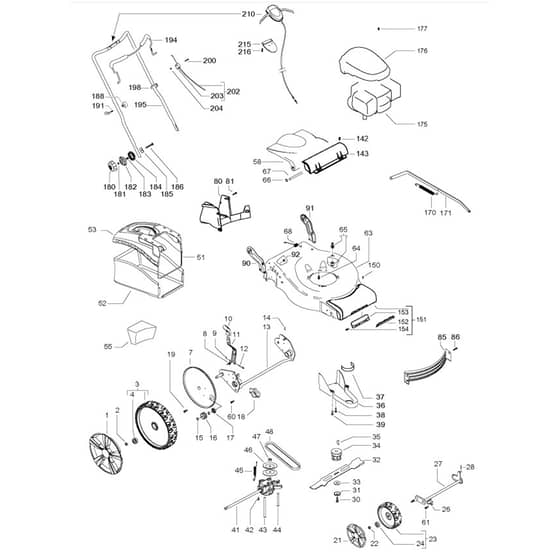

McCulloch M51-150 AWRP - 96708750100 - 2017-02 - Product Complete Parts Diagram

Description

McCulloch M51-150 AWRP - 96708750100 - - 2017-02 - Product Complete Parts Diagram

	Part No.	Details
1	HV574 39 66-01 Available to backorder	Hub Cap D.280	£17.32 £14.43
2	HV504 85 78-01 Available to backorder	Nut M8+ Self Locking+ Flanged	£3.37 £2.81
3	HV574 45 12-02 Available to backorder	Wheel Assy D.280	£31.44 £26.20
7	HV504 53 99-01 Available to backorder	Hub Cap D.280	£13.46 £11.22
8	HV583 95 13-02 Available to backorder	Spring	£4.36 £3.63
9	HV531 20 74-08 Available to backorder	Pin Retaining Screw	£3.29 £2.74
10	HV580 46 24-01 Available to backorder	Knob	£5.59 £4.66
11	HV582 75 93-01 Available to backorder	Lever Assy	£12.82 £10.68
12	HV587 19 82-01 Available to backorder	Pin	£5.63 £4.69
13	HV510 09 28-01 Available to backorder	Rear Axle	£90.24 £75.20
14	HV531 20 66-53 In stock	Pin	£3.91 £3.26
16	HV544 34 23-01 Available to backorder	Pinion	£10.57 £8.81
17	HV531 20 87-78 Available to backorder	Bearing	£6.58 £5.48
18	HV531 20 59-44 Available to backorder	Support	£8.34 £6.95
19	HV531 20 78-56 Available to backorder	Screw 5x10	£1.56 £1.30
21	HV574 39 64-01 Available to backorder	Hub Cap D.190	£10.26 £8.55
23	HV574 45 09-02 Available to backorder	Wheel Assy D.190	£24.70 £20.58
27	HV504 85 65-01 Available to backorder	Front Axle Assy	£62.76 £52.30
30	HV531 20 80-08 Available to backorder	Screw 3/8"	£7.06 £5.88
32	HV504 11 33-10 In stock	Blade	£28.86 £24.05
33	HV525 42 31-01 Available to backorder	Washer	£3.56 £2.97
34	HV581 84 30-01 In stock	Blade Support	£17.14 £14.28
35	HV505 29 09-01 Available to backorder	Key	£2.65 £2.21
37	HV501 18 90-02 Available to backorder	Belt Guide	£23.08 £19.23
38	HV817 41 13-12 Available to backorder	Screw	£5.74 £4.78
41	HV504 54 14-03 Available to backorder	Gearbox	£116.40 £97.00
42	HV510 03 75-01 Available to backorder	Screw 4x16+ Self Threading	£1.56 £1.30
43	HV504 10 31-01 Available to backorder	Belt Guide	£10.26 £8.55
44	HV544 93 43-01 Available to backorder	Belt Guide	£8.34 £6.95
45	HV544 93 47-01 Available to backorder	Spring	£4.31 £3.59
46	HV544 44 44-01 Available to backorder	Pulley	£19.97 £16.64
48	HV504 10 33-01 Available to backorder	Belt Z30 10x765	£25.15 £20.96
51	HV531 21 35-88 Available to backorder	Bag	£30.76 £25.63
52	HV577 58 66-05 Available to backorder	Grassbag	£60.12 £50.10
53	HV577 87 67-01 Available to backorder	Bag	£50.64 £42.20
55	HV579 67 93-01 Available to backorder	Plug	£38.46 £32.05
60	HV531 20 66-77 Available to backorder	Screw 4.8x19+ Self Threading	£1.79 £1.49
61	HV525 43 31-01 Available to backorder	Screw 4x16+ Self Threading	£1.15 £0.96
65	HV531 20 58-48 Available to backorder	Connector 1/2"	£9.62 £8.02
66	HV584 81 69-03 Available to backorder	Lockwasher	£0.77 £0.64
67	HV531 21 14-41 Available to backorder	Tie Rod	£8.34 £6.95
68	HV531 21 18-40 Available to backorder	Spring	£4.22 £3.52
80	HV502 09 39-01 Available to backorder	Insert	£38.03 £31.69
81	HV532 14 24-32 Available to backorder	Screw	£2.30 £1.92
86	HV817 00 05-10 Available to backorder	Bolt	£3.59 £2.99
90	HV582 75 09-02 Available to backorder	Handle Bracket Right	£28.20 £23.50
91	HV582 75 08-02 Available to backorder	Handle Bracket Left	£28.20 £23.50
92	HV582 75 89-01 Available to backorder	Hexagon Nut Flange M8	£2.69 £2.24
142	HV576 13 60-06 Available to backorder	Screw M5x8	£1.56 £1.30
143	HV579 30 09-01 Available to backorder	Seal	£25.84 £21.53
151	HV575 56 22-04 Available to backorder	Front Cover Assy	£39.10 £32.58
152	HV574 37 52-01 Available to backorder	Cover (151)	£6.40 £5.33
153	HV574 72 17-01 Available to backorder	Attachment Plate (151)	£2.99 £2.49
154	HV575 95 57-01 Available to backorder	Screw Itxpant (151)	£1.56 £1.30
171	HV580 96 32-01 Available to backorder	Rod	£14.10 £11.75
176	HV580 44 56-01 Available to backorder	Shroud	£26.92 £22.43
177	HV532 18 16-98 Available to backorder	Screw	£1.79 £1.49
180	HV580 42 43-01 Available to backorder	Knob	£11.54 £9.62
181	HV531 20 49-22 Available to backorder	Washer	£2.56 £2.13
184	HV531 21 14-73 Available to backorder	Segment Inner	£14.46 £12.05
185	HV531 21 15-81 In stock	Plate	£4.57 £3.81
186	HV581 25 95-01 Available to backorder	Screw Rsqm M8x55	£1.32 £1.10
188	HV581 91 26-01 In stock	Knob	Was £5.30 £4.42 Special Price £3.82 £3.18
191	HV581 90 21-01 Available to backorder	Guide	£4.55 £3.79
194	HV587 68 93-03 Available to backorder	Bail Arm Assy	£13.46 £11.22
195	HV580 33 36-02 Available to backorder	Handle	£66.24 £55.20
198	HV531 20 55-81 Available to backorder	Clip	£0.64 £0.53
202	HV582 19 21-01 In stock	Cable Assy	£28.80 £24.00
203	HV531 20 80-43 In stock	Bracket (202)	£1.09 £0.91
215	HV587 24 93-02 Available to backorder	Backplate	£10.90 £9.08
