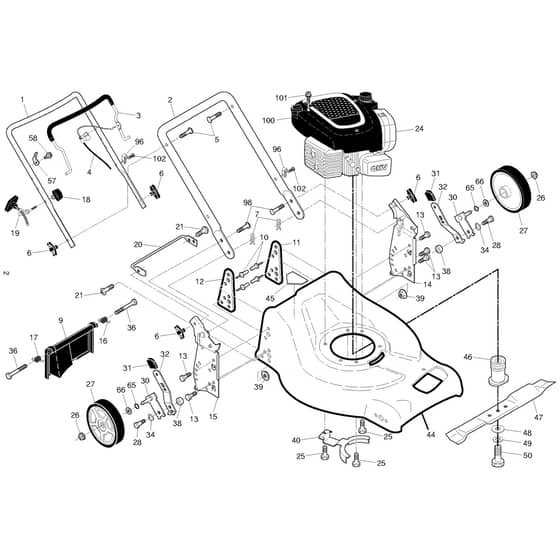

McCulloch M51-140F - 96141027103 - 2014-10 - Frame Parts Diagram

Name: McCulloch M51-140F - 96141027103 - 2014-10 - Frame Parts Diagram
SKU: m51_140f_96141027103_2014_10_frame-group
Price: 0.64 GBP
Availability: InStock

Part No. m51_140f_96141027103_2014_10_frame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M51-140F - 96141027103 - 2014-10 - Frame Parts Diagram

Description

McCulloch M51-140F - 96141027103 - 2014-10 - Frame Parts Diagram

	Part No.	Details
1	HV580 63 87-02 Available to backorder	Handle	£48.07 £40.06
0	HV581 00 67-01 Available to backorder	Bag Not Shown (6&98)	£8.98 £7.48
2	HV532 43 45-14 Available to backorder	Handle	£50.64 £42.20
3	HV587 68 93-03 Available to backorder	Bail	£13.46 £11.22
4	HV532 42 40-33 Available to backorder	Cable	£45.68 £38.07
5	HV532 19 15-74 Available to backorder	Screw	£5.78 £4.82
6	HV532 18 55-77 Available to backorder	Knob	£7.70 £6.42
7	HV532 05 17-93 Available to backorder	Pin	£4.74 £3.95
13	HV817 06 04-10 Available to backorder	Screw	£2.30 £1.92
16	HV532 40 54-17 Available to backorder	Spring Lh	£6.14 £5.12
17	HV532 40 54-18 Available to backorder	Spring Rh	£6.14 £5.12
18	HV581 91 26-01 In stock	Knob	Was £5.30 £4.42 Special Price £3.82 £3.18
19	HV581 90 21-01 Available to backorder	Guide	£4.55 £3.79
20	HV532 43 61-19 Available to backorder	Guard	£24.66 £20.55
21	HV583 60 83-01 Available to backorder	Screw	£1.79 £1.49
26	HV532 40 91-48 Available to backorder	Nut	£3.60 £3.00
27	HV532 43 52-76 Available to backorder	Wheel Assy	£20.14 £16.78
28	HV532 40 16-38 Available to backorder	Bolt	£7.70 £6.42
31	HV532 08 78-77 Available to backorder	Knob	£5.02 £4.18
34	HV532 40 16-30 Available to backorder	Washer	£2.83 £2.36
36	HV532 18 41-93 Available to backorder	Bolt	£7.70 £6.42
38	HV532 40 16-29 Available to backorder	Spacer	£2.69 £2.24
39	HV532 15 53-77 Available to backorder	Nut	£2.44 £2.03
40	HV532 42 57-11 Available to backorder	Bracket	£8.45 £7.04
46	HV581 36 71-01 Available to backorder	Adapter	£22.34 £18.62
47	HV532 19 93-77 In stock	Mower Blade	£29.36 £24.47
48	HV532 85 10-74 Available to backorder	Washer	£4.97 £4.14
49	HV596 23 87-01 Available to backorder	Washer	£2.54 £2.12
50	HV532 85 10-84 Available to backorder	Screw	£7.03 £5.86
57	HV532 43 00-34 Available to backorder	Bracket	£6.04 £5.03
58	HV532 17 88-48 Available to backorder	Screw	£1.18 £0.98
65	HV532 19 74-80 Available to backorder	O-Ring	£3.82 £3.18
66	HV532 08 83-48 Available to backorder	Washer	£2.30 £1.92
96	HV532 19 79-91 Available to backorder	Clip	£0.77 £0.64
98	HV586 21 25-01 Available to backorder	Bolt	£3.23 £2.69
100	HV580 44 56-01 Available to backorder	Shroud	£26.92 £22.43
101	HV532 18 16-98 Available to backorder	Screw	£1.79 £1.49
102	HV532 42 81-24 Available to backorder	Fastener	£7.79 £6.49
