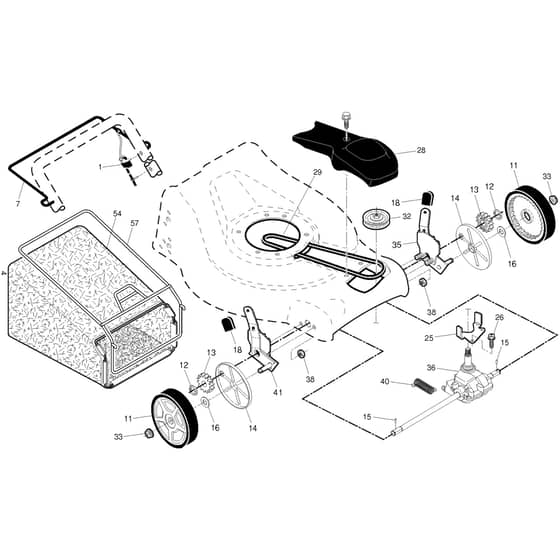

McCulloch M51-140F - 96141027103 - 2014-10 - Drive Parts Diagram

Name: McCulloch M51-140F - 96141027103 - 2014-10 - Drive Parts Diagram
SKU: m51_140f_96141027103_2014_10_drive-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M51-140F - 96141027103 - 2014-10 - Drive Parts Diagram

Description

McCulloch M51-140F - 96141027103 - 2014-10 - Drive Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV585 04 07-02 Available to backorder	Cable	£27.18 £22.65
7	HV585 12 31-02 Available to backorder	Bail	£26.54 £22.12
11	HV581 00 92-05 Available to backorder	Wheel Assy	£25.44 £21.20
12	HV812 00 00-58 Available to backorder	E-Clip	£0.77 £0.64
13	HV532 40 38-49 Available to backorder	Pinion	£10.06 £8.38
14	HV581 84 04-01 Available to backorder	Dust Cover	£9.72 £8.10
15	HV532 40 48-45 Available to backorder	Pawl Drive	£6.30 £5.25
16	HV532 06 77-25 Available to backorder	Washer	£9.06 £7.55
18	HV532 08 78-77 Available to backorder	Knob	£5.04 £4.20
25	HV532 43 17-11 Available to backorder	Bracket	£10.36 £8.63
26	HV532 16 34-09 Available to backorder	Screw	£1.56 £1.30
28	HV532 43 26-65 Available to backorder	Drive Cover Includes Mounting Screw & Pushnut	£29.36 £24.47
29	HV532 19 41-49 In stock	Belt	£23.60 £19.67
32	HV532 44 32-62 Available to backorder	Pulley	£19.00 £15.83
33	HV532 40 91-48 Available to backorder	Nut	£3.48 £2.90
35	HV532 43 84-85 Available to backorder	Adjuster Lh (17+18)	£33.00 £27.50
36	HV532 40 48-33 Available to backorder	Gearcase Assembly Complete	£116.03 £96.69
38	HV586 66 89-01 Available to backorder	Nut	£2.98 £2.48
40	HV532 40 65-58 Available to backorder	Spring	£3.62 £3.02
54	HV580 95 34-04 In stock	Grass Bag Assy	£55.90 £46.58
57	HV532 41 19-50 Available to backorder	Frame	£78.22 £65.18
