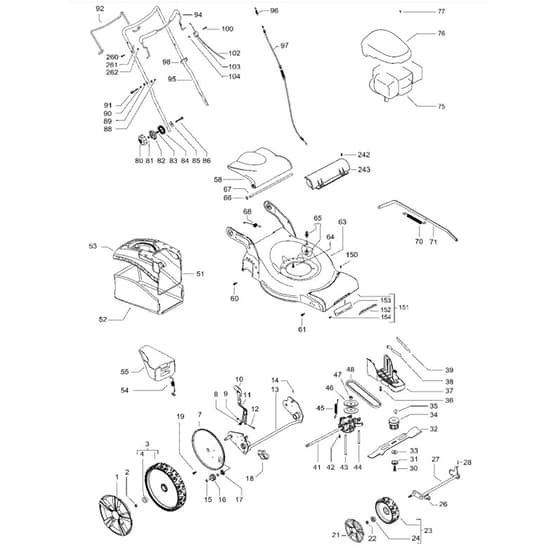

McCulloch M51-140 WRX - 96717340103 - 2014-03 - Product Complete Parts Diagram

Name: McCulloch M51-140 WRX - 96717340103 - 2014-03 - Product Complete Parts Diagram
SKU: m51_140_wrx_96717340103_2014_03_product_complete-group
Price: 0.53 GBP
Availability: InStock

Part No. m51_140_wrx_96717340103_2014_03_product_complete-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M51-140 WRX - 96717340103 - 2014-03 - Product Complete Parts Diagram

Description

McCulloch M51-140 WRX - 96717340103 - 2014-03 - Product Complete Parts Diagram

	Part No.	Details
1	HV574 39 66-01 Available to backorder	Hub Cap	£17.32 £14.43
2	HV504 85 78-01 Available to backorder	Nut	£3.37 £2.81
3	HV574 45 12-02 Available to backorder	Wheel Assy	£31.44 £26.20
7	HV504 53 99-01 Available to backorder	Hub Cap	£13.46 £11.22
8	HV583 95 13-02 Available to backorder	Spring	£4.36 £3.63
9	HV531 20 84-92 Available to backorder	Nut	£1.56 £1.30
10	HV580 46 24-01 Available to backorder	Knob	£5.59 £4.66
11	HV581 17 86-01 Available to backorder	Lever Assy	£11.46 £9.55
12	HV538 23 58-07 Available to backorder	Screw	£2.83 £2.36
13	HV510 09 28-01 Available to backorder	Rear Axle	£90.24 £75.20
14	HV531 20 66-53 In stock	Pin	£3.91 £3.26
16	HV544 34 23-01 Available to backorder	Pinion	£10.57 £8.81
17	HV531 20 87-78 Available to backorder	Bearing	£6.58 £5.48
18	HV531 20 59-44 Available to backorder	Support	£8.34 £6.95
19	HV531 20 78-56 Available to backorder	Screw	£1.56 £1.30
21	HV574 39 64-01 Available to backorder	Hub Cap	£10.26 £8.55
23	HV574 45 09-02 Available to backorder	Wheel Assy	£24.70 £20.58
27	HV504 85 65-01 Available to backorder	Front Axle Assy	£62.76 £52.30
30	HV531 20 80-08 Available to backorder	Screw	£7.06 £5.88
32	HV580 25 85-02 Available to backorder	Mower Blade	£33.41 £27.84
33	HV525 42 31-01 Available to backorder	Washer	£3.56 £2.97
34	HV581 84 30-01 In stock	Blade Support	£17.14 £14.28
35	HV505 29 09-01 Available to backorder	Key	£2.65 £2.21
37	HV544 46 23-02 Available to backorder	Belt Guard	£29.36 £24.47
39	HV544 46 25-01 Available to backorder	Wear Protection	£4.86 £4.05
41	HV504 54 14-03 Available to backorder	Gearbox	£116.40 £97.00
42	HV510 03 75-01 Available to backorder	Screw	£1.56 £1.30
43	HV504 10 31-01 Available to backorder	Belt Guide	£10.26 £8.55
44	HV544 93 43-01 Available to backorder	Belt Guide	£8.34 £6.95
45	HV544 93 47-01 Available to backorder	Spring	£4.31 £3.59
46	HV544 44 44-01 Available to backorder	Pulley	£19.97 £16.64
48	HV504 10 33-01 Available to backorder	Belt	£25.15 £20.96
51	HV531 21 35-88 Available to backorder	Bag	£30.76 £25.63
52	HV577 58 66-05 Available to backorder	Grassbag	£60.12 £50.10
53	HV577 87 67-01 Available to backorder	Bag	£50.64 £42.20
54	HV531 21 11-91 Available to backorder	Spring	£5.78 £4.82
60	HV531 20 66-77 Available to backorder	Screw	£1.79 £1.49
61	HV525 43 31-01 Available to backorder	Screw	£1.15 £0.96
63	HV581 29 21-02 Available to backorder	Chassis	£186.58 £155.48
64	HV532 15 04-06 Available to backorder	Screw	£4.97 £4.14
65	HV531 20 58-48 Available to backorder	Connector	£9.62 £8.02
66	HV584 81 69-03 Available to backorder	Lockwasher	£0.77 £0.64
67	HV531 21 14-41 Available to backorder	Tie Rod	£8.34 £6.95
68	HV531 21 18-40 Available to backorder	Spring	£4.22 £3.52
71	HV580 96 32-01 Available to backorder	Rod	£14.10 £11.75
76	HV580 44 56-01 Available to backorder	Shroud	£26.92 £22.43
77	HV532 18 16-98 Available to backorder	Screw	£1.79 £1.49
80	HV580 42 43-01 Available to backorder	Knob	£11.54 £9.62
81	HV531 20 49-22 Available to backorder	Washer	£2.56 £2.13
84	HV531 21 14-73 Available to backorder	Segment	£14.46 £12.05
85	HV531 21 15-81 In stock	Plate	£4.57 £3.81
86	HV581 25 95-01 Available to backorder	Screw Rsqm	£1.32 £1.10
88	HV531 20 84-91 Available to backorder	Nut	£2.05 £1.71
89	HV514 02 66-00 In stock	Washer	£2.50 £2.08
90	HV531 20 71-65 Available to backorder	Nut	£2.05 £1.71
91	HV531 20 51-69 Available to backorder	Pin Retaining Screw	£2.69 £2.24
92	HV580 65 43-01 Available to backorder	Bail	£23.72 £19.77
94	HV587 68 93-03 Available to backorder	Bail	£13.46 £11.22
98	HV531 20 55-81 Available to backorder	Clip	£0.64 £0.53
102	HV582 19 21-01 In stock	Cable	£28.80 £24.00
103	HV531 20 80-43 In stock	Bracket	£1.09 £0.91
151	HV575 56 22-04 Available to backorder	Front Cover Assy	£39.10 £32.58
152	HV574 37 52-01 Available to backorder	Cover	£6.40 £5.33
153	HV574 72 17-01 Available to backorder	Attachment Plate	£2.99 £2.49
154	HV575 95 57-01 Available to backorder	Screw Itxpant	£1.56 £1.30
243	HV579 30 09-01 Available to backorder	Seal	£25.84 £21.53
261	HV532 43 00-34 Available to backorder	Bracket	£6.04 £5.03
