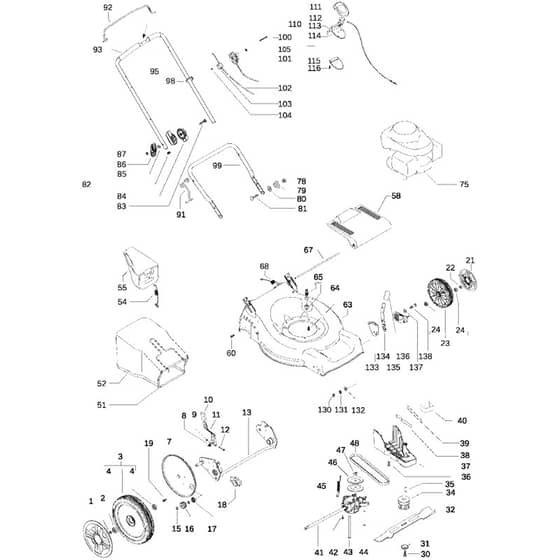

McCulloch M51-135 CMDWA - 966047701 - 2009-09 - Product Complete Parts Diagram

Name: McCulloch M51-135 CMDWA - 966047701 - 2009-09 - Product Complete Parts Diagram
SKU: m51_135_cmdwa_966047701_2009_09_product_complete-group
Price: 0.55 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch M51-135 CMDWA - 966047701 - 2009-09 - Product Complete Parts Diagram

Description

McCulloch M51-135 CMDWA - 966047701 - 2009-09 - Product Complete Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV504 85 78-01 Available to backorder	Nut	£3.62 £3.02
3	HV505 43 60-01 Available to backorder	Wheel Assy	£31.74 £26.45
7	HV504 53 99-01 Available to backorder	Hub Cap	£13.58 £11.32
8	HV583 95 13-02 Available to backorder	Spring	£4.40 £3.67
9	HV531 20 84-92 Available to backorder	Nut	£1.56 £1.30
10	HV574 61 05-01 Available to backorder	Knob	£7.12 £5.93
11	HV525 34 84-02 Available to backorder	Lifting Lever Assy	£19.64 £16.37
12	HV538 23 58-07 Available to backorder	Screw	£2.84 £2.37
16	HV544 34 23-01 Available to backorder	Pinion	£10.80 £9.00
17	HV531 20 87-78 Available to backorder	Bearing	£6.36 £5.30
18	HV531 20 59-44 Available to backorder	Support	£8.40 £7.00
19	HV531 20 78-56 Available to backorder	Screw	£1.56 £1.30
23	HV544 91 73-02 Available to backorder	Wheel Assy	£24.94 £20.78
24	HV538 00 53-62 Available to backorder	Ball Bearing	£6.36 £5.30
30	HV531 20 80-08 Available to backorder	Screw	£6.97 £5.81
32	HV504 11 33-10 In stock	Blade	£33.66 £28.05
34	HV504 59 12-01 Available to backorder	Blade Support	£19.14 £15.95
35	HV504 59 14-01 Available to backorder	Key	£5.56 £4.63
37	HV544 46 23-02 Available to backorder	Belt Guard	£28.38 £23.65
39	HV544 46 25-01 Available to backorder	Wear Protection	£4.96 £4.13
40	HV504 05 66-01 Available to backorder	Protection	£7.86 £6.55
41	HV504 54 14-03 Available to backorder	Gearbox	£121.62 £101.35
42	HV510 03 75-01 Available to backorder	Screw	£1.56 £1.30
43	HV504 10 31-01 Available to backorder	Belt Guide	£10.36 £8.63
44	HV544 93 43-01 Available to backorder	Belt Guide	£8.40 £7.00
45	HV544 93 47-01 Available to backorder	Spring	£4.54 £3.78
46	HV544 44 44-01 Available to backorder	Pulley	£20.16 £16.80
48	HV504 10 33-01 Available to backorder	Belt	£24.40 £20.33
51	HV531 21 32-62 Available to backorder	Bag Frame	£55.32 £46.10
52	HV531 21 32-64 Available to backorder	Grass Catcher	£52.02 £43.35
54	HV531 21 11-91 Available to backorder	Spring	£5.82 £4.85
58	HV531 21 38-91 Available to backorder	Deflector	£53.28 £44.40
60	HV531 20 66-77 Available to backorder	Screw	£1.82 £1.52
64	HV532 15 04-06 Available to backorder	Screw	£5.06 £4.22
65	HV531 20 58-48 Available to backorder	Connector	£9.72 £8.10
67	HV531 20 50-60 Available to backorder	Shaft	£19.42 £16.18
68	HV531 20 59-99 Available to backorder	Spring	£4.26 £3.55
78	HV531 20 79-82 Available to backorder	Nut	£2.72 £2.27
79	HV531 20 49-23 Available to backorder	Wing Nut	£4.14 £3.45
80	HV531 20 49-22 Available to backorder	Washer	£2.58 £2.15
81	HV531 20 49-21 Available to backorder	Screw	£5.04 £4.20
82	HV531 20 89-50 Available to backorder	Plug	£1.04 £0.87
84	HV531 20 58-39 Available to backorder	Knob	£12.28 £10.23
86	HV531 20 58-40 Available to backorder	Knob	£9.72 £8.10
91	HV531 20 51-69 Available to backorder	Pin Retaining Screw	£2.72 £2.27
92	HV544 46 38-04 Available to backorder	Operator-Presence Control	£28.46 £23.72
93	HV544 91 34-01 Available to backorder	Tube	£5.38 £4.48
98	HV531 20 55-81 Available to backorder	Clip	£0.66 £0.55
102	HV582 19 21-02 Available to backorder	Brake Wire	£25.68 £21.40
103	HV531 20 80-43 Available to backorder	Bracket	£1.26 £1.05
104	HV531 20 52-13 Available to backorder	Nut	£1.82 £1.52
105	HV531 20 66-66 Available to backorder	Washer	£2.06 £1.72
110	HV544 93 29-07 Available to backorder	Control	£84.76 £70.63
111	HV532 41 35-42 Available to backorder	Cover	£23.28 £19.40
113	HV505 53 12-01 Available to backorder	Lever	£16.82 £14.02
114	HV532 41 35-41 Available to backorder	Cover	£19.40 £16.17
115	HV532 40 07-23 Available to backorder	Bracket	£18.12 £15.10
116	HV532 18 16-98 Available to backorder	Screw	£1.82 £1.52
130	HV531 20 79-78 Available to backorder	Nut	£3.62 £3.02
131	HV531 20 89-74 Available to backorder	Washer	£2.34 £1.95
132	HV531 20 79-89 Available to backorder	Washer	£5.06 £4.22
133	HV574 41 32-09 Available to backorder	Bracket	£4.98 £4.15
134	HV544 45 25-01 Available to backorder	Lever	£9.06 £7.55
137	HV531 20 60-20 Available to backorder	Washer	£2.08 £1.73
138	HV531 20 49-12 Available to backorder	Screw	£7.12 £5.93
